HDPE PP plastic containers washing recycling machine

Supplier: Jiangsu Mooge Machine Co., Ltd
Region: Jiangsu, China
Contact: Mr Michael Huang
Price: $93000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Final flake size:	12-14mm;	Material of washing part:	Stainless steel or Carbon steel;
Condition:	New;	Application:	PP PE HDPE Washing recycling;
Power(W):	100-350kw;	Inverter:	Delta or ABB;
Production Capacity (kg/h):	500;	Applicable Industries:	Waste plastic recycling machinery;
Color:	Customized;	Supply Ability:	6 Set/Sets per Month;
Warranty:	12 Months;	Heating way:	electricity, steam or source;
Port:	Shanghai sea port;	Automatic Grade:	Automatic;
Power (kW):	200;	Key Selling Points:	High Productivity;
Weight (T):	15;	After-sales Service Provided:	Field installation, commissioning and training;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Speed Control:	Inverter control;
Dimension(LWH):	62m x 5m x 4.5m;	Motor brand:	Simens or customized;
Voltage:	Customized;	Certification:	CE ISO SGS;
Place of Origin:	China;	Brand Name:	MOOGE;
Moisture content:	<1.5;	Packaging Detail:	Standard export packaging;

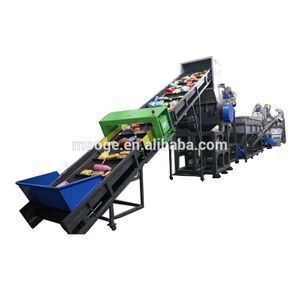

HDPE PP plastic containers washing and recycling machine
This washing recycling machine is used trecycling the waste HDPE/LDPE/PP/PE bottles, and buckets, hollow containers and so on. which can be used to make granules directly or some other use. The whole line is full automatic and of high effciency. Low noise and easy operation.

Remark:
1- we can supply 300kg/h,500kg/h and 1000kg/h,u can choose the suitable one what u real need.
2-According to your material you can choose different machine.
3- We can customize make the line according to your workshop.
4- We can also provide granulating line

Components List of the HDPE bottle recycling line:

S/N	Item Name	Function/Remark
1	Conveyor Belt	Feeding material
2	Wet Crusher	Crushing the material into small size
3	Friction Washing loader Machine	Washing out the sand, soil and loading the material
4	1^stFloating Washing Tank	Floating washing separate the sand,soil and other dirties
5	Screw loader	Loading up material to next process
6	High speed friction washer	Remove the humidity from the flakes
7	2^ndFloating Washing Tank	Floating washing separate the sand,soil and other dirties
8	Screw loader	Loading material and drain out water from material
9	Horizontal dewatering machine	Remove the humidity from the flakes
10	Hot air drying system	Drying the flakes
11	Collecting Silo	Collecting material
12	Electricity Control box	Control the line on/off
13	Free Spare Parts

Technical Date

Model	Capacity	Installed Power	Hot Washing	Water Supply	Man Power	Area Required
MEB-300	300kg/hr	90kW	Optional	4-5 m3/hr	1-2	22m5m3.5m
MEB-500	500kg/hr	115kW	Optional	5-6 m3/hr	2-3	25m6m5.5m
MEB-1000	1000kg/hr	215kW	Optional	7-8 m3/hr	4-5	35m6m5.5m
