PP PE plastic film/bag horizontal dewtaering machine

Supplier: Jiangsu Mooge Machine Co., Ltd
Region: Jiangsu, China
Contact: Mr Michael Huang
Price: $11000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Rotation speed:	1500RPM;	Brand Name:	MOOGE Tech;
Certification:	CE ISO SGS;	Material of Washing Part:	Stainless Steel;
Applicable Industries:	Manufacturing Plant;	Motor brand:	Simens or customized;
After-sales Service Provided:	Field installation, commissioning and training;	Moisture Content Remain:	5%;
Port:	Shanghai seaport;	Packaging Detail:	Stretch film and wooden case as international sea shipment standards;
Dimension(LWH):	according to model;	Condition:	New;
Warranty:	1 Year;	Color:	Client's Requirements;
Key Selling Points:	High Productivity;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Bearing brand:	SKF/NSK/HRB or Customized;	Supply Ability:	50 Set/Sets per Month hdpe/ldpe film dewatering drying machine;
Place of Origin:	Jiangsu China;	Screen diameter:	3mm;
Rotor Blade Thickness:	10mm for Long Time Service;	HS Code:	84778000;
Feature1:	With water to cool the bearing house;

Product Description

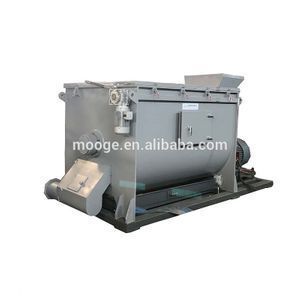

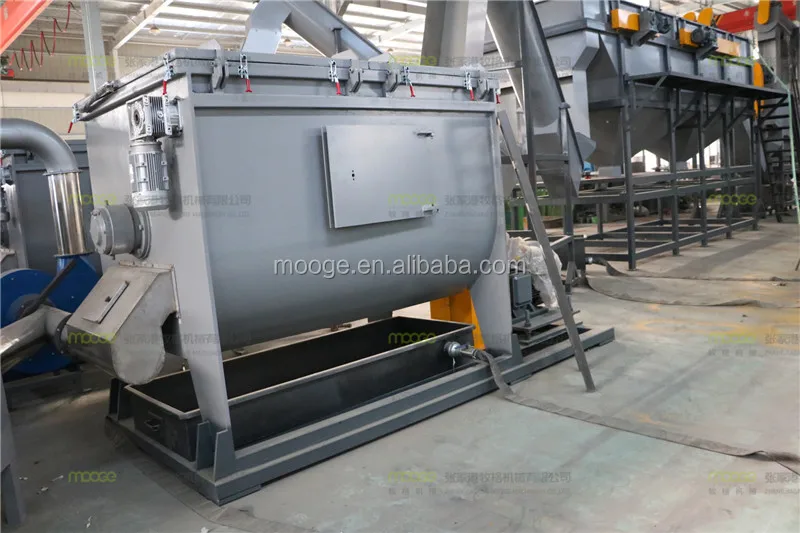

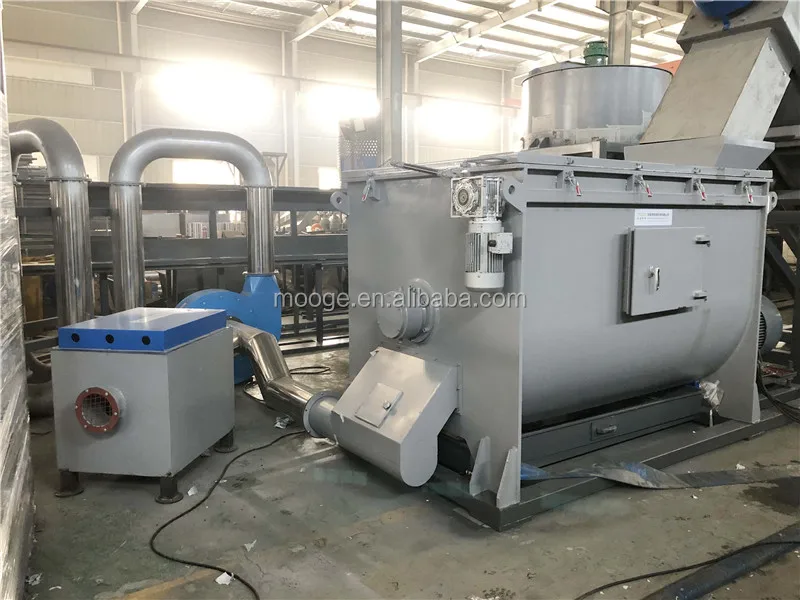

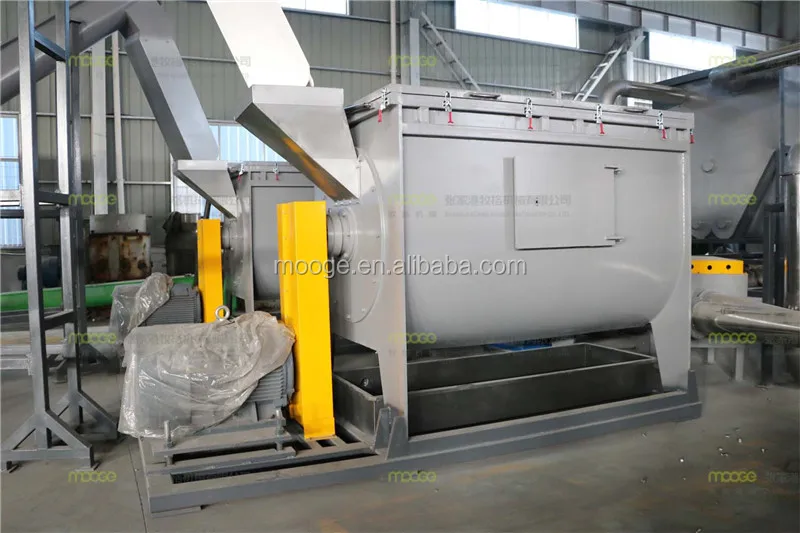

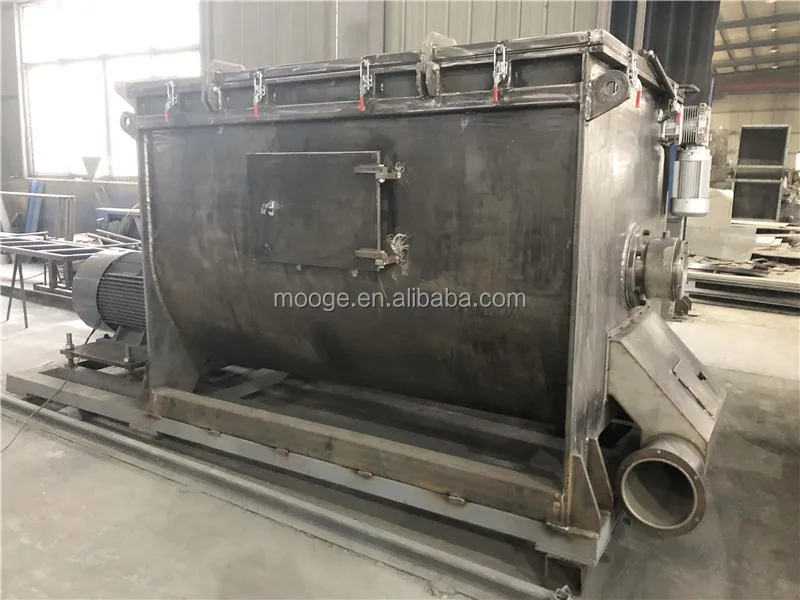

PP PE plastic film/bag horizontal dewtaering machine

This plastic film/bag centrifugal dryer machine is designed and manufactured by Mooge which is mainly used for drying the washed soft plastic material such as PP woven bags or PE PP film.

* It can also be used for rigid plastic recycling line with high rotary speed to dry the material with good effect.

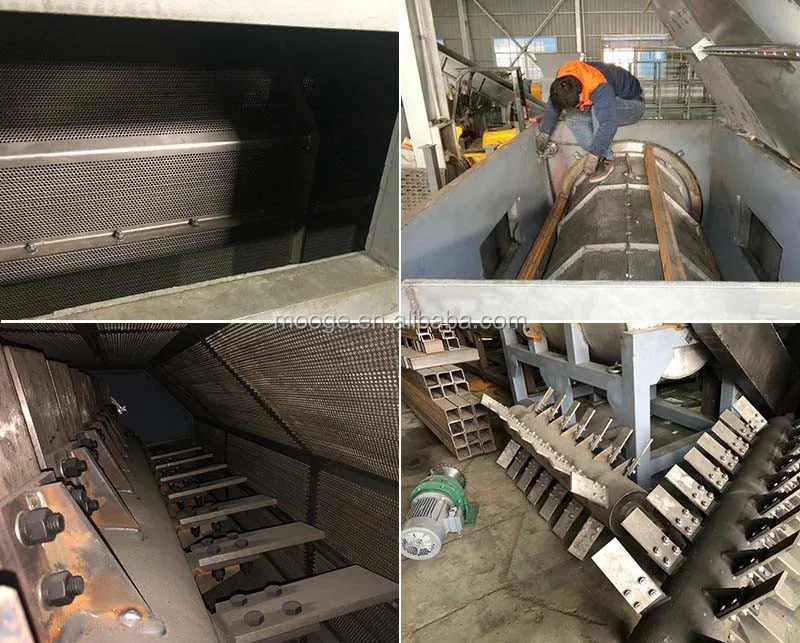

* This plastic bag centrifugal dryer machine is actually very similar to the high speed friction washer machine. A long shaft is mounted on the center of the dewatering machine with many paddles and panels. Surrounding the shaft is a mesh screen drum, and the entire parts are encased in a steel container while an electric motor is mounted.

When the material is fed into the dewatering machine, the shaft with about 1500 rpm throws the material outwards against the mesh screen. Water will be removed and the material will go to next step.

* It is one of the most important and necessary machines in waste plastic recycling washing line.

Features:

(1) Equipped with automatic cleaning device to drive the brush rolling and cleaning inner screen with spray, realize non-stop running for a long time.

(2) High rotary speed reach 1500 rpm can remove 95%-98% of humidity in washed material.

(3) The parts of dewatering machine (centrifugal dryer) that contact the material are made of stainless steel.

(4) Bearing house with water cooling system protecting for long lifespan.

(5) Bottom with drainage system for drain out the dirty water.

Main Parameters:

Model	DM-300	DM-500	DM-1000
Power	55kw	90kw	110kw
Capacity	300kg/hr	500kg/hr	1000kg/hr
Rotor Speed	1500RPM	1500RPM	1500RPM
Rotor diameter	650mm	850mm	950mm
Screen mesh	3mm	3mm	3mm
Moisture content	5~8%	5~8%	5~8%
Screen brushing power(KW)	1.5kw	1.5kw	1.5kw

Packaging & Shipping

• For the loose cargo we will packing by wooden box

• For the full container loading we are packing the machine by film and some on pallet accordingly
• We can shipping the goods by air or by sea
• We will send pictures of cargo loading to our client to check and keep recording
• We can send cargo to client’s warehouse to loading

Our Services

• Pre-sale: we given client the details technician offer, sign the sales contract etc.

• In-sales: we supply the details layout, installation instruction, technician support for the clients.
• After sales: we arrange engineer to install the machinery and training the workers for client.
• We have 24hours team to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
