Good Price PET Strap making machine / PET Strap production line

Supplier: Jiangsu Mooge Machine Co., Ltd
Region: Jiangsu, China
Contact: Mr Michael Huang
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Mold:	Single or Double Strap Type;	Supply Ability:	30 Set/Sets per Month;
Dryer system:	1 set;	Brand Name:	MOOGE;
Power(W):	85~220kw;	Chiller machine:	Option;
After-sales Service Provided:	Engineers available to service machinery overseas;	Strap size:	9~19mm;
Payment Terms:	L/C,T/T,Western Union;	Place of Origin:	Jiangsu China (Mainland);
Embossing machine:	Option;	Certification:	CE ISO SGS;
Crystallization dryer system:	Option;	Port:	shanghai;
Extruder Screw material:	38Crmoala;	Packaging Detail:	Standard export packaging for PET Strap production line;
Control System:	Siemens PLC;	Screw Design:	Single-screw;

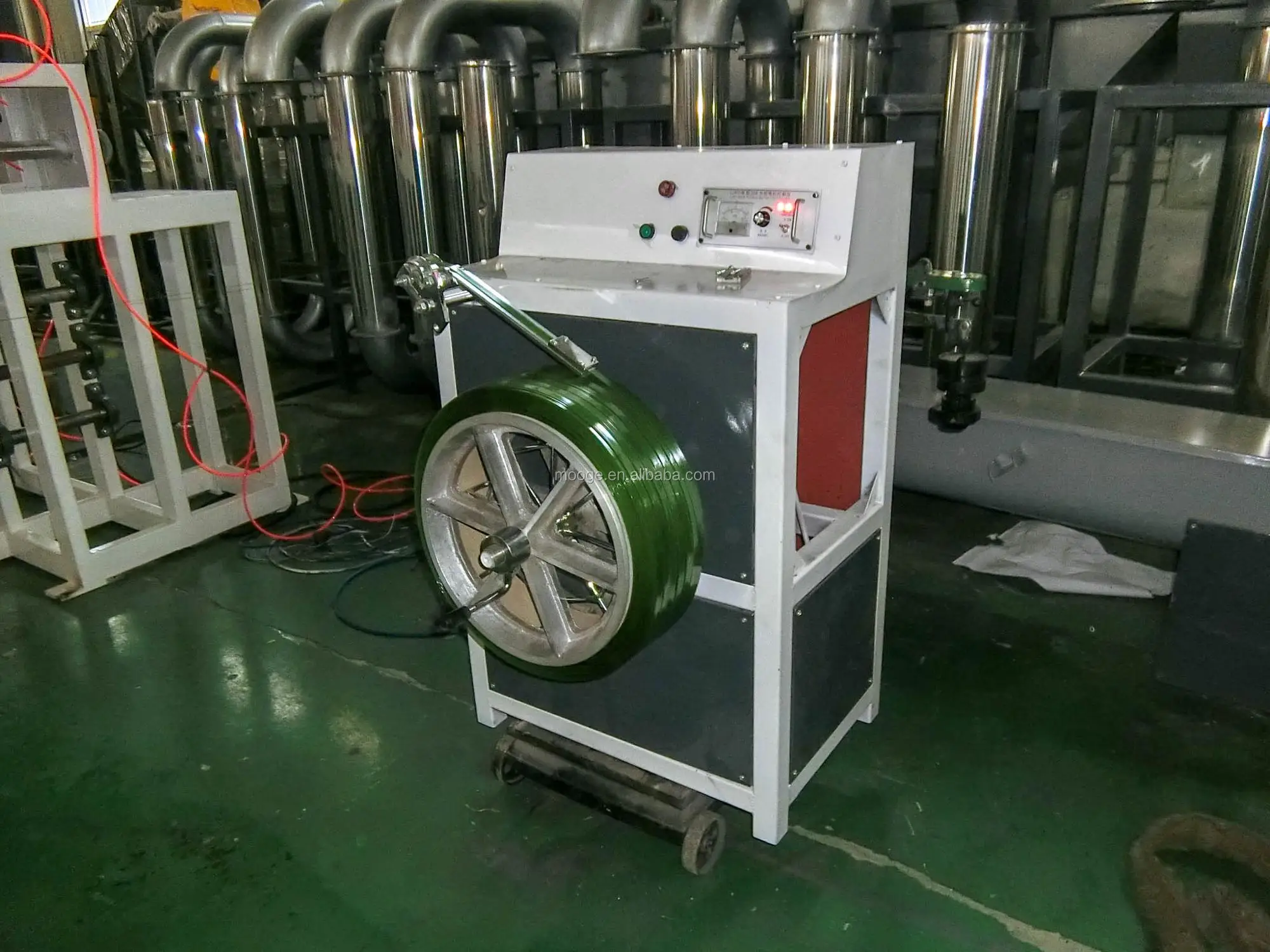

Strap winder machine:	Single disk or double disk;	Weight:	According to model;
Plastic Processed:	PET bottle flakes;	Delivery Detail:	50~60 days for PET Strap production line;
Application:	packaging;	Condition:	New;
Dimension(LWH):	according to model;	Manpower:	1~2;
Automatic Grade:	Automatic;	Model Number:	SJ;
Voltage:	380V 50HZ;

Product Description

This machine is main used to make pet strap ,pet packing strap .

Adopt the plc control the whole line do the auotmatic production

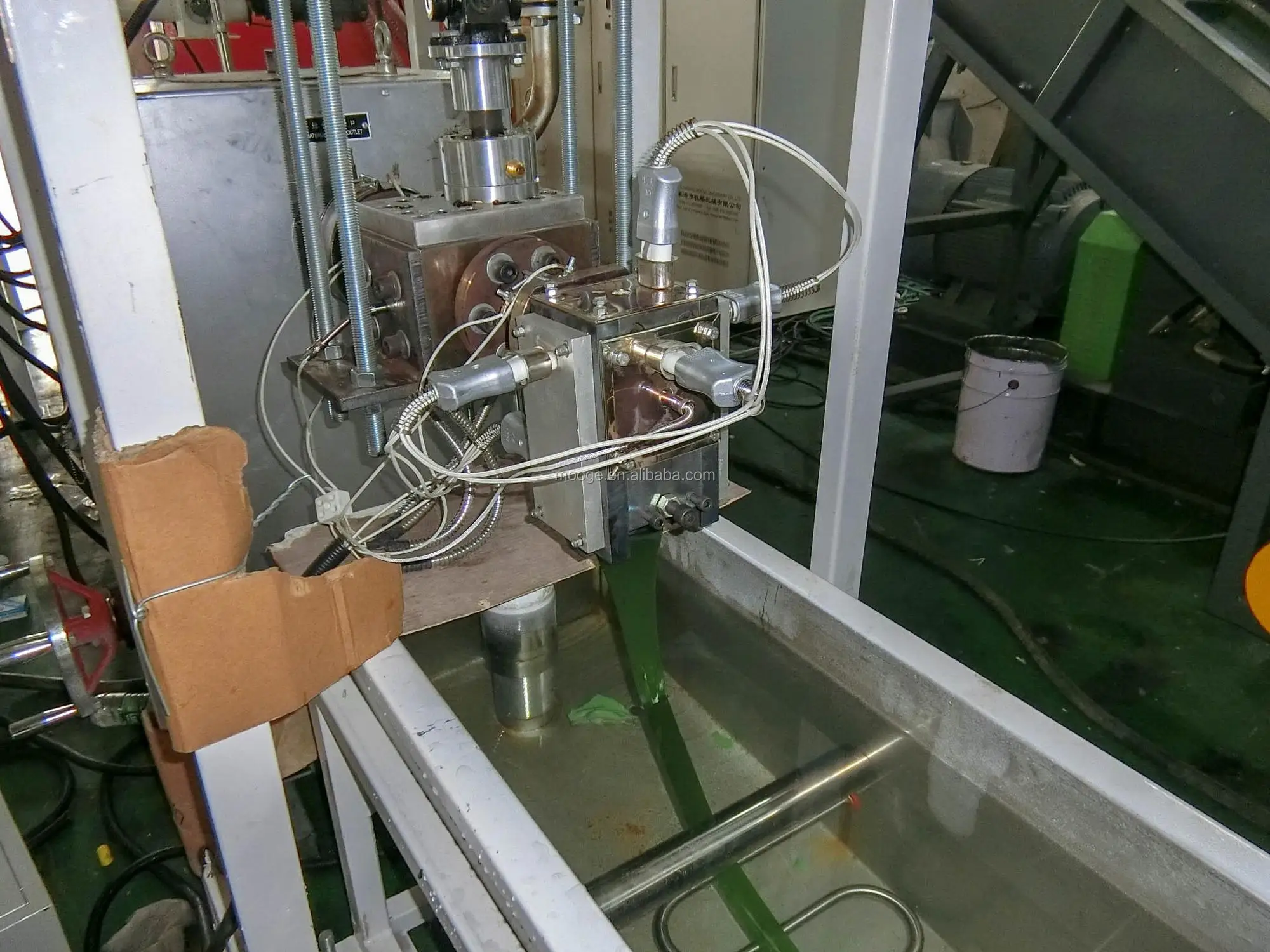

it use the melting pump and pressure sensor ensure the production stable and strap quality control

The raw material you can use is 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other.

Advantage:

1.Use 100% Recycled PET Flakes to reduce the cost

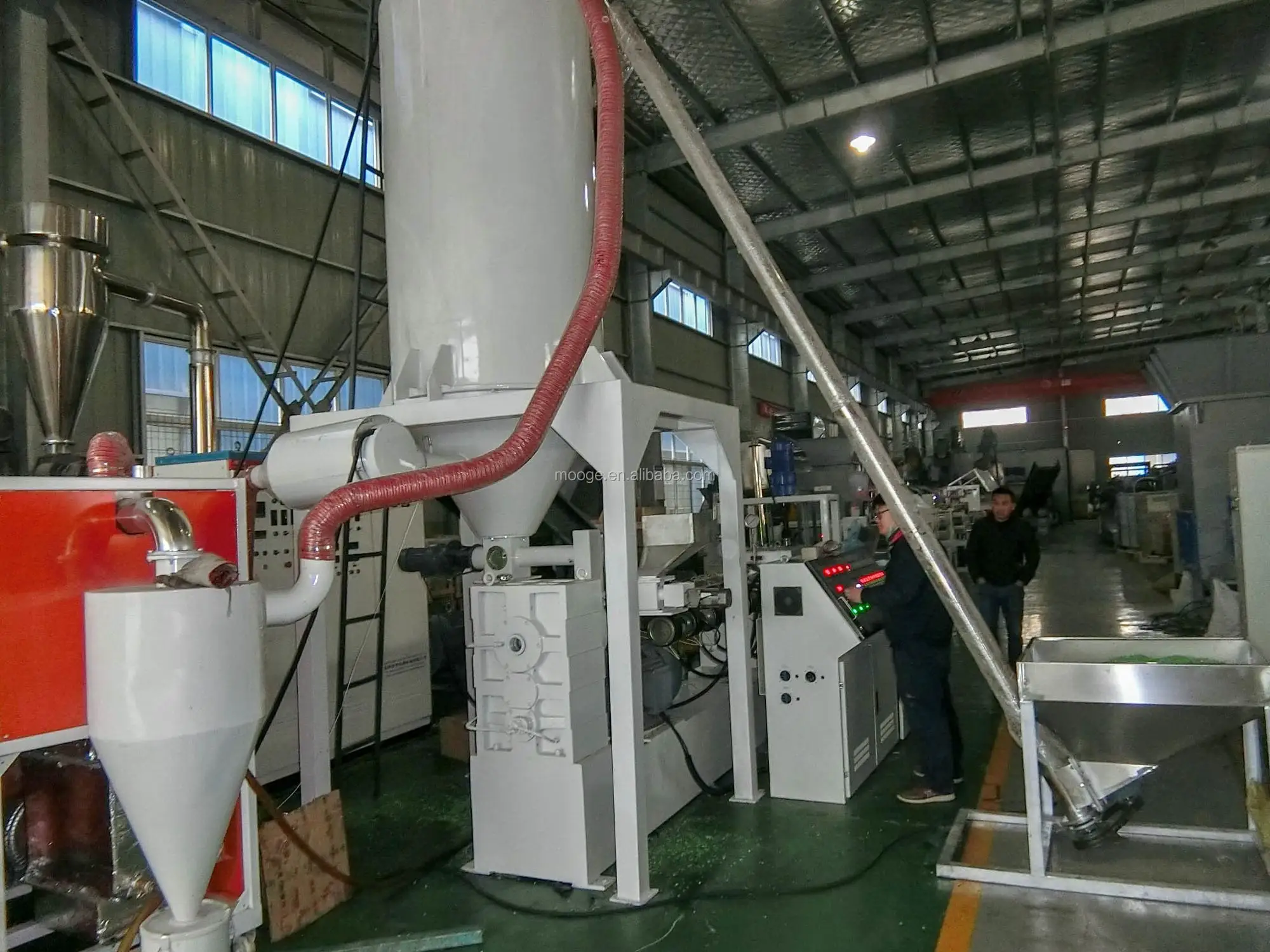

2.Good dehumidifer drying system(Crystallization system optional ) to ensure the material equal dryer to produce high quality strapping

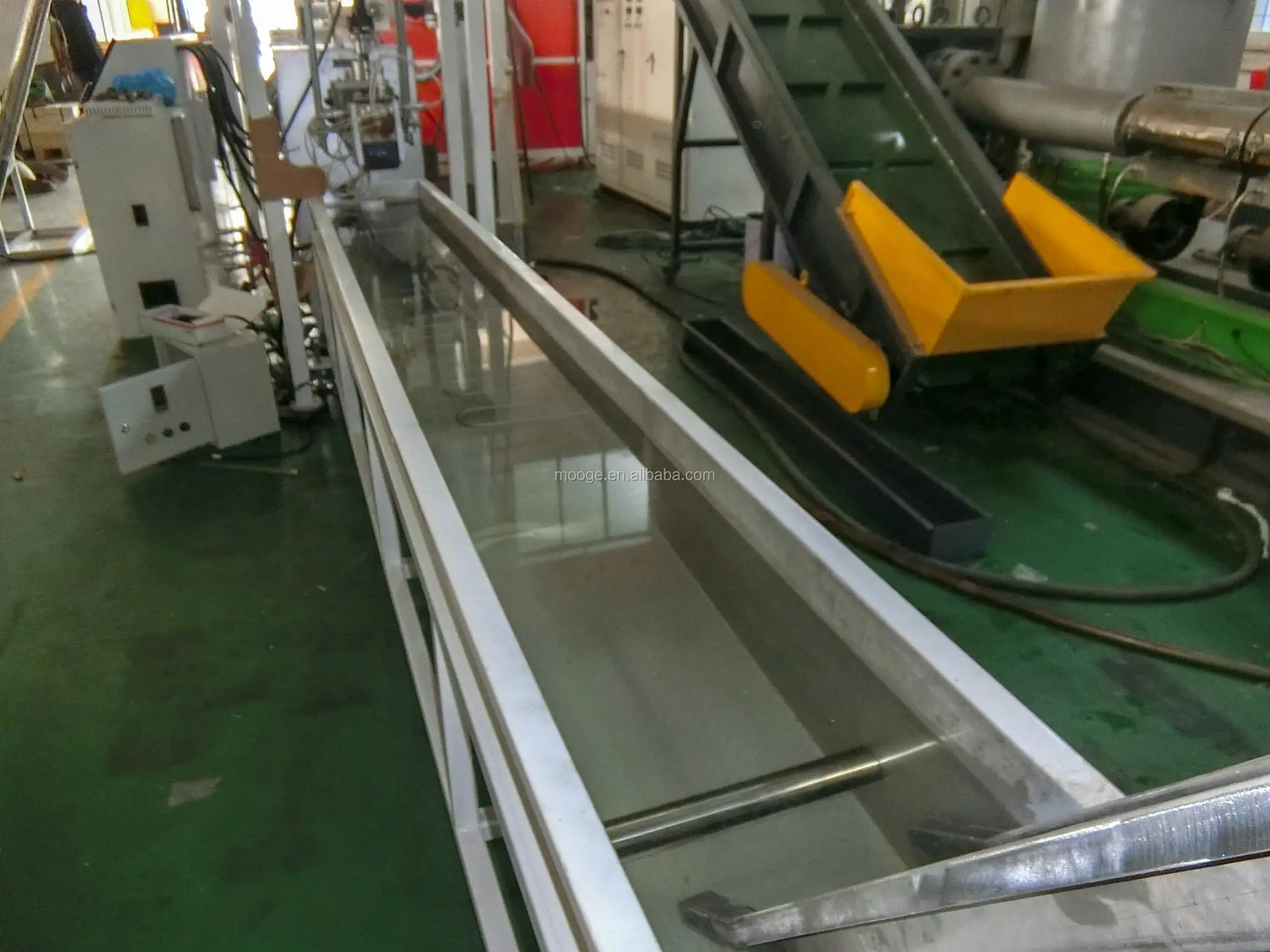

3.Special design hot forming tensile tank to make good forming ,equal width,straight strap

Machine parameter

Model	Capacity (kg/h )	Strap size (mm)	Installed Power (KW)	Manpower	Machine size （LWH m）
SJ65/33 Single strap	50~60	9~19	85	1~2	3545
SJ75/33 Single strap	80~100	9~19	100	1~2	3846
SJ75/33 Double strap	80~120	9~19	110	1~2	4046
SJ90/33 Double strap	120~150	9~19	150	1~2	4557
SJ120/33 Double strap	150~200	9~19	220	1~2	4557

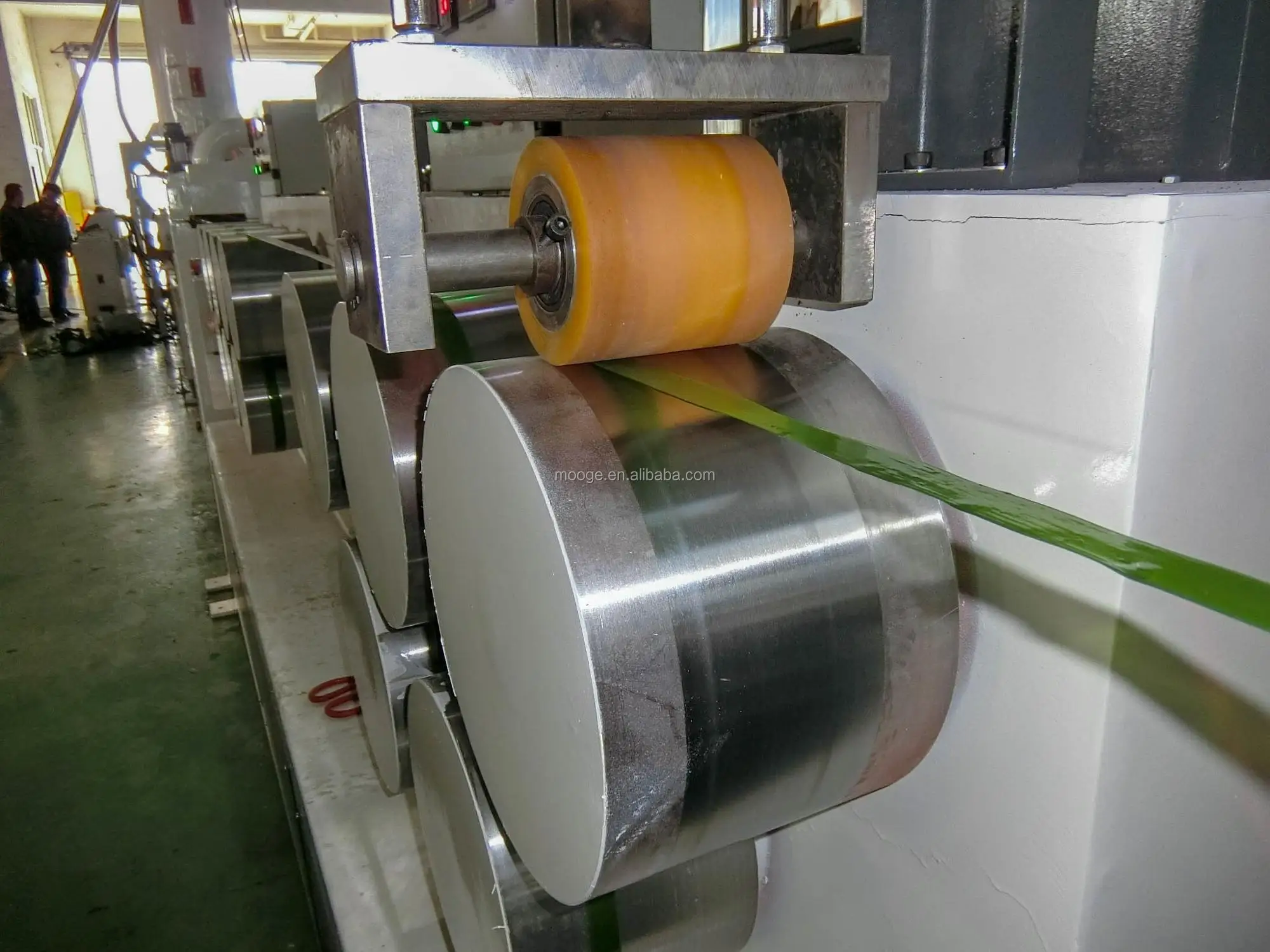

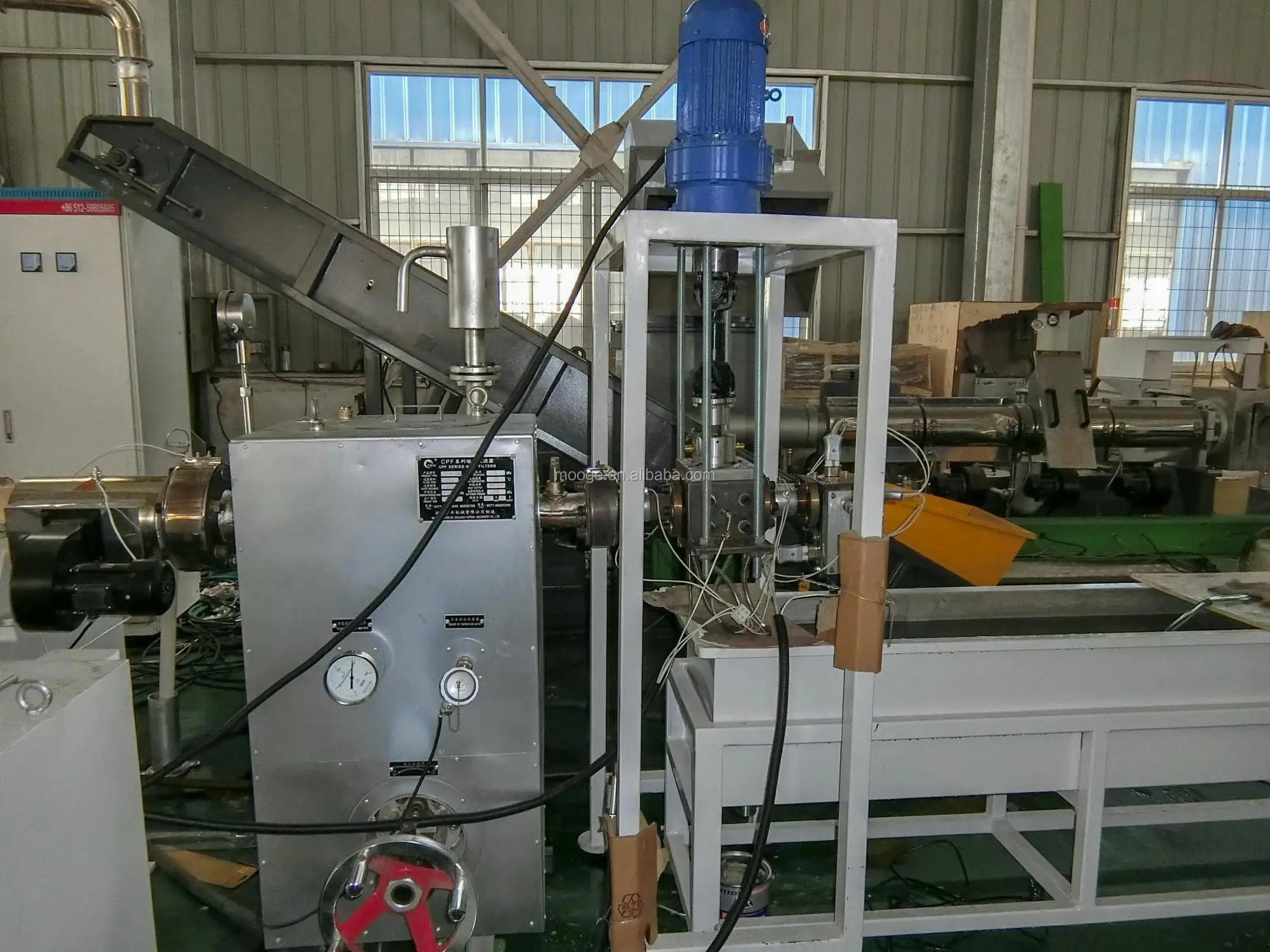

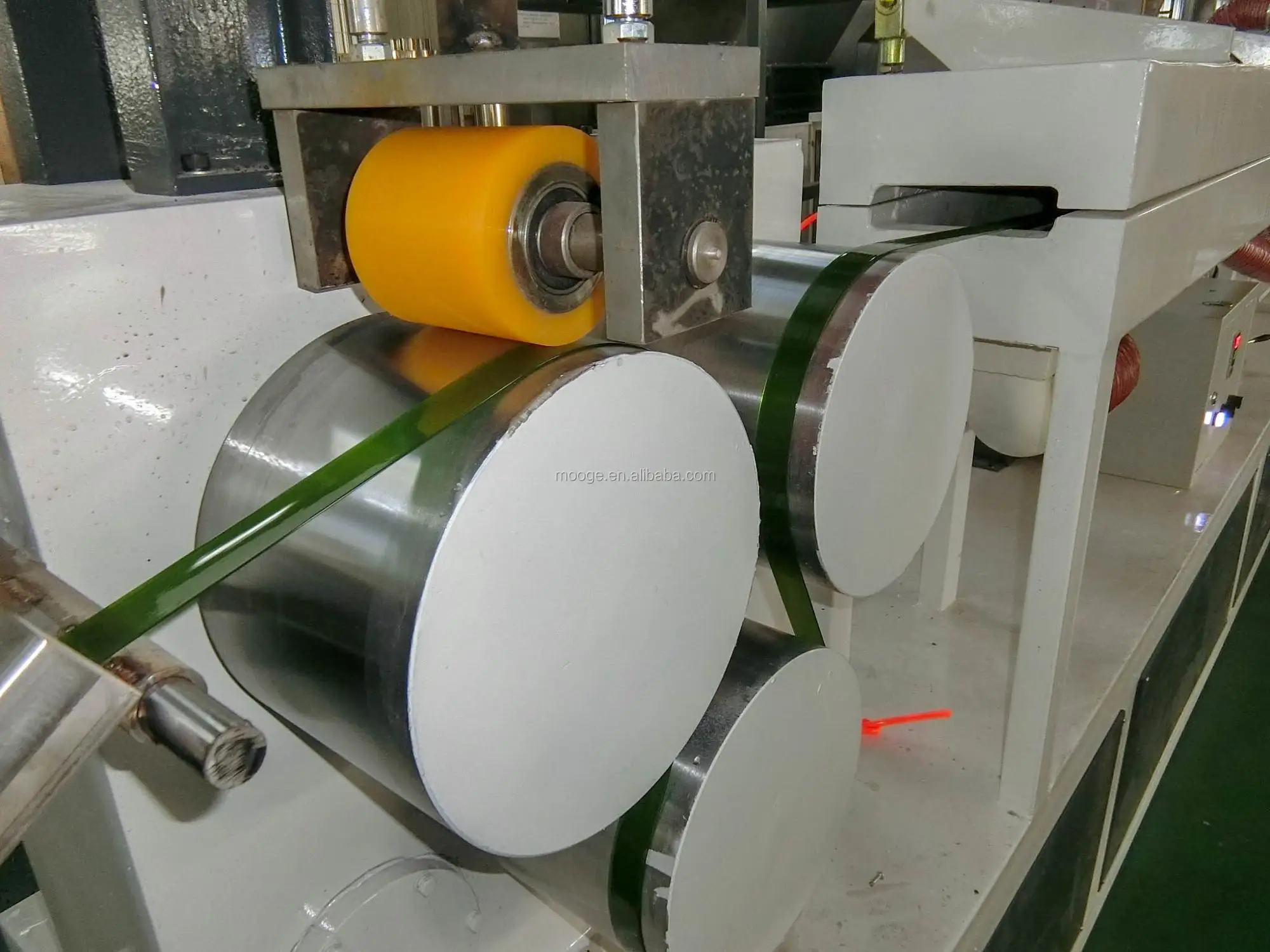

Detailed Images

Related Products

We also supply pet bottle flakes recycling machine.

we supply 500~5000kg/h or customzied the capacity

Model	Capacity (KG/H)	Installed Power (kw)	waster supply (CBM/H)	Machine size (LWH m)
MT-500	500	210	2~3	5854.2
MT-1000	1000	320	4~5	6254.5
MT-2000	2000	445	8~10	8065
MT-3000	3000	500	10~15	12566.5
MT-4000	4000	600	15~20	12566.5
MT-5000	5000	650	15~20	12566.5

Our Company

Our Service

1.Pre-sale: we given client the details technician offer, sign the sales contract etc.
2.In-sales: we supply the details layout, installation instruction, technician support for the clients.
3.After sales: we arrange engineer to install the machinery and training the workers for client.
4.We have 24hours team to solve the after sales problem.
5.We have free spare parts with the machine.
6.We supply long term spare parts for every customer.
7.We always update the new technology to every customer.
