Product Details

Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Brand Name:	LONGWELL;
Type:	Centrifugal Fan;	Motor type:	external rotor motor;
After-sales Service Provided:	Overseas service center available;	Supply Ability:	100000 Piece/Pieces per Month;
Warranty:	1 year;	Packaging Detail:	High strength cartons with polyfoam , and packed on pallet .;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PAYPAL;	Approvals:	CE,CCC;
Amb,Temp:	-20 to +60℃;	Voltage:	115v /220v/24V/48V;
Place of Origin:	China;	Impeller material:	Propylene with glass fiber reinforced;
Blade Material:	Plastic;	Port:	NINGBO/SHANGHAI;
Direction:	Clockwise;	Bearing:	Ball Bearing;
Certification:	CCC,CE,CSA,ROHS,UL,Other;	Insulation:	B/F;
After-sales Service Provided:	Online support;	power input:	115v /220v/24V/48V;
Mounting:	Free Standing;	Type:	backward curved centrifugal fan;

Product Overview

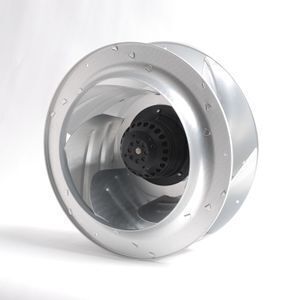

>> Backward / Forward Curved Centrifugal Fan with AC / DC / EC external brushless Motor

Mainly used in grain drying and and greenhouse ventilation. These are also common in air pollution control as well as heating, ventilation and air conditioning (HVAC) systems.
EC backward curved motorized EC impeller is a superbly crafted, precision balanced air-moving device that features superior performance and compact design.
By combining the efficiency of a backward curved centrifugal impeller with the advanced technology of an electronically commutated external rotor motor, new standards for energy savings and performance have been achieved.

Specifications :

Sizes	133mm - 630mm (or Customized)
Voltage	AC Input: 210v,220v,230v,380v,400v DC Input: 12v,24v,48v EC Input: 210v,220v,230v,380v,400v (or Customzied)
Power	Up to 2300W (or Customized)
Speed	Up to 4000RPM (or Customized)
Air Flow	Up to 8000m³/h (or Customized)
Impeller Material	Plastic / Aluminum Alloy / Galvanized Metal
Speed control	Speed Controller (AC) or PWM/0 - 10V Input (DC EC)
Storage Temp	-20 ℃ ~ + 70℃
Operating Temp	-25℃ ~ + 60℃
Wire Diagram	Contact us for details

General Characters ( Only EC / DC, not suitable for AC motor fan ) :

Life Expectance	50,000Hours(L10) At 40℃ room, humidity 15%~65%RH.
Direction of Rotation	Anti-clockwise seen on rotor
Direction of Air Flow	All around
Insulation Class	Class B
Insulation Resistance	50 Mega Ohm minimum at 1000VDC Between frame and (+) terminal
Motor Protection	Locked rotor protection; Polarity protection; Automatic restart capability.
Speed Control	Control input 0~10VDC / PWM
Protection Type	IP44
Voltage Output	+10VDC (Can be used as speed control input voltage or FG signal pull-up voltage,and need to be circumscribed in series with a pull –up resister, details as connection diagram.)
Dielectric Strength	10mA maximum at 1500VAC 50Hz five second Between frame and (+) terminal
Signal Output	FG (Frequency Generator)

Product Application

Application :

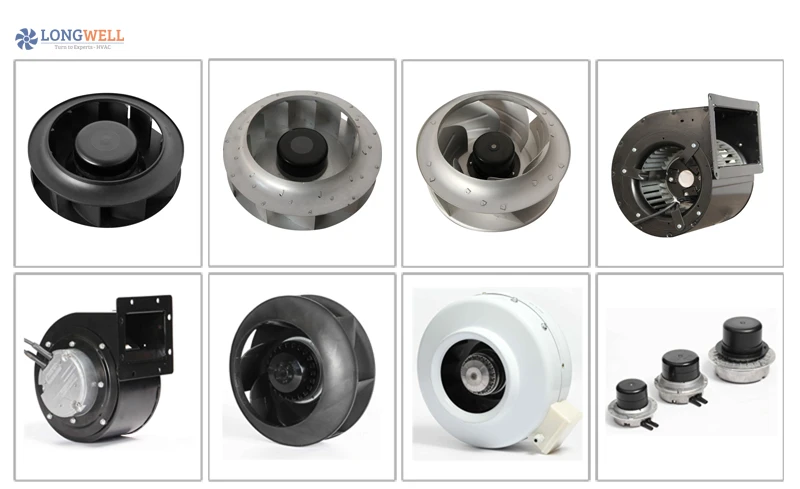

Our range of small ,midium and large sized centrifugal fans are suitable for many areas . Include but limited to :

Buying Guides

Packaging & Shipping

Shippment and Delivery :

Sample :7~10 days ;
Bulk order : 18~23 days after receiving order information .
Package : Standard exporting package , carton with pallet . ( package can be customized )
Shippment : Air express ,sea shippment , EXW ,LCL ,etc all available .
