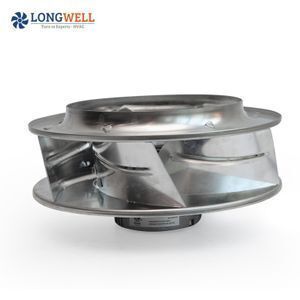

355mm EC high quality PWM speed control ECM motor 3000cfm continuously Speed exhaust fan 3 phase centrifugal fan
- 10.00 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Voltage: | 220V; | Blade Material: | Stainless Steel; |
| After-sales Service Provided: | Video technical support; | Brand Name: | LONGWELL; |
| Place of Origin: | Zhejiang China; | Electric Current Type: | AC; |
| Application: | HVAC,air purifier , AHU; | Model Number: | LWBE3G355; |
| Mounting: | FREE STANDING; | Amb,Temp: | -25 to +60℃; |
| Customized support: | OEM,ODM,OBM; | Impeller material: | Aluminum alloy; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,PAYPAL; | Warranty: | 1 Year; |
| Approvals: | CE,CCC; | Package Preview: | ; |
| Port: | NINGBO OR SHANGHAI; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company; |
| Packaging Detail: | High strength cartons with polyfoam , and packed on pallet .; | Certification: | ce,CCC,RoHS,Other; |
| Protection: | Tech out put /Over voltage protection /Over loading protection; | Supply Ability: | 100000 Piece/Pieces per Month; |
| Bearing: | Ball Bearing; | Type: | centrifugal fan,Radial Fan; |
| power input: | 115V/220V/380V; | Direction: | Clockwise; |
| Motor type: | EC external rotor motor; |
355mm EC high quality PWM speed control ECM motor 3000cfm continuously Speed exhaust fan 3 phase centrifugal fan

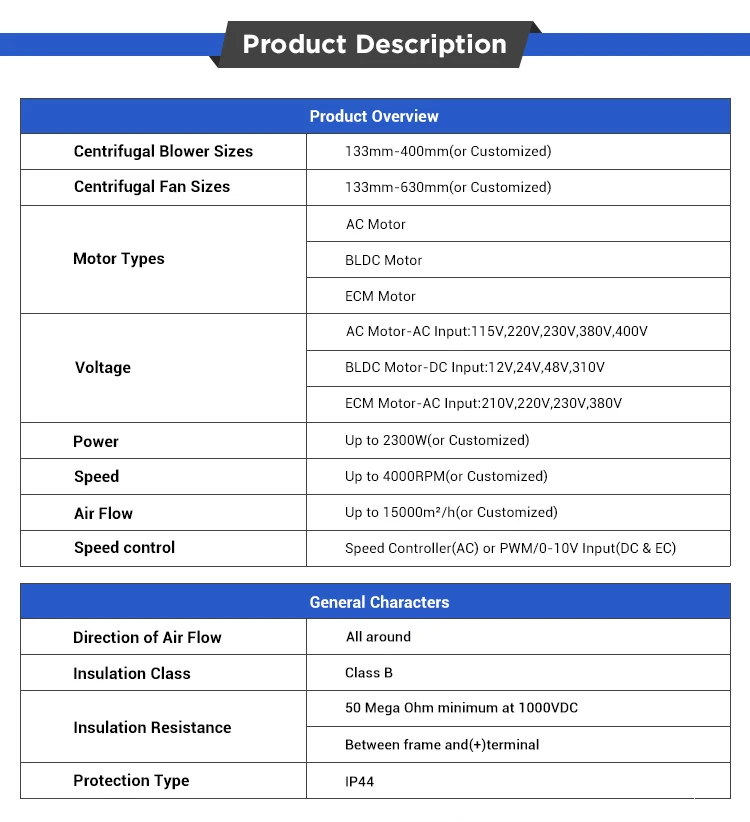

Product Description

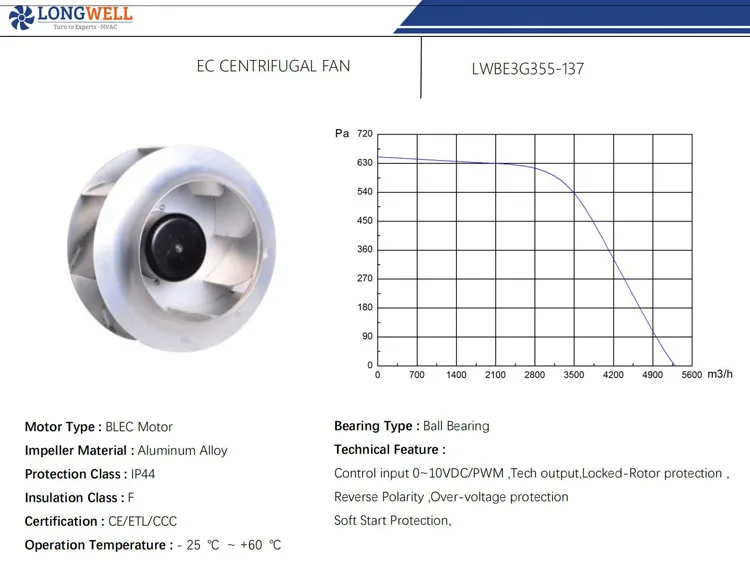

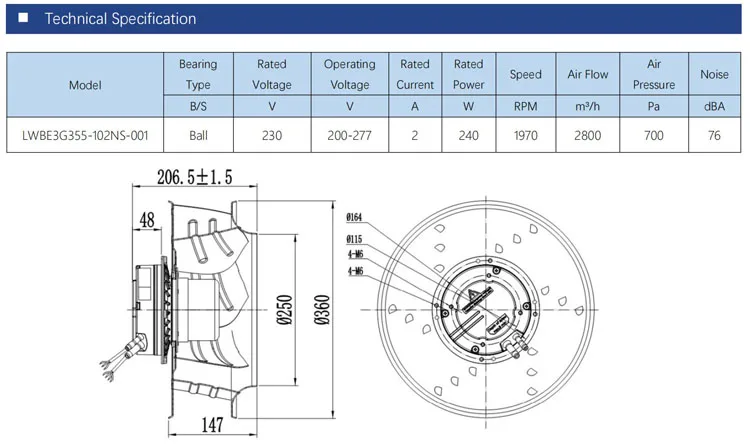

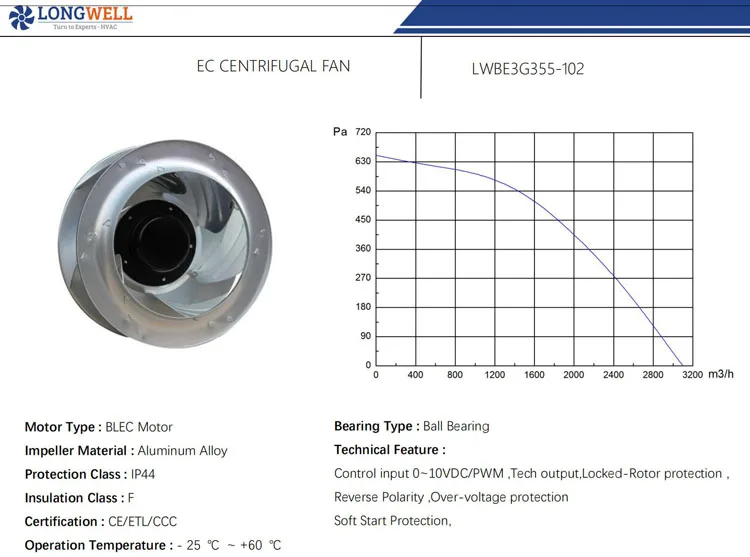

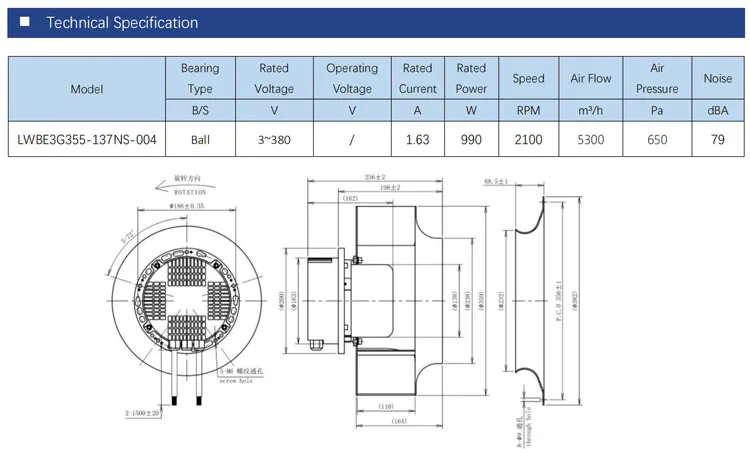

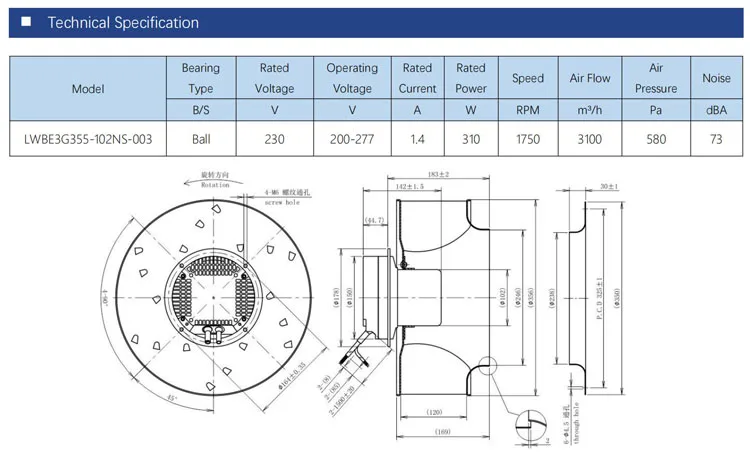

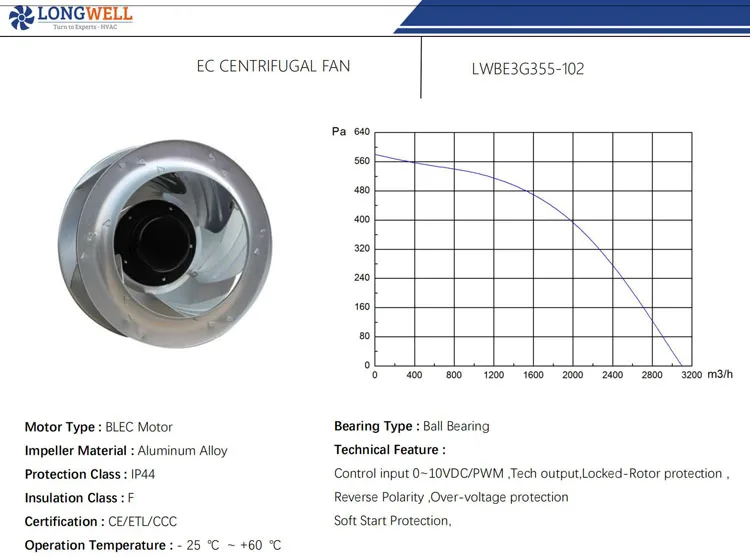

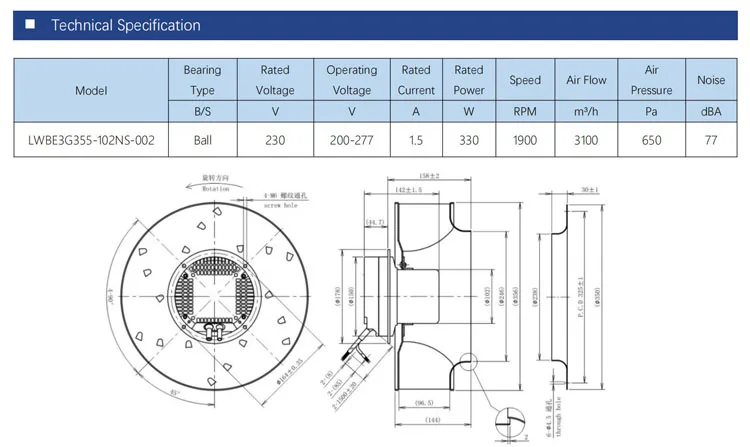

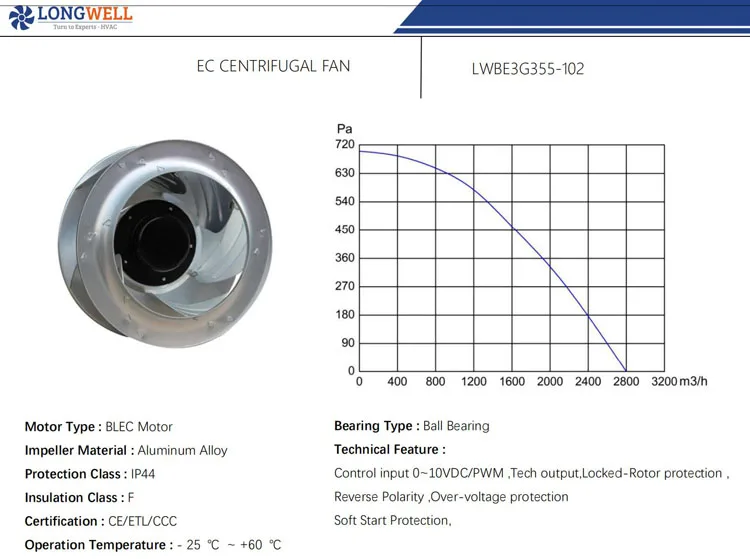

| Model Number : | LWEC -355mm EC backward curved centrifugal fan | ||
| Motor Type : | BLEC External rotor motor | Blade Material : | Aluminum Alloy |
| Operation Model : | S1 | Insulation Class : | IP 44 |
| Speed control: | PWM / 0~10V | Insulation Class: | F |
| Operation Temperature : | -25 ℃ ~ +60 ℃ | ||
Custom Service
Product Application
Certifications

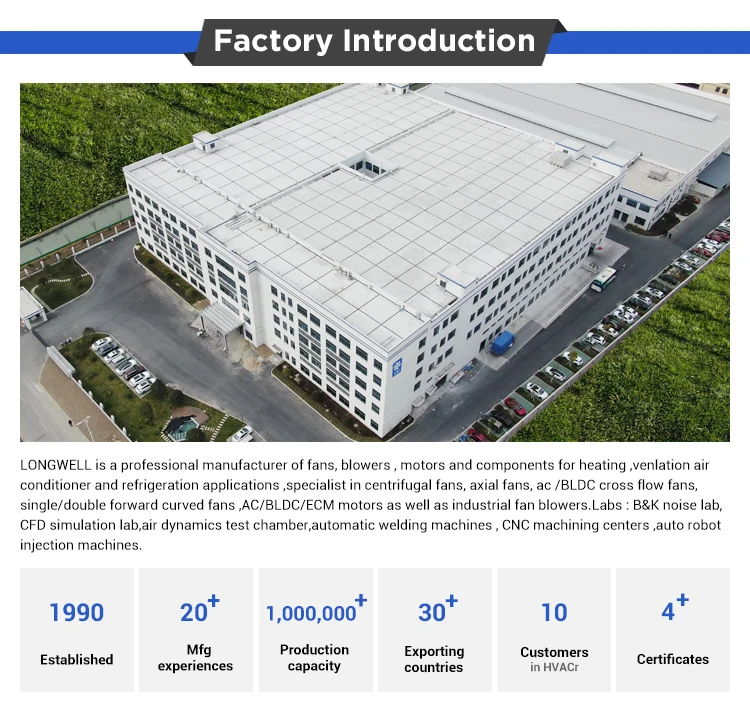

Company Information
Contact information
Buying Guides
FAQ
