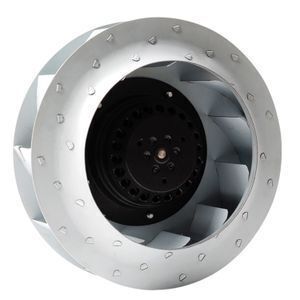

AC 110V 220V DC 12V 24V backward curved centrifugal blower fan radial bidirectional oven fan industrial ventilation fan

Product details
Insulation:B/F;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,farms,restaurant,HOME USE,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
After-sales Service Provided:Online support,Overseas service center available;Approvals:CE,CCC;
Mounting:Duct Fan;Certification:ce,CCC,UL;
Amb,Temp:-20 to +60℃;Type:Radial Fan,12V dc blower fan;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PAYPAL;Port:Ningbo/Shanghai;
Packaging Detail:High strength cartons with polyfoam , and packed on pallet .;power input:DC 12/24/48V;
Warranty:1 YEAR;Brand Name:Longwell;
Application:HVAC,FCU,FFU;Blade Material:aluminum alloy;
Motor type:DC external rotor motor;Supply Ability:100000 Piece/Pieces per Month;
Bearing:Ball Bearing;Impeller material:Propylene with glass fiber reinforced;
Electric Current Type:AC/DC/EC;Place of Origin:China;

Product Overview





Product Overview



Centrifugal Blower Sizes

133mm - 400mm (or Customized)

Centrifugal Fan Sizes133mm - 630mm (or Customized)

Voltage

AC Input: 210v,220v,230v,380v,400v

DC Input: 12v,24v,48v

EC Input: 210v,220v,230v,380v,400v (or Customzied)

Power

Up to 2300W (or Customized)

SpeedUp to 4000RPM (or Customized)
Air FlowUp to 8000m³/h (or Customized)
Speed control Speed Controller (AC) or PWM/0 - 10V Input (DC EC)
Product Description

 General Characters

1Life Expectance

50,000Hours(L10)

At 40℃ room, humidity 15%~65%RH.
2Direction of Rotation

Anti-clockwise

seen on motor
3Direction of Air FlowAll around
4Insulation ClassClass B
5Insulation Resistance

50 Mega Ohm minimum at 1000VDC

Between frame and (+) terminal
6Motor Protection

Locked rotor protection

Polarity protection

Automatic restart capability
7Speed ControlControl input 0~10VDC / PWM
8Protection TypeIP44
9Voltage Output+10VDC (Can be used as speed control input voltage or FG signal pull-up voltage,and need to be circumscribed in series with a pull –up resister, details as connection diagram.)
10 Dielectric Strength

10mA maximum at 1500VAC 50Hz five second

Between frame and (+) terminal
11Signal OutputFG (Frequency Generator)



 Electrical Protection

1Locked-rotor ProtectionOver-current limiting circuit protects motor from damage at least for 72 hours of locked rotor condition at rated voltage.
2

Maximum Current

under Locked Rotor

A, Typical inrush current when the motor is trying to re-start under locked rotor conditions is 2~4 times the normal running current reoccurring and for 16~20% of restarting cycle period.

B, If he CL function is used this restarting inrush current is about the same as the normal running current.
3Reverse Polarity ProtectionNo damage if the positive and negative leads are reversed under maximum operation voltage conditions.
4Over Voltage ProtectionThe circuit will be shut down automatically when input voltage over 284VAC. And re-started when Voltage down to 284VAC below.
5Soft StartIn 5 seconds after power on and speed control voltage gets to 1.5V or PWM duty cycle at 10% above.



Application



Customizable



Company Information

FAQ

1.Are you a manufacturer  ?

 Yes, we are .  we own over 10 production lines for different products .

2.How is your quality  ?

Aboove average  and top class quality are your options in our range , The quality is pretty good,and trusted by many customers in overseas .

our quality is abov the average according customer same budget , customer have 1 year warranty , and free after sales technical support in product designed life span .

3. How is your price ?

Our price is very competitive by large scale production contribution .

4.What's your lead time ?

7days -25days , depengs on volume and different items .

5.How is your responding time ?

You will get reply within 2hours online by Wechat ,Whatsapp , Skype , trade manager .

You will get respond within 8hours offline by email  .

Mobile is always availble for picking up your calls .
