product name:

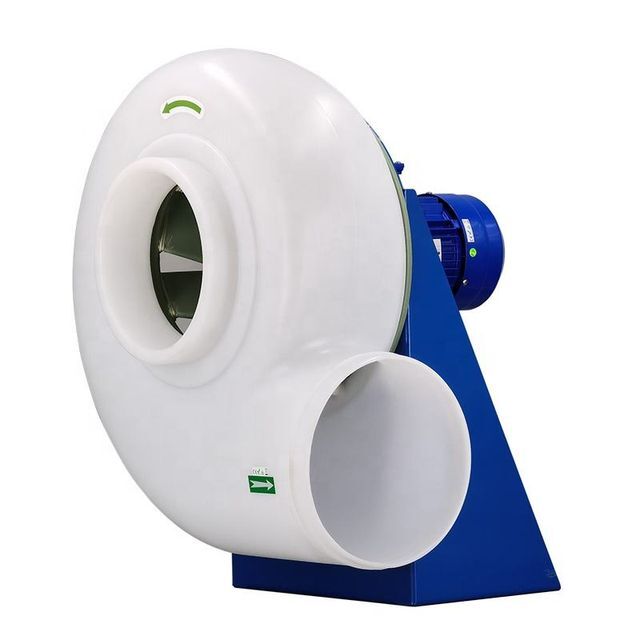

Chemical resistant PP plastic centrifugal fan
Model: MPCF-250-B2S
Specification

General Instructions

Chemically resistant PP plastic centrifugal fans are designed for conveying corrosive vapours and fumes with high humidity and a maximum temperature of 60ºC.
Applications for extracting corrosive fumes and gases:
Sulfuric acid, sulfurous acid, nitric acid, nitrous acid, hydrofluoric acid, boric acid, hydrocyanic acid, hydrochloric acid. Ammonia, soda, ethanol, potassium hydroxide, methanol, propane, formaldehyde, benzene, formaldehyde.
application
MPCF series chemical corrosion resistant PP plastic centrifugal fan adopts backward curved impeller, which has the characteristics of low noise and high efficiency. Exhaust ventilation.
Spiral Box
The spiral housing is made of polyethylene (PE) plastic. Reversible and rotatable to any of the 8 standard discharge positions in 45° increments. All fans come with 304 stainless steel mounting bolts and nuts.
The water inlet and outlet are round, standard size: 160, 200, 250, 300, suitable for plastic air duct connection.
impeller
Dynamic balancing of high-efficiency back-twisted vane impellers made of polypropylene (PP) plastic
Balancing standard G2,5 according to DIN ISO 1940.
motor
Direct Drive, Asynchronous, Single or Three Phase, IP54, Class F, Form B5, 2 Pole and
4 pole execution. Single speed: three-phase 380V-50/60Hz, single-phase 220V-50/60Hz. Explosion-proof versions are available in three-phase models according to the ATEX directive. . Motor out of airflow. All motors are adjustable in speed and driven by variable frequency.
Motor support
The metal brackets are made of blue-coated epoxy.
