Chinese factory professional portable 1000V digital insulation resistance meter
- 80.00 >=20 units
| Payment Terms: | T/T,Western Union,MoneyGram; | Display Type: | Analogue and Digital; |
| Place of Origin: | Guangdong China; | Operating Temperature: | 0-40 degree; |
| Brand Name: | HABOTEST; | Testing Voltage: | 1000v; |
| Safety Rating: | CE CAT.III 1000V CAT IV 600V RoHS; | Packaging Detail: | 20pcs per carton ,Standard Export Carton; |
| Dimensions: | 180*140*65mm; | Power Supply: | 6xLR14 batteries; |
| Product Weight: | Approx. 950g; | Model Number: | HT5203; |
| Supply Ability: | 30000 Unit/Units per Month; |
Product Prescription

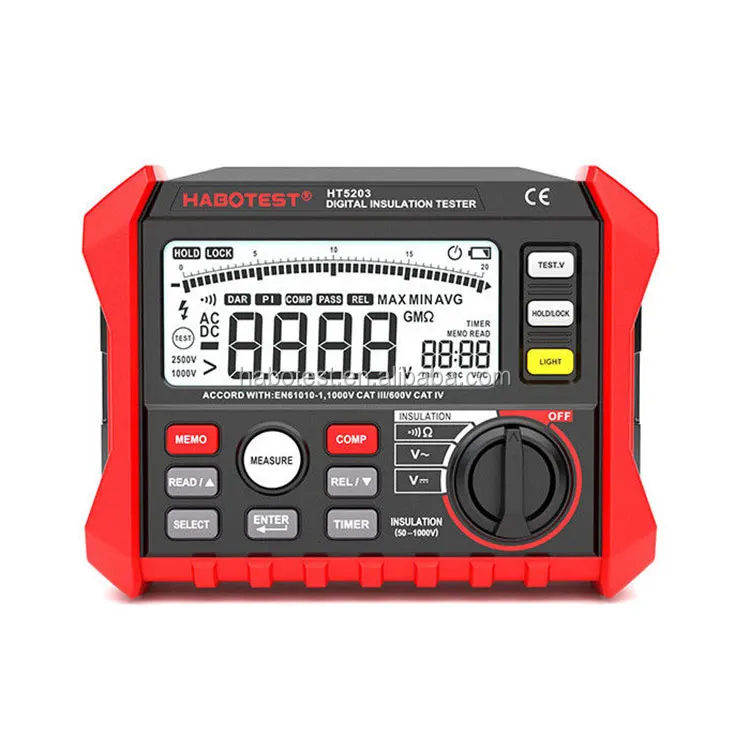

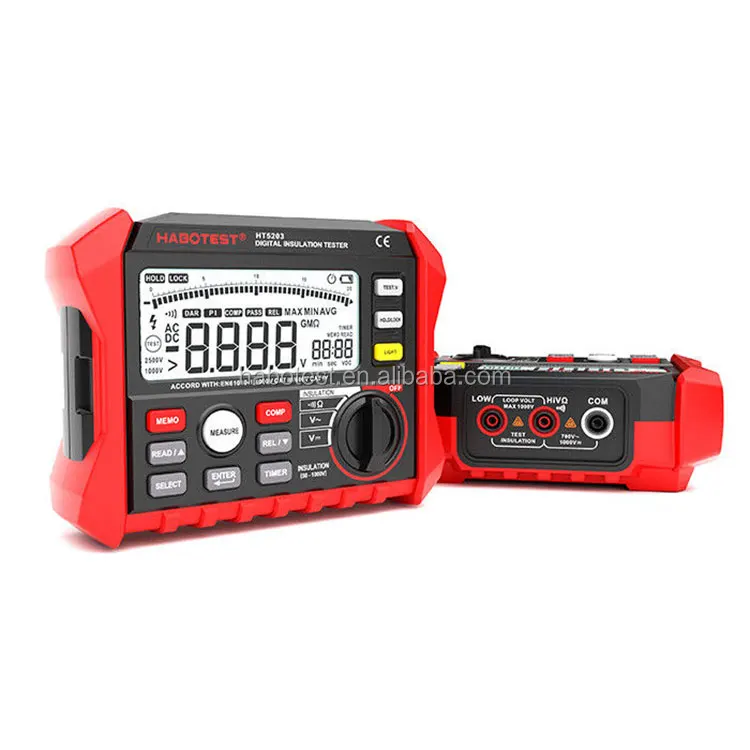

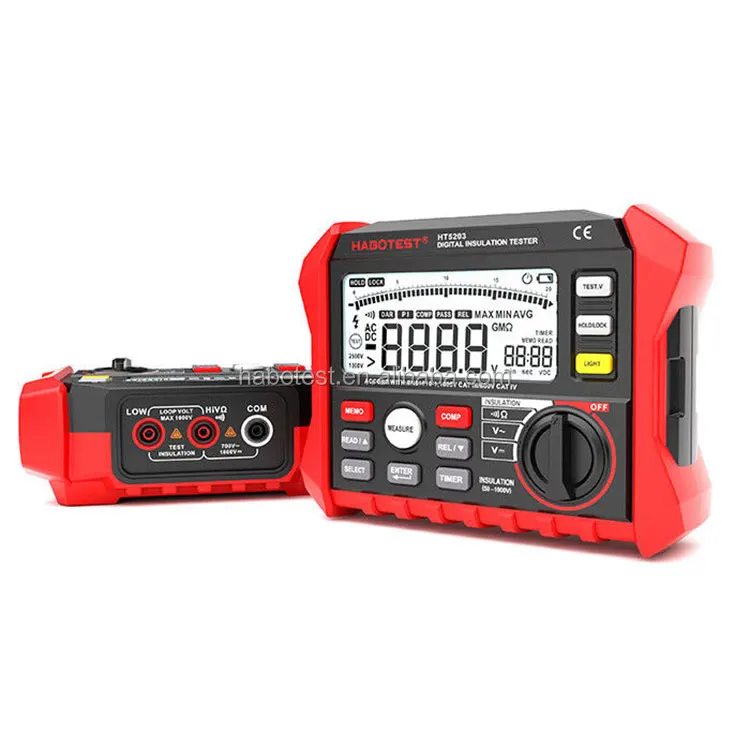

HT5203 Digital 1000V Insulation Tester Resistance megger meter Ohm Meter with Multimeter
Product introduce:
Features:
1. Checking the insulation of high-voltage electrical equipment (electric motor, transformer, and cable, etc.)
2. Use 50V-1000V voltage to test target insulation
3. It can measure up to 10GΩ resistance
4. Short current up to 1.8mA
5. Automatically calculates PI (Polarization Index) and DAR (Dielectric Absorption Ratio)
6. AC/DC voltage measurement and continuity test
7. Display back light and auto power-off
Specification | Source Output Voltage | Measuring Range |
Insulation tests | 50V (0 %~+20%) | 0.01MΩ~50MΩ ±(3%+5) |
100V (0%~+20%) | 0.01MΩ~100MΩ ±(3%+5) | |
250V (0%~+20%) | 0.01MΩ~250ΩM ±(3%+5) | |
500V (0%~20%) | 0.01MΩ~500MΩ ±(3%+5) | |
1.00GΩ~5.00GΩ±(5%+0.1GΩ) | ||
1000V (0%~+20%) | 5.00GΩ~10.00GΩ±(10%+0.2GΩ) | |
Short circuit current | 1.8mA | |
Multimeter functions | DC Voltage Test | 0.1~1000V±0.5% |
AC Voltage Test | 0.1~50V±1% | |
Continuity Test | 0.01Ω~200Ω±0.5% | |
Features | Auto Calculate PI and DAR | |
Store /Load Function | ||
Compare function | ||
Auto discharge for capacitive load | ||
Timer Function for insulation test | ||
Lock function for insulation test | ||
Low Battery Indication | ||
DCV and ACV Test | ||
Continuity test | ||
Auto power Off | ||
Digital and analog display | ||
General | Power Supply | 6xLR14 batteries |
Product Size | 180mm x 140mm x65mm | |
Product Weight | Approx. 950g | |
Safety Rating | CE CAT.III 1000V CAT IV 600V RoHS | |
Payment terms:T/T,30% Deposit By T/T,70% Balance By T/T Before Shipping
Trade Terms:EXW SHENZHEN OR FOB SHENZHEN
Packing Details:Standard Export Carton,Or OEM Carton
Delivery time:Small qtys we usually have stock,if Big order or containers order come to discuss with us
