Solar Cell Wafer Fiber Laser Scribing Cutting Machine details
Graphic Format Supported:AI,BMP,DXF,DXP,PLT;Application:Laser Scribing;
Place of Origin:Hubei China;After-sales Service Provided:Field maintenance and repair service;
Working power supply:220V/50Hhz/1.5KVA;Laser Type:Fiber Laser;
Warranty:3 years;Cooling Mode:Air Cooling;
Scribing line width:50um;Brand Name:PERFECT LASER;
Scribing speed:240mm/s;After-sales Service Provided:Engineers available to service machinery overseas;
Laser Source Brand:Coherent;Control Software:Laser Scriber;
Scribing accuracy:±10μm;Condition:New;

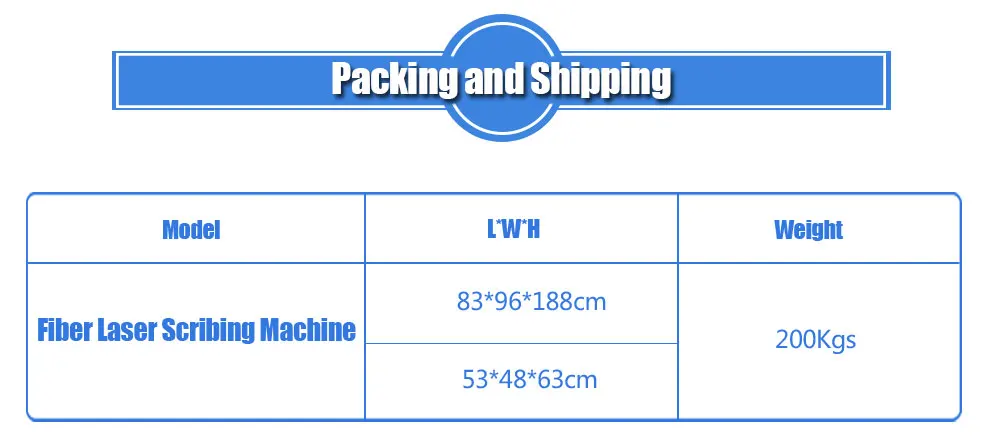

Packaging Detail:International Transport Plywood Package, laser scribing machine package size: 1.52*0.85*1.42m;Applicable Material:Solar cell wafer;
CNC or Not:Yes;Port:Shanghai,shenzhen,wuhan;
Production name:laser scribing machine;Laser power:20W;
Applicable Industries:Building Material Shops,Manufacturing Plant,Retail,Construction works ,Energy & Mining,Advertising Company;Laser Wave length:1064nm;
Supply Ability:5000 Unit/Units per Year laser scribing machine;Scribing precision:±10um;
Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal,escrow;Working Area:200*200mm;
Certification:CE,ISO,FDA;

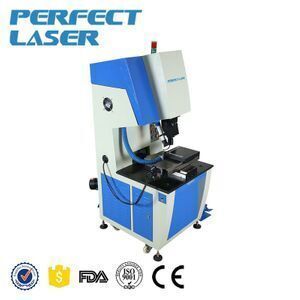

Solar Cell Wafer Fiber Laser Scribing Cutting Machine

 (Model: PE-20w)

Product Description



Machine Features


New design: Reconstruct the mechanical structure to make the device structure more compact, easier to use. Rewrite the part of the fiber laser scribing machine software source code to make software run more stable and faster.
High Configuration: Using 20W fiber laser, make the beam quality better (standard base model), kerf finer (30μm), and more smooth edge.
Free-maintenance: machine using standard modular design, the real free-maintenance uninterrupted continuous operation, without wasting replacement of wearing parts.
Easy operation: an integrated air-cooled device settings, device smaller, more simple operation.
Dedicated control software: specifically for laser scribing machine designed control software, easy to operate, can be displayed in real time dicing path.
High efficiency: T-station duplex alternating operation, improve work efficiency dicing maximum speed up to 200mm / s



Application areas

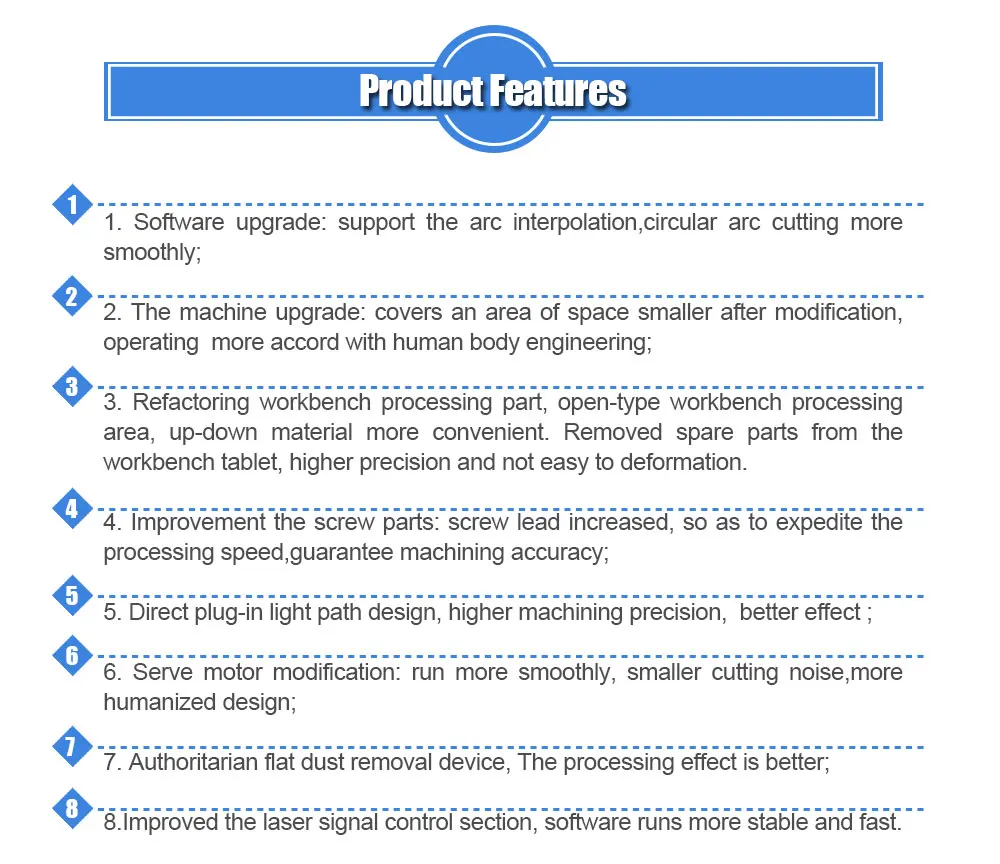

1. Software upgrade: the solar cell scribing machine supports the arc interpolation,circular arc cutting more smoothly.

2. The wafer laser scribing machine upgrade: covers an area of space smaller after modification, operating more accord with human body engineering.

3. Refactoring workbench processing part, open-type workbench processing area, up-down material more convenient. Removed spare parts from the workbench tablet, higher precision and not easy to deformation.

4. Improvement the screw parts of the wafer laser scribing machine: screw lead increased, so as to expedite the processing speed, guarantee machining accuracy.

5. Direct plug-in light path design, higher machining precision, the wafer laser scribing machinecan receive better effect .

6. Serve motor modification of laser scribing solar cells machine: run more smoothly, smaller cutting noise,more humanized design;

7. Authoritarian flat dust removal device, The processing effect of the solar cell scribing machine is better.

8.Improved the laser signal control section, software runs more stable and fast.

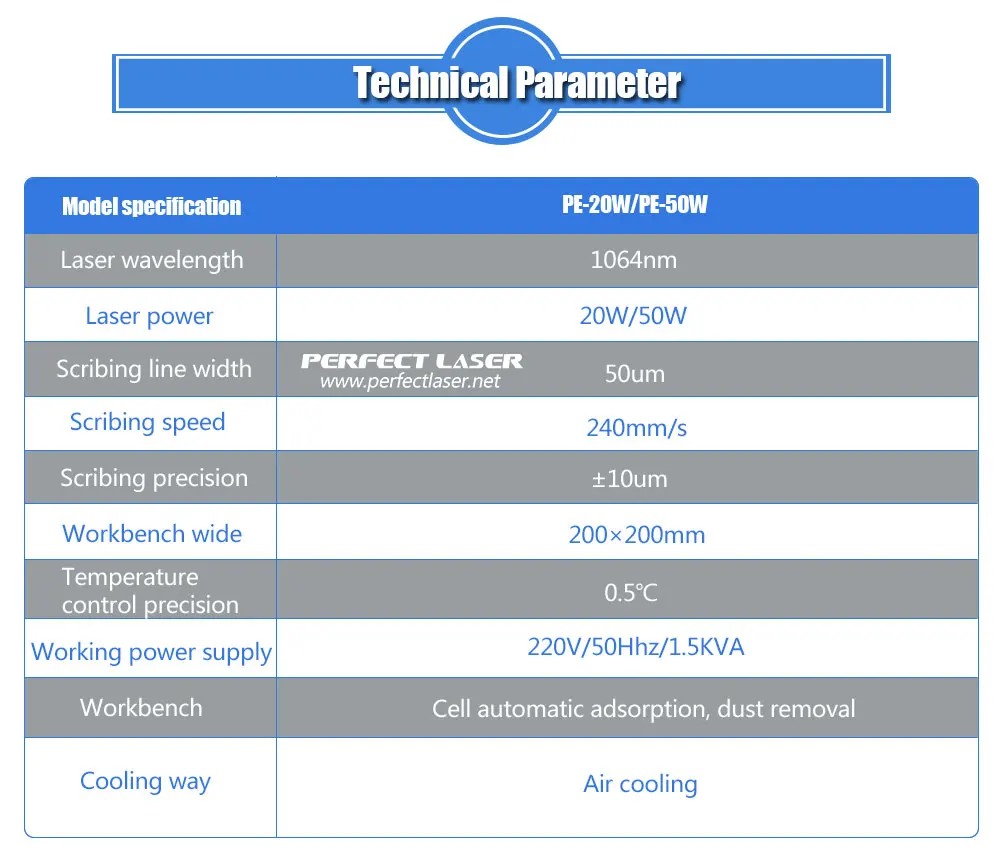

Technical Data





Machine Details





Our Services

---Pre-Sales Service

Free Pre-Sales Consulting / Free Sample Marking
Perfect Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.



---After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.



---Free Training Service

We insist that our customers receive personal, hands-on training with every machine we sell. This training is free, and we will work with you for as long as it takes to ensure you feel comfortable operating your new laser machine. We pride ourselves on our expertise and our ability to educate our customers in the installation, proper maintenance, and most efficient use of Perfect Laser machines.



Company Introduction



We, Perfect Laser, As a 21 years history industrial equipment manufacture in laser field, 10 year Golden Supplier in Alibaba, with CE/ISO/FDA, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
