5ton battery drive electric locomotive
- 13000.00 set
| Packaging Detail: | standard package for 5ton battery drive electric locomotive; | Brand Name: | Hengwang; |
| Capacity: | 2.5t; | Supply Ability: | 10000 Set/Sets per Month; |
| Rated voltage: | 48V; | Dimensions (L x W x H) (mm): | 2350*914*1550; |
| Track gauge: | 600mm; | Battery capacity: | D-395Ah; |
| Wheel base: | 650mm; | Traction motor power: | 3.5-4.8KW; |
| Horsepower: | 4.7 or 6.4; | Hourly traction: | 2.84KN; |
| Port: | Qingdao,Shanghai,Shenzhen,Ningbo,etc.; | Speed (km/h): | 5.4km/h; |
| Place of Origin: | Shandong China; | Model: | HW2.5/6.7.9/G48; |
| Fuel Type: | Electric; | Hourly speed: | 5.4km/h; |
| Product name: | 5ton battery drive electric locomotive; | Payment Terms: | L/C,T/T; |
5ton battery drive electric locomotive Introductions:
2.5T electric electric locomotive, there are two types of general type and explosion-proof special type. Its characteristics: small size, short wheelbase, reliable operation, flexible, simple structure, easy maintenance, and the brake action is fast and reliable. Suitable for small alleyways and small mine transportation and small and medium-sized shunting
A locomotive contains 2 sets of batteries, a charger, the net weight of the loadable minerals is 8-10 tons, and the motor and battery are guaranteed for one year. Free replacement or repair if there are quality problems.
5ton battery drive electric locomotive Parameters:
Model:HW2.5/6.7.9/G48 | ||
Capacity | t | 2.5 |
Track gauge | mm | 600. |
Rated voltage | v | 48 |
Battery capacity | Ah | D-395 |
Hourly traction | KN | 2.84 |
Hourly speed | Km/h | 5.4 |
Traction motor power | KW | 3.5 or 4.8 |
Wheel base
| mm | 650 |
The minimum radius of the curve | m | 5 |
Control mode |
| Resistance or chopped wave speed regulating
|
Brake mode
|
| Machinery (inner hoof type) |
Transmission type |
| Enclosed gearbox drive |
Hook center working height
| mm | 210-320 |
Dimension | mm | 2350*914*1550 |

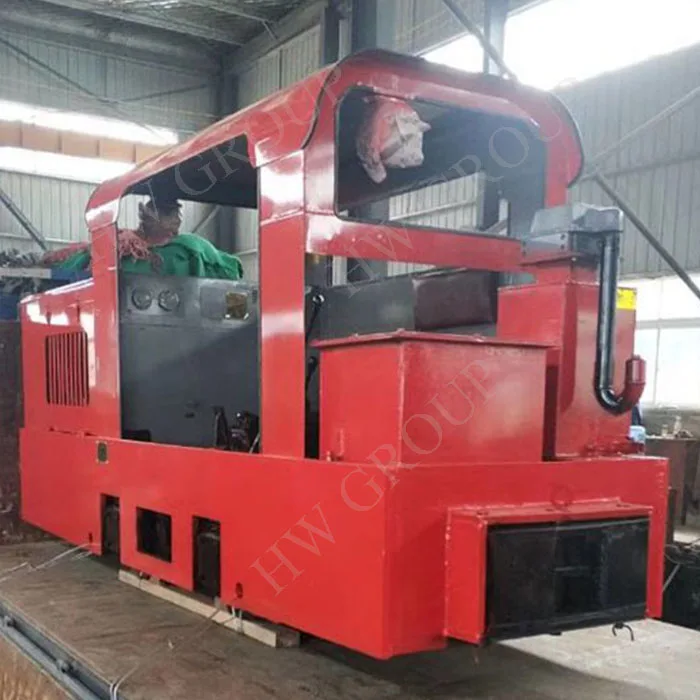

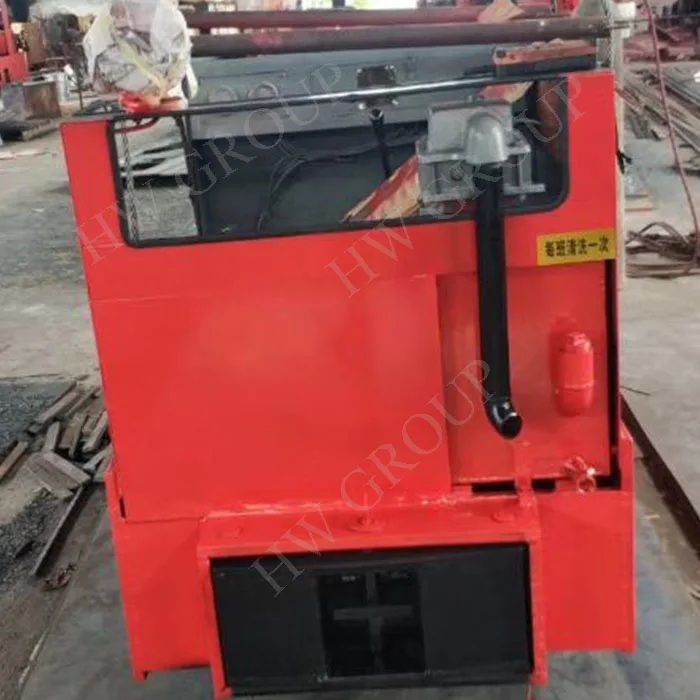

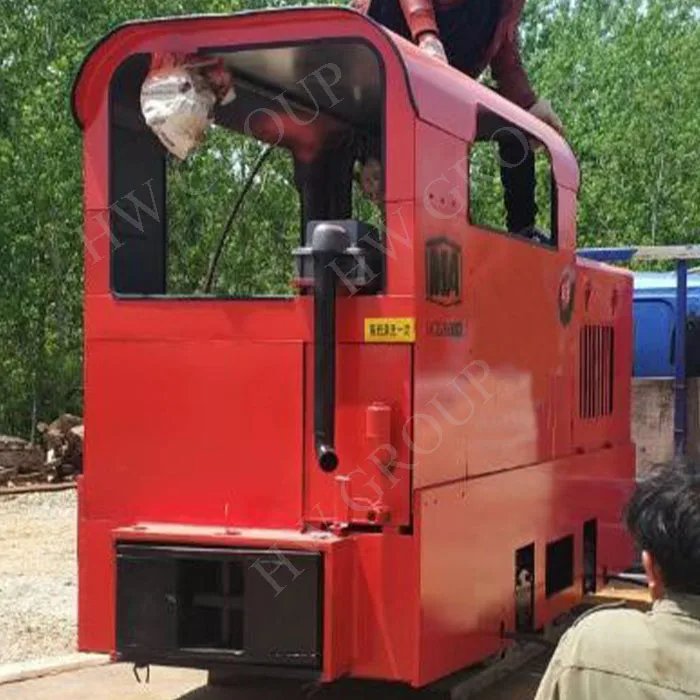

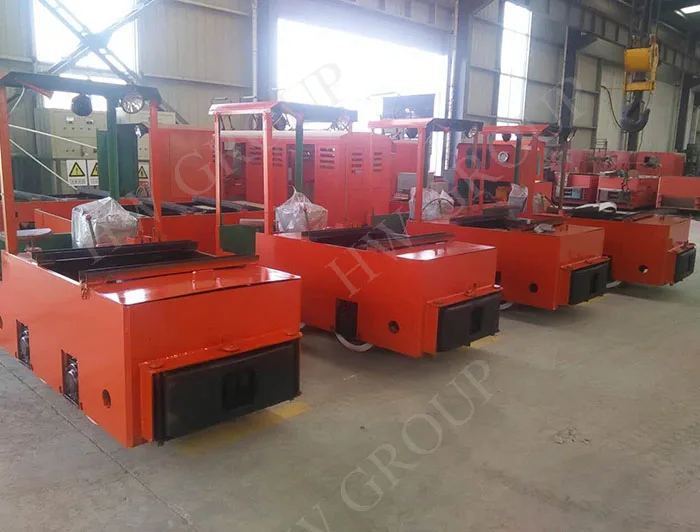

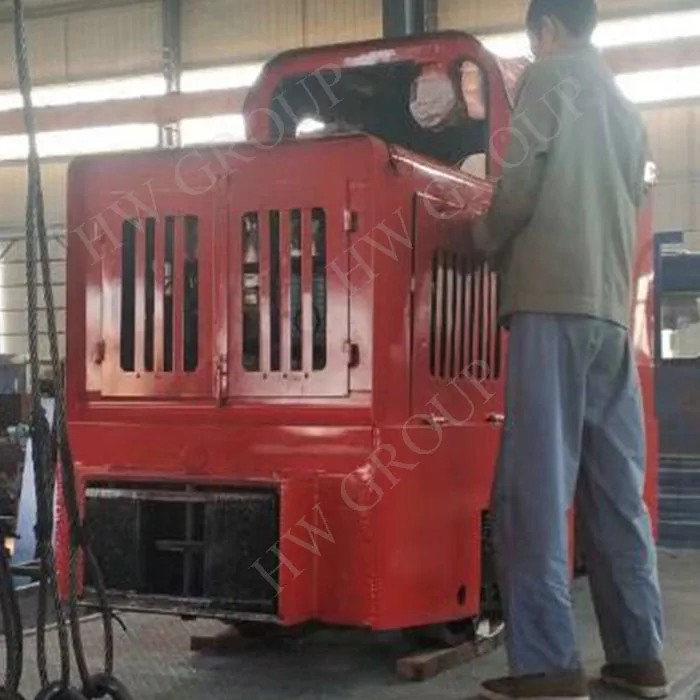

5ton battery drive electric locomotive Pictures:

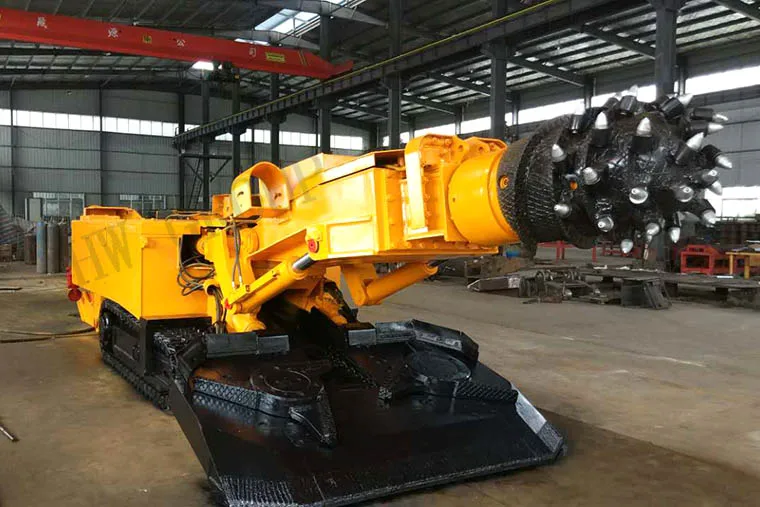

Related products of 5ton battery drive electric locomotive
Customer visiting for 5ton battery drive electric locomotive:

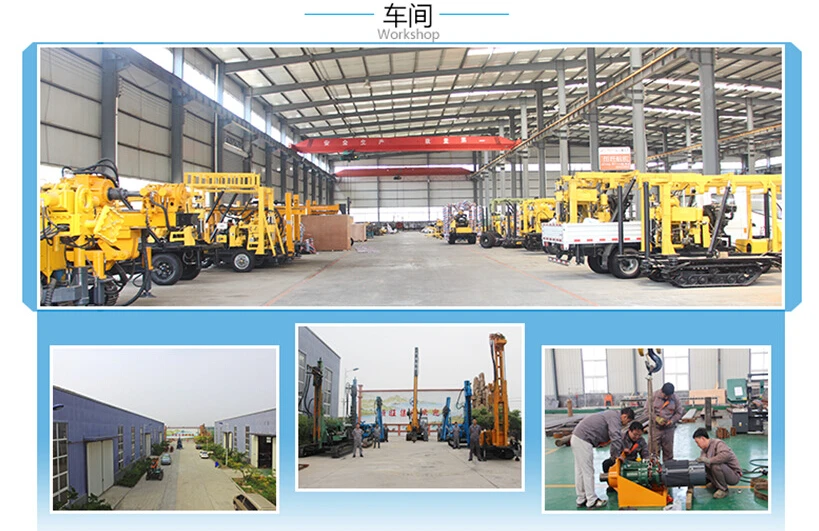

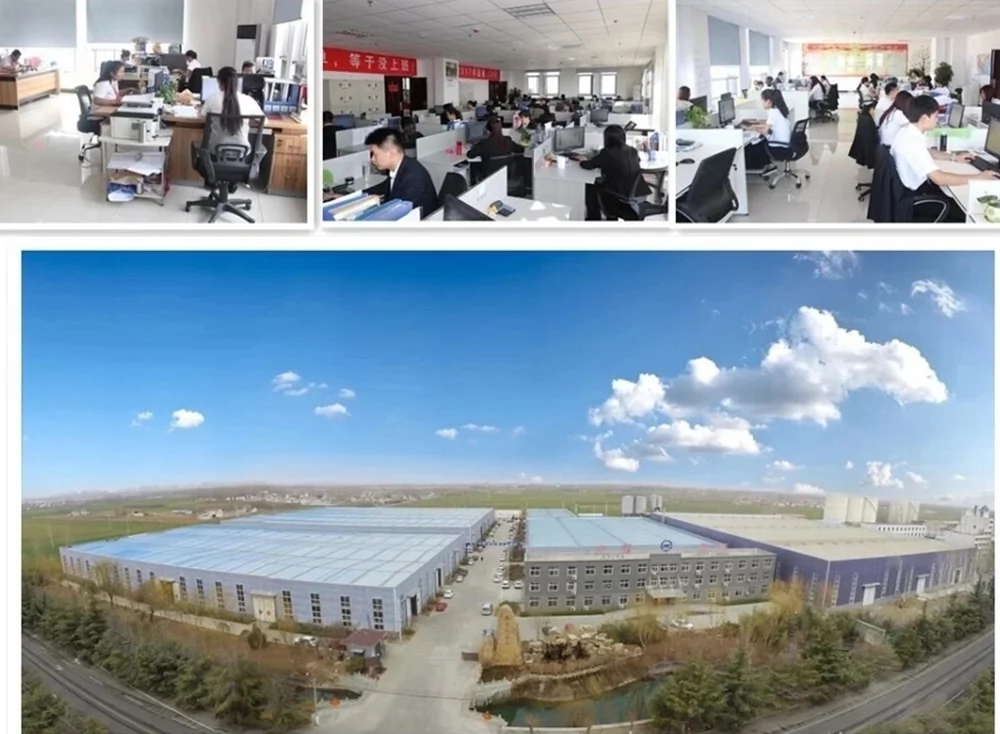

Company for 5ton battery drive electric locomotive:
