China SEM 190HP SEM919 Small Motor Grader Good Price Products from Shandong Hengwang Group Co., Ltd.

Product Details

Applicable Industries:	Construction works ;	After-sales Service Provided:	No overseas service provided;
Hydraulic Pump Brand:	SEM;	Warranty:	1 Year;
Payment Terms:	L/C,T/T,Western Union,Paypal, Alibaba Trade Assurance;	Reverse Speed(km/h):	25;
Dimension(LWH):	870326303360MM;	Hydraulic Valve Brand:	SEM;
Forward Speed(km/h):	40;	Place of Origin:	Shandong China;
Port:	Qingdao, Tianjin, Shanghai;	Condition:	New;
Packaging Detail:	export wooden case for China SEM 190HP SEM919 Small Motor Grader Good Price;	Supply Ability:	50 Set/Sets per Month China SEM 190HP SEM919 Small Motor Grader Good Price;
Brand Name:	SEM;	Engine Brand:	SDEC;
Certification:	ISO;	Hydraulic Cylinder Brand:	SEM;

Product Description

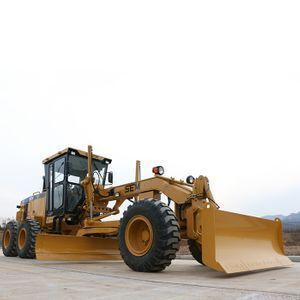

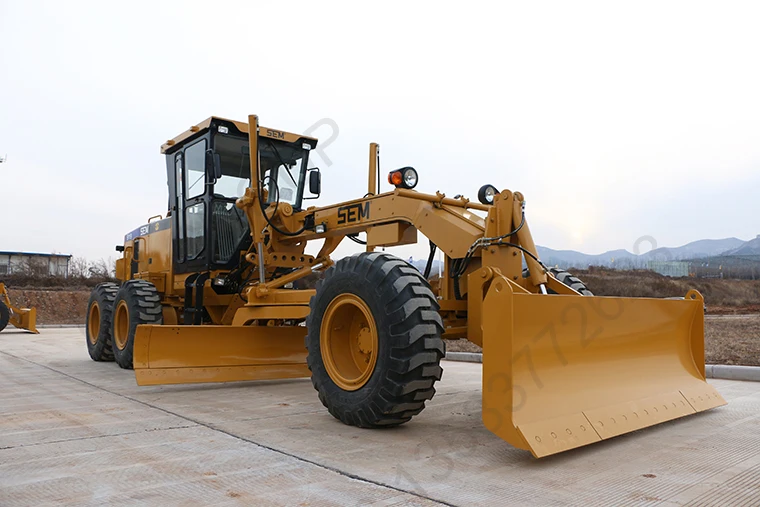

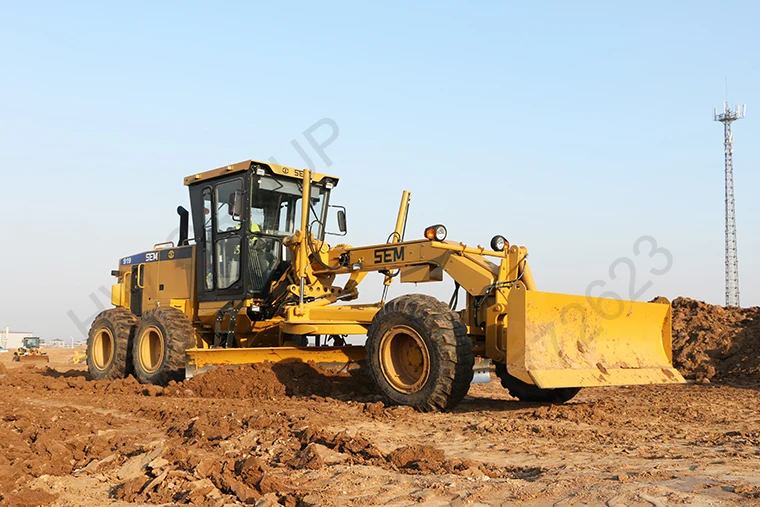

China SEM 190HP SEM919 Small Motor Grader Good Price Introduction

High Productivity: Load sensing hydraulic system provides consistent and precise blade movement.

High Reliability: A-frame designed drawbar provides strength in all blade positions.

Comfort: World Class industry control layout with low lever efforts for reduced operator fatigue.

Leveraging designing and experience on MG tandem axle
Improved bearing Layout and optimized load distribution with 4 planetary gears final drive
Less down time and reduced labor and service cost for maintenance and repairing
Longer service interval for lubrication oil change
Leading in class manufacturing and quality control level, mandatory performance testing before delivering to MG assembly line

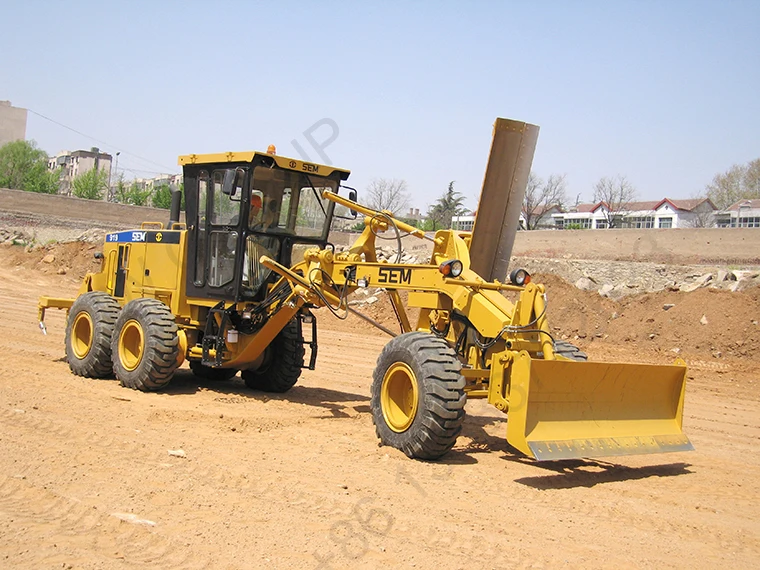

7 position link bar with electric over hydraulic control allows ease of operation from within the cab

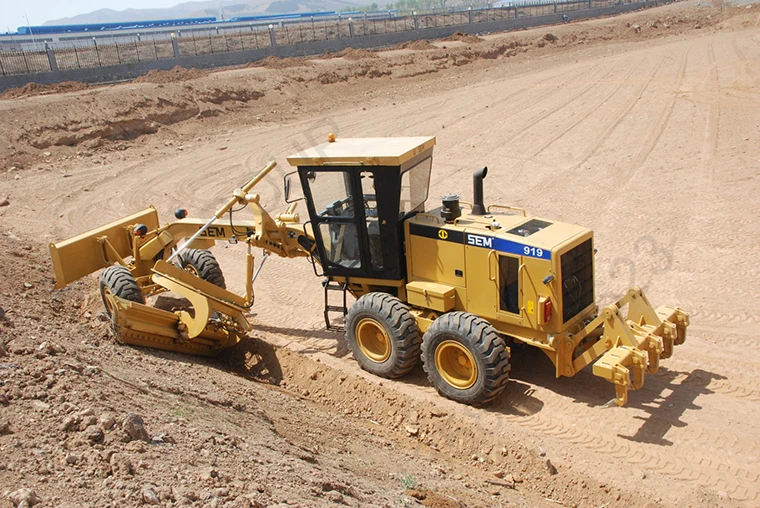

Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope
The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch
Replaceable bushings reduce service time and cost

Standard blade float function allows blade to lower without hydraulic pressure for increased versatility
Blade float is engaged by pushing the left and right lift cylinder controls all the way forward past the detent
Provides protection for machine and pavement during snow removal and snow plowing

Proportional Priority Pressure Compensating (PPPC) Valves contain specifically cut spools for motor grader applications, continuously matching of hydraulic flow and pressure to power demands, allowing ease of multi-function control for optimizing working efficiency
World-class variable displacement piston pump, efficiently reduces power consumption and hydraulic system heat, improving fuel efficiency
Load-sensing hydraulic system provides consistent and precise blade movement, improving finishing performance
Inboard lock check valves within PPPC, prevents inadvertent cylinder movement and potential leaks

A-frame tubular design drawbar provides maximum strength and durability
Replaceable drawbar draft ball (bolted – not welded) for less service time and cost
Easy removal of wear shims to adjust drawbar

Flanged box section design removes welds from high stress areas, improving reliability and durability
Continuous top and bottom plate construction provides consistency and strength, improving front frame durability
Hydraulic hose routing minimizes exposure to damage and provides quick access for service
Maintenance-free bushings improve durability and reduce overall service cost

Short throw levers are efficiently spaced, allowing ease of multi-function control
Short lever travel (40mm) with low lever effort reduces operator fatigue

High performance dashboard with 3 levels alarming monition system
Cab mounted on the front frame provides exceptional view to blade and front axle even during articulation
Large cab with 1.9m height and 30% larger space than most competitors, provides exceptional comfort

Items	SEM919
Operation Weight (Base Machine)	15,070kg
Overall Dimensions (LWH)	8,7032,6303,360mm
Blade Length (LWH)	3,97425607mm
Max. Lifting Height	475mm
Max. Depth of Cut	715mm
Max. Drawbar	≥78kN
Wheelbase	6,140mm
Frame Articulation Angle	20°
Min. Turning Radius	7.8m
Engine Brand	SDEC SC9DK190.1G3
Rated power	140kW
Transmission Type	Hangchi 6WG180
Travel Speed (Forward/Rear)	40/25km/h
Rear Axle/Tandem	SEM ST22
Service brake	Outboard disc with brake caliper,Air to oil Control
Oscillation (Front up/Rear up)	15/25°
Max. Oscillation Angle	±16°
Steering Angle (Left/Right)	47.5°
Max. Lean Angle of Front Wheels	18°
Hydraulic System	Load sensing,PPPC
