Cheap Borehole Drilling Machine /water well drilling rig for Sale 200m

Supplier: Shandong Hengwang Group Co., Ltd.
Region: Shandong, China
Contact: Ms Eva Shao
Price: $7000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	1000 Set/Sets per Month Borehole Drilling Machine /water well drilling ri;	Dimension(LWH):	27509501770mm;
Condition:	New;	Packaging Detail:	Borehole Drilling Machine /water well drilling rig for Sale 200m;
After-sales Service Provided:	Free spare parts,Online support;	Maximum pressure:	3Mpa;
drlling depth:	230m;	Weight:	1150KGS;
Port:	Qingdao;	Usage:	Water Well;
Type:	Core Drilling Rig;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Power Type:	Diesel;	Voltage:	220V/380V;
Maximum open hole caliber:	300mm;	Certification:	ISO9001;
After-sales Service Provided:	Engineers available to service machinery overseas;	Name:	Cheap Borehole Drilling Machine /water well drilling rig for Sale 200m;
Drilling tower height:	6.5m;	Brand Name:	HWZG;
Drilling angle:	90~75;	Drill rod caliber:	50mm;
Work pressure:	1.5Mpa;	Place of Origin:	Shandong China;
End hole caliber:	75mm;	Warranty:	1 year;

Product Description

Borehole Drilling Machine /water well drilling rig for Sale 200m Introduction

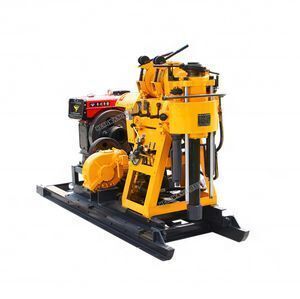

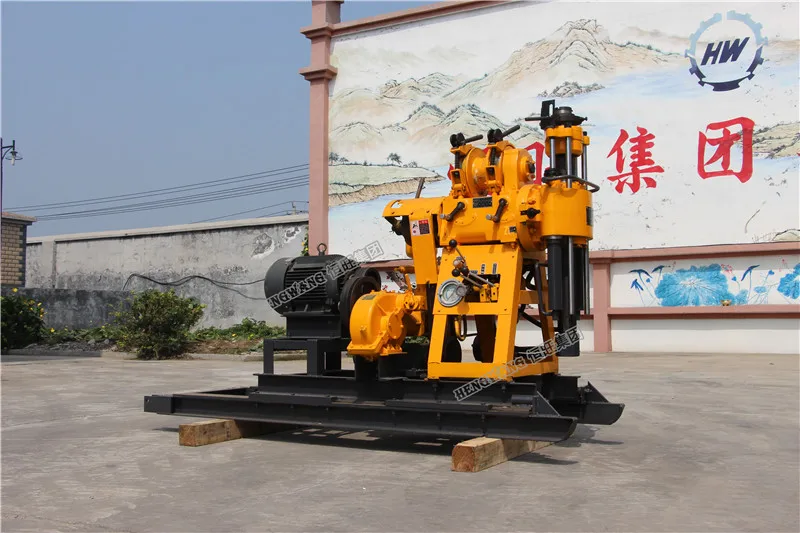

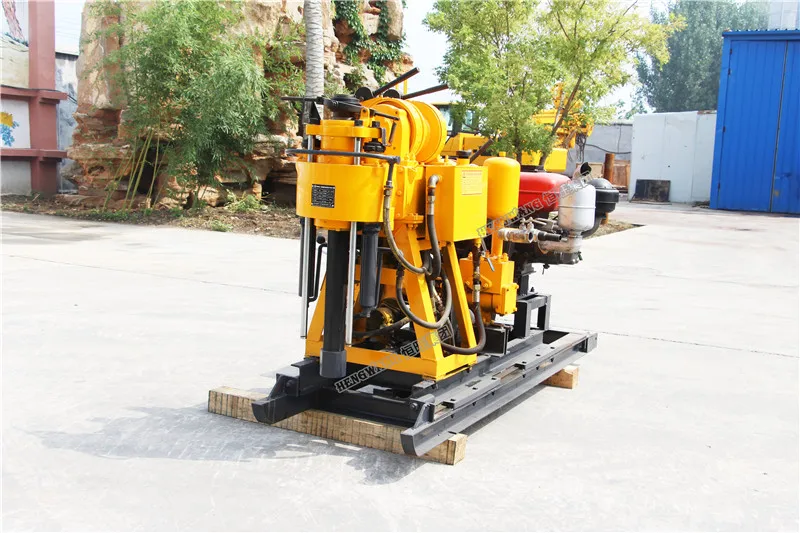

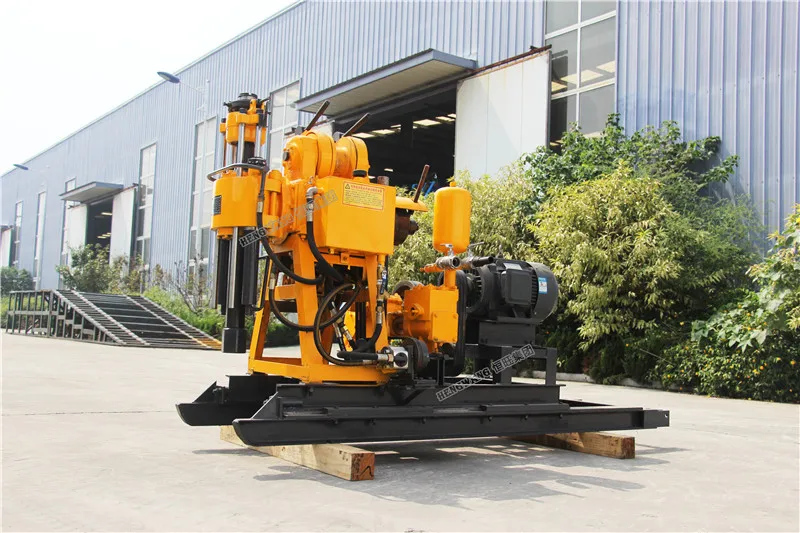

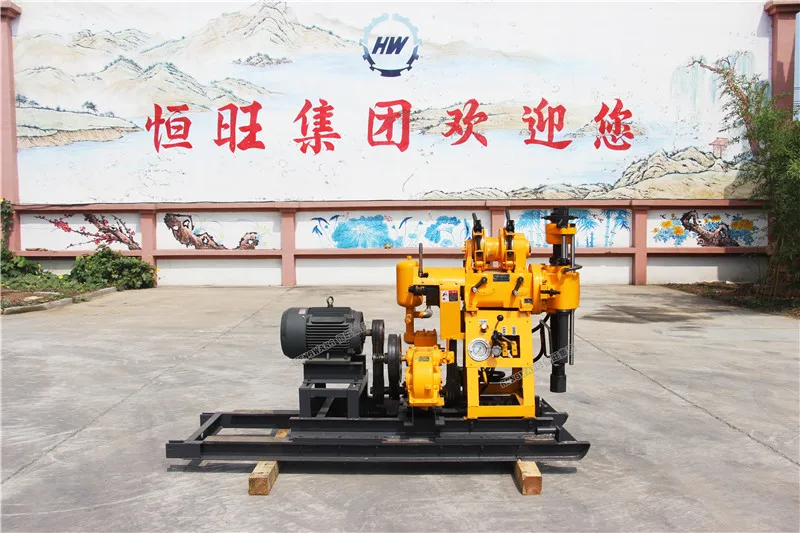

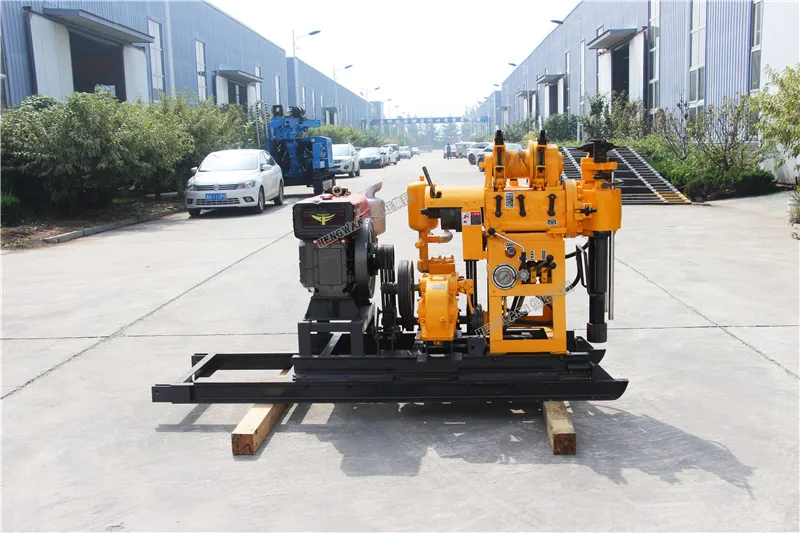

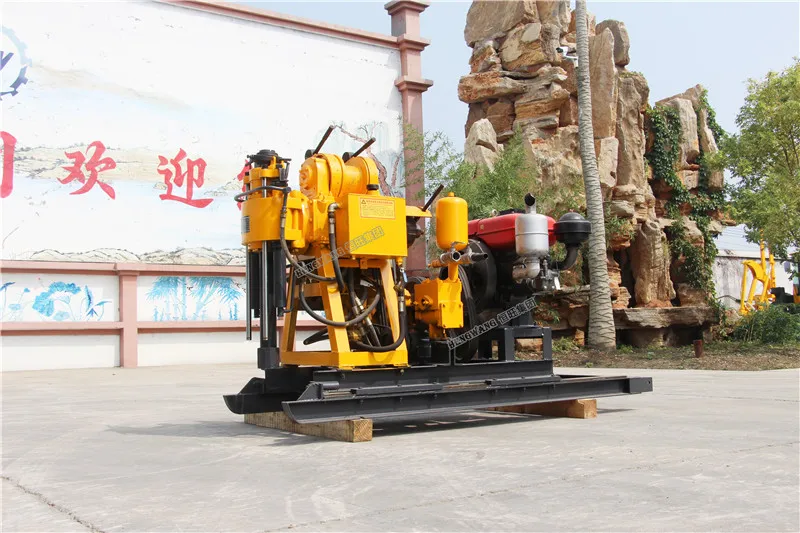

HW-230 portable water well drilling rig equipped with BW-160 mud pump and 22HP diesel engine, Max. drilling depth can be 230m with the opening diameter of 75-400mm, trailer, crawler, and tractor chassis for choice.

a. the machine is equipped with crawler chassis device, easy to move with fast speed.

b. hydraulic oil pressure feed device, improve drilling efficiency.

c. pressure gauge display the condition of the bottom of the drill hole.

d. drill mast controlled by hydraulic cylinder, improve the efficiency diesel engine adopt the electric starter, to reduce the labor intensity.

Borehole Drilling Machine /water well drilling rig for Sale 200m Parameter

Drilling depth	230m
Maximum borehole caliber	300mm
Minimum borehole caliber	75mm
Diameter of Drill pipe	42/50/60mm
Drilling angle	90°~75°
Weight(Not include power)	1150kg
Unity machine dimension	27509501770mm
2.Vertical Spindle
Spindle rotating speed	64/128/287/557r/min
Spindle stroke	450mm
3.Hoist
Max. single line lifting capacity	2400kg
Reel lifting speed	1.64m/s
Steel wire rope diameter	13mm
Steel wire rope capacity	35m
Hug floodgate diameter	245mm
Hug floodgate belt width	70mm
Movable distance	400mm
4. Mud pump
Type	BW-160
Type	Horizontal Single Cylinder with double function
Max. Discharge	Diesel engine 170L/min
Max. Discharge	Electrical Motor 140L/min
Max. Pressure	3MPa
Work Pressure	1.5MPa
5. Power
Diesel engine	22HP
Electric Motor	15KW
6. Drilling tower
Type	Integrated on drilling rig
Control system	Hydraulic
7. Trailer chassis
Type	4 wheels
