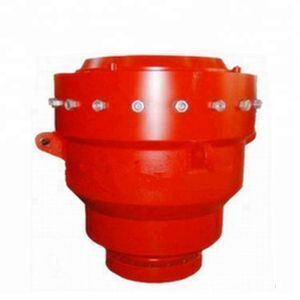

Single Rubber Core hydril Rotary BOP/annular blowout preventer

Supplier: Goldenman Petroleum Equipment Co., Limited
Region: Shandong, China
Contact: Mr Shine Lee
Price: $25000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom Location:	United States,Mexico;	Local Service Location:	United States,Italy,India,Mexico;
Brand Name:	goldenman;	Certification:	API;
Dimension(LWH):	Actual Height;	Port:	Xingang,Tianjin;
Machine Type:	Drilling Equipment;	Model Number:	Request;
Model:	FH FZ;	Processing Type:	Casting;
Color:	Red;	Standard:	API 16A;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Product name:	Single Rubber Core hydril Rotary BOP/annular blowout preventer;
Features:	High Effective;	After-sales Service Provided:	Engineers available to service machinery overseas;
Supply Ability:	100 Set/Sets per Month Single Rubber Core hydril Rotary BOP/annular blowout preventer;	Application:	Oilfiled;
Warranty:	1 Year;	Type:	Rotary Drilling Rig;
Packaging Detail:	iron cases;	Place of Origin:	Shandong China;
Usage:	Oil Well;	Condition:	New;
Weight:	Actual Weight;	Power Type:	Other;
Meterial:	cast forged;	Voltage:	24V/220V/380V;
Applicable Industries:	Energy & Mining;

Single Rubber Core hydril Rotary BOP/annular blowout preventer

Product Description

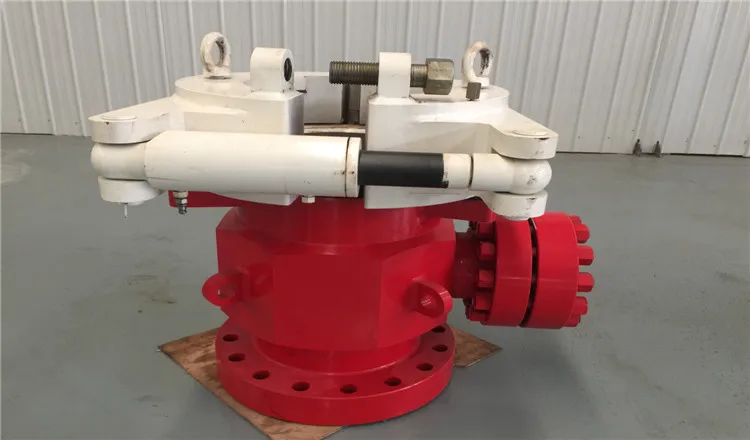

The Rotating BOP is one of the best choice for unbalanced drilling operation while its outstanding function and extra safety have been proved by wide application on job site for many years.

Our RBOP designing and production is according to standards and specifications as follows:
API 16A, API 16RCD, NACE MR-0175

Models: XF08180-17.5Mpa,XF08190-17.5Mpa,XF10180-17.5Mpa,

XF0818C-10.5Mpa,XF0819C-10.5Mpa

Specification:

Max. Dynamic Pressure: 10.5Mpa

Max. Static Pressure: 21Mpa

Max. Rotary Speed: 100 rpm

Center Pipe Size: 190mm

Working Temperature: -18 - 121 DegC

Working Medium: Drilling fluid, crude oil, gas

Bottom Flange size:13-5/8" -5000psi,

Side FLange size: 7-1/16"- 5000psi,
