API oil drilling Steel frame screen flat shale shaker screen

Supplier: Goldenman Petroleum Equipment Co., Limited
Region: Shandong, China
Contact: Mr Shine Lee
Price: $40.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Condition:	New;	After-sales Service Provided:	Online support,Video technical support;
Port:	Tianjin Port;	Packaging Detail:	as per client request;
Key word:	screen;	Material:	Stainless Steel 304;
Product name:	API oil drilling Steel frame screen flat shale shaker screen;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Vibrating Mode:	Linear Motion Mud Shale Shaker;	Warranty:	6 months;
Supply Ability:	1000 Piece/Pieces per Month;	Warranty of core components:	1 Year;
Place of Origin:	China;	Name:	Linear Shakerm screen;
Brand Name:	goldenman;	Application:	well drilling;
Video outgoing-inspection:	Provided;	Shale Shaker Screen type:	Frame;
Local Service Location:	None;	Machinery Test Report:	Provided;
Applicable Industries:	Energy & Mining;	Marketing Type:	Ordinary Product;
Showroom Location:	None;	Core Components:	screen;

Product Description

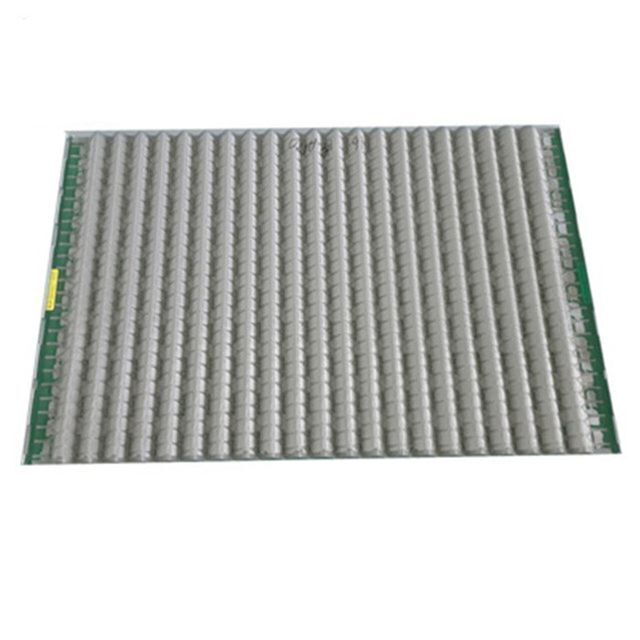

API oil drilling Steel frame screen flat shale shaker screen

At present , Hook atripe flat plate screen 15 one ofthemost used screens , and can be applied widely in different drilling conditions.It is usually composed of two or three atainless Steel Iayers bonded hard to metal ,holey ,support backing plate .We possess the strong experience and the ripe technology , and wi

ll provide various specifocations of hook stripe flat screens to serve the clients'demands.
Features: .

1)Different layers with different density.To arrange these layers reasonably and exactly,the screening effect will become more better.Screens with different mesh counts have suitable opening sizes of the backing plate.Doing so,our products will obtain the largest effective area under the condition of enough strength. .

2)The bottom layer with low mesh counts has coarse wire,and can be tight bonded to the backing to make up one block.So the strength of whole screen mesh get up and the useful life is increased.

3)The mesh,divided into many independent small units by grids of the backing plate,can prevent rips or tears from spreading overmuch.Accessary prepared rubber stoppers can be used repair damages.By doing so,the operator can cut down the stop-time and reduce the cost.

SPECIFICATION FOR WAVE SHAKER SCREEN
Model	Brand & Model for shaker	Mesh Range	Dimension (L*W )	Weight kgs
KX-12	FLC2000	20-325	1053*697mm	6.0
KX-13	FLC500 SERIES	20-325	1050*695mm	7.0
KX-14	FLC600	20-325	626*7107mm	7.0
KX-15	HYPERFOOL	20-325	1070*570mm	7.5
ATT	Others model can be customized according to your specifical sizes and requirements
