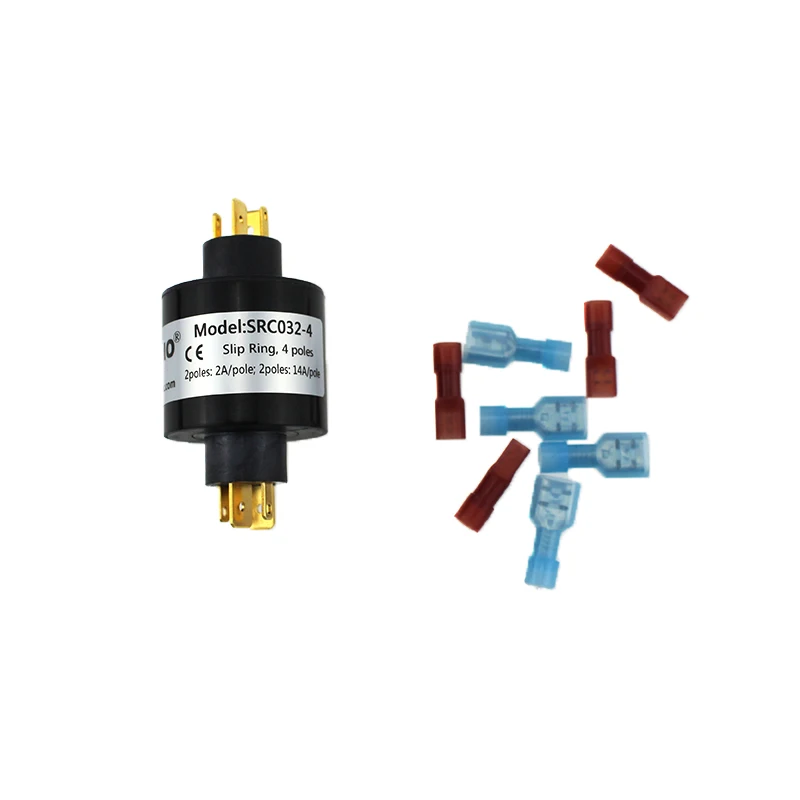

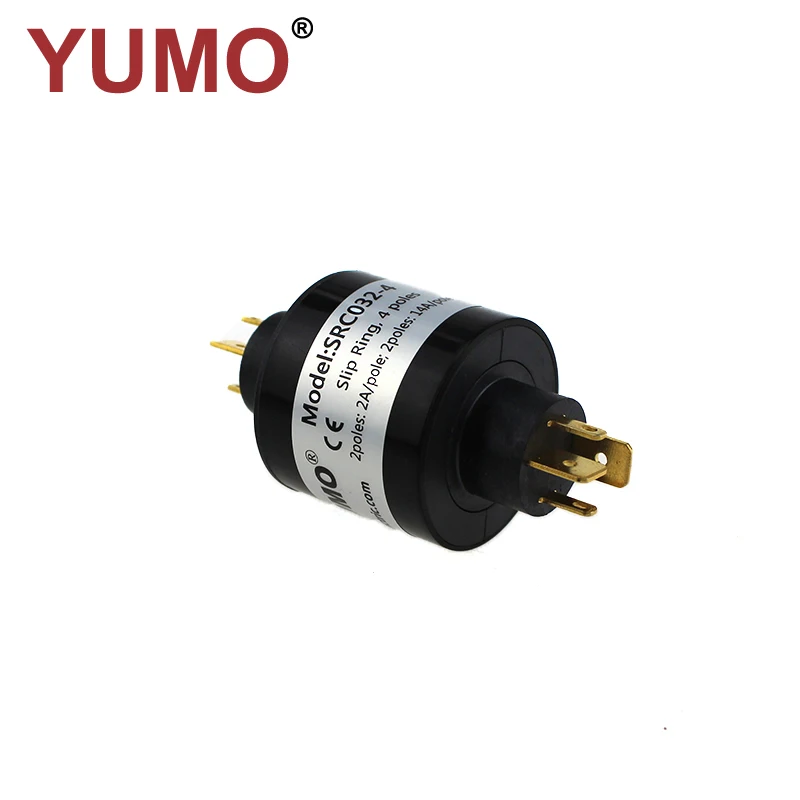

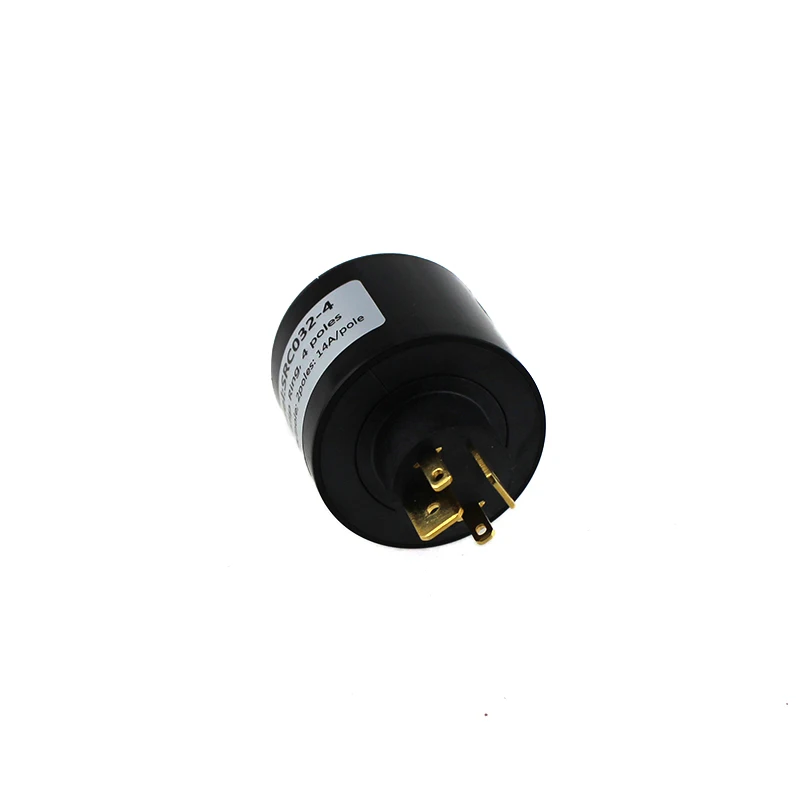

SRC032-4 32mm PIN type slip ring rotary joint electrical connector
- 51.50 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| circuit quantity: | 4poles; | Place of Origin: | Zhejiang China; |
| Contact material: | precious metal; | Voltage: | 230VDC-240VAC; |
| operate speed: | 0-400rpm; | High pot: | 500VAC@50hz; |
| Selling Units: | Single item; | Package Type: | cartons; |
| Code: | SRC032-4; | Current: | Requirested; |

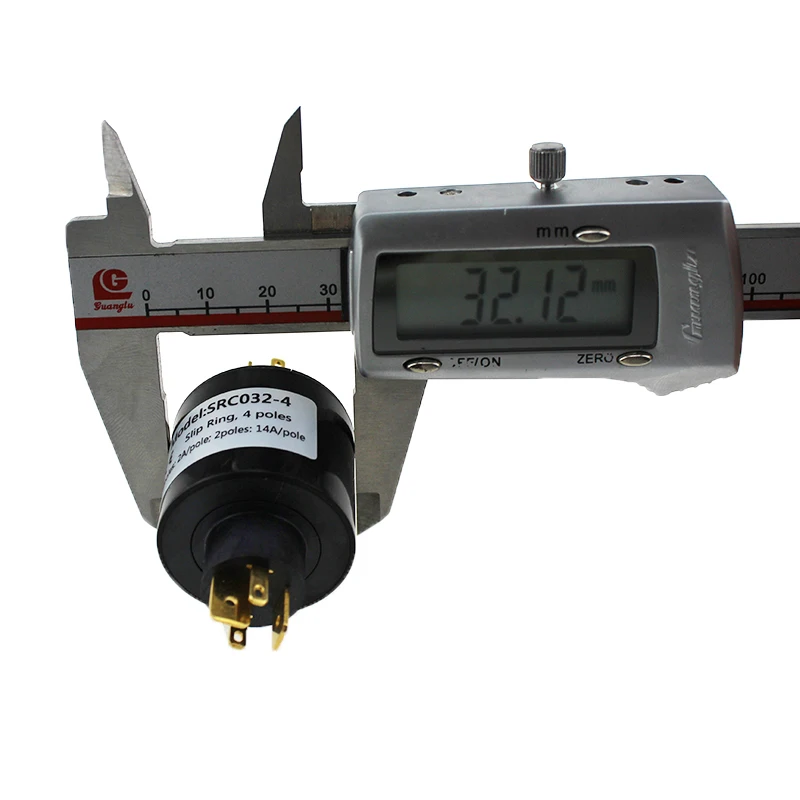

| Housing size: | 32mm; | Brand: | YUMO; |
| Brand Name: | YUMO; | Model Number: | SRC032-4; |
| Single gross weight: | 0.635 KG; | Single package size: | 15X15X10 cm; |
| Insulation Resistance: | 1000MΩ/500VDC; |
SRC032-4 32mm PIN type slip ring rotary
joint electrical connector
| Electrical Date | |
| Rated voltage | 240VDC/240VAC |
| Dielectric Strength | 500VAC@50Hz, 60S |
| Insulation Resistance | 1000MΩ/500VDC |
| Electrical Noise | <0.01Ω |
| Mechanical Data | |
| Rated speed | 0~400rpm |
| Working temperature | -20C~+80C |
| Contact material | Precious Metals |
| Housing Material | Engineering Plastics |
Specification List
+
| Part no. | No. of circuits | Rated Current (Amps) | Outline Dimensions | ||
| 2 | 14 | OD*Length | Pin Thicknss* Width | ||
| SRC032-2 | 2 | - | 2 | 32*28 | 0.8*6.3 |
| SRC032-3 | 3 | - | 3 | 32*28 | 0.8*6.3 |
SRC032-4 | 4 | 2 | 2 | 32*28 | 0.8*6.3 0.8*2.8 |
