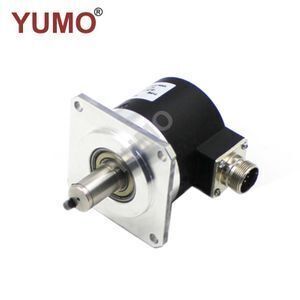

Hot sale ISL5815 68mm square flange Solid Shaft Incremental Rotary Encoder

Supplier: Yueqing Ying's Import & Export Co., Ltd.
Region: Zhejiang, China
Contact: Mr Benjamin Ying
Price: $30.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

shaft diameter:	15mm;	Selling Units:	Single item;
Output:	Digital Sensor;	Protection:	IP51;
Load current:	60mA;	Theory:	Inductance Sensor;
Usage:	Position Sensor;	Model Number:	ISL5815-007C-1024BZ3-5L;
Square flange edge length:	68mm;	Single gross weight:	1.1 KG;
Brand Name:	YUMO;	Number of pulses:	100 200 250 360 400 500 600 1000 1024 1200 2000 2500 2500 4096 5000;
Cable lead out:	Plug connection at side;	output signals:	A,B Z phases;
Output form:	line driver 26LS31/TTL;	Power Supply:	DC5V;
pulse:	1024 p/r;	Package Type:	carton;
Single package size:	10X10X10 cm;	Place of Origin:	Zhejiang China (Mainland);

Hot sale ISL5815 68mm square flange Solid Shaft Incremental Rotary Encoder

Product Description

Features:

A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to an analog or digital code.

There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the current position of the shaft, making them angle transducers. The output of incremental encoders provides information about the motion of the shaft, which is typically further processed elsewhere into information such as speed, distance and position.

Application in heavy duty, especially on CNC machine tools spindle
Flange adapters, long working life, high shock.
Resolution up to 2500 cpr

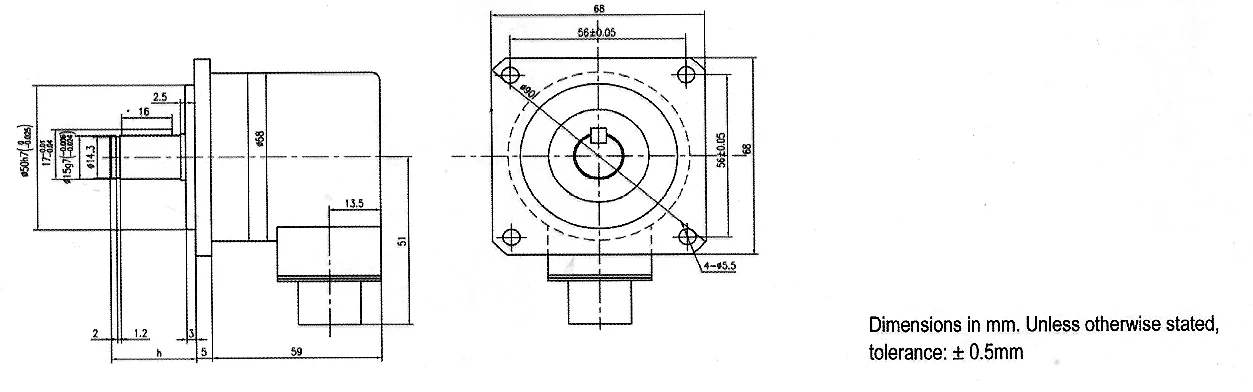

Flange dimension 68*68(mm)

2 quadrature output channel (A&B)

Full impulses under 1024, it is suitable for narrow area application

Application

Rotary encoders are used in many applications that require precise shaft unlimited rotation—including industrial controls, robotics, special purpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and rotating radar platforms.

ISL58 series Solid-shaft Incremental Encoders are widely used in area of automatic control, measurements, robotic X-Y labor and printing. High reliability, long life, strong anti-interference ability and wide range temperature adaption. Square flange, be used in numerical control machine.

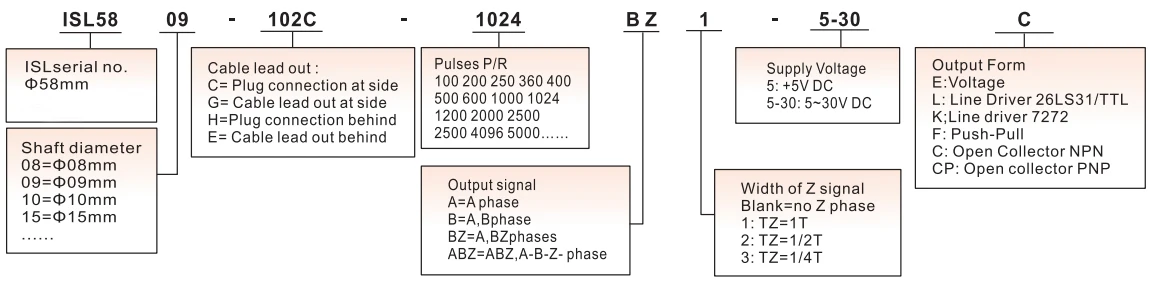

Ordering Information:

Note:
1.Please contact sales representative to confirm the correctness and availability of the part number
2.Line Drink is only available with 5V DC option

Technical Specifications:

Electrical Specification
Output circuit	Line driver output
Power Vcc	5±0.25 5~30
Current	≤150mA
Load current	60mA
High-level output	Min 3.4V
Low-level output	Max 0.4V
Rise Time Tr	Max 200ns
Fall Time Tr	Max 200ns
Max Responding Frequency	300kHz

Mechanical Specification
Max speed(r/min)	Starting Torque	Max. Shaft Loading	Shocking	Vibration
6000	<0.12Nm	Radial:85N, Axial:50N	50G/11-ms	10G 10-2000Hz
Rotor Inertia	Working Temperature	Storage Temperature	Protection Grade	Weight
4*10-8Kgm2	-30~85℃	-35~95℃	IP51	400g

Connection Table:

Signal	A	B	Z	A(-)	B(-)	Z(-)	Vcc	GND	Block
Color	Green	White	Yellow	Brown	Gray	Orange	Red	Black	Copper Web
7Pin Plug	3	5	2				1	4	6
9Pin/10Pin Plug	5	3	2	7	6	8	1	4	9
