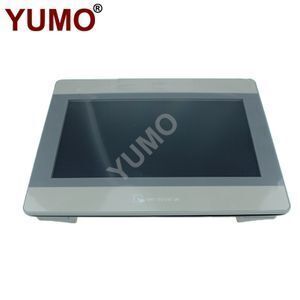

MT8102iE10.1 inch Weintek hmi touch screen

Click here to contact

Product details

Backlight Type:	LED;	Package Preview:	https://sc01.alicdn.com/kf/HTB1B2CrVPTpK1RjSZKPq6y3UpXa7.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1vLICXkCy2eVjSZPfq6zdgpXaN.jpg_640x640.jpg;
Contrast Ratio:	500:1;	Package Type:	Carton;
Single gross weight:	2 KG;	Resolution:	1024 x 600;
Selling Units:	Single item;	Single package size:	40X30X10 cm;
RAM:	128 MB;	Colors:	16.7M;
Interface Type:	DVI,USB;	Brightness (cd/ ㎡ ):	350;
Flash:	128 MB;	Resolution:	1024 x 600;
Screen Size:	10.1";	Backlight Life Time:	>50,000 hrs.;
Storage Temperature:	-20° ~ 60° C (-4° ~ 140° F);	Display:	10.1" TFT;
Place of Origin:	Taiwan, China;	Brand Name:	Weinview;

Product Description

Model		MT8102iE
Display	Display	10.1” TFT
	Resolution	1024 x 600
	Brightness (cd/ m*m )	350
	Contrast Ratio	500:1
	Backlight Type	LED
	Backlight Life Time	>50,000 hrs.
	Colors	16.7M
	LCD Viewing Angle(T/B/L/R)	60/60/70/70
	Pixel Pitch (mm)	0.2175(H) x 0.2088(V)
Touch Panel	Type	4-wire Resistive Type
Touch Panel	Accuracy	Active Area Length(X)±2%, Width(Y)±2%
Memory	Flash	128 MB
Memory	RAM	128 MB
Processor		32-bit RISC 600MHz
I/O Port	USB Host	USB 2.0 x 1
	Ethernet	10/100 Base-T x 1
	WiFi	N/A

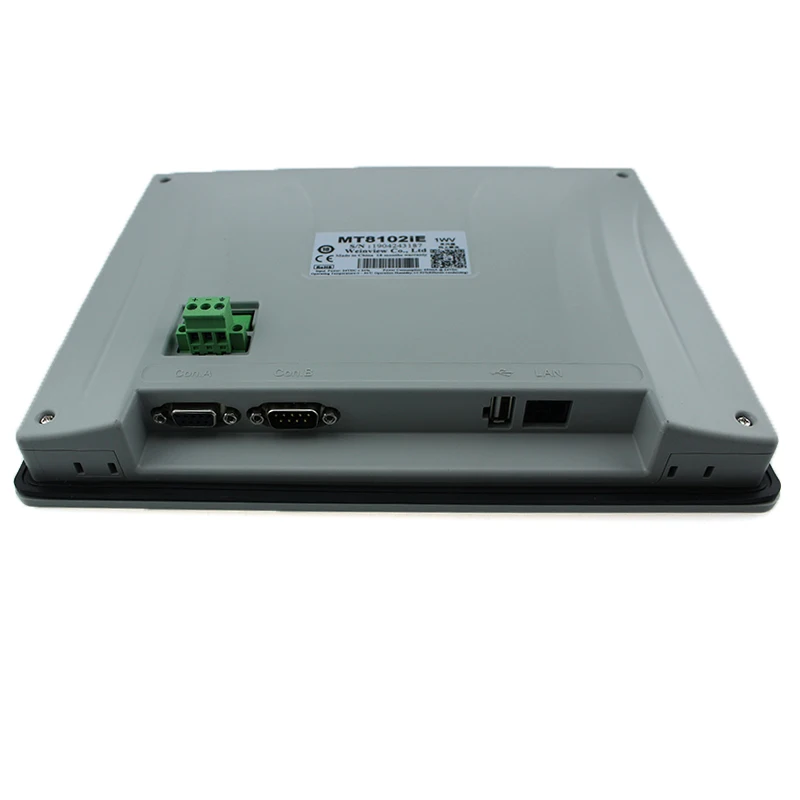

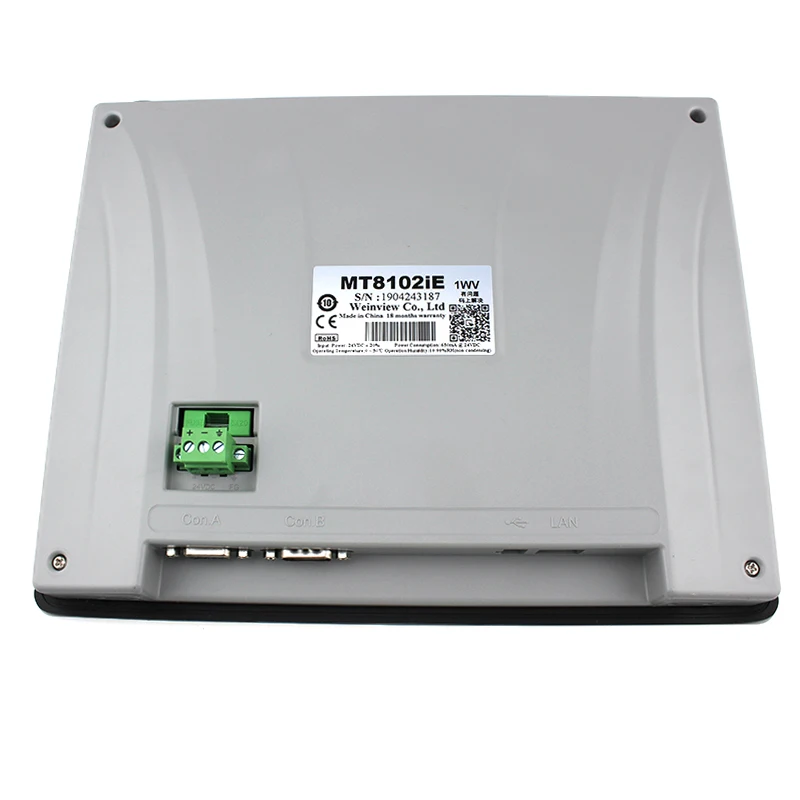

	COM Port	Con.A: COM1 RS-485 2W, COM2 RS-485 2W/4W, COM3 RS-485 2W/4W1 Con.B: COM1 RS-232 / COM3 RS-2322
	RS-485 Dual Isolation	N/A
RTC		Built-in
Power	Input Power	24±20%VDC
	Power Isolation	Built-in
	Power Consumption	650mA@24VDC
	Voltage Resistance	500VAC (1 min.)
	Isolation Resistance	Exceed 50MΩ at 500VDC
	Vibration Endurance	10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Specification	PCB Coating	Yes
	Enclosure	Plastic
	Dimensions WxHxD	271 x 213 x 36.4 mm
	Panel Cutout	260 x 202 mm
	Weight	Approx. 1 kg
	Mount	Panel mount
Environment	Protection Structure	UL Type 4X (indoor use only)*3/ NEMA4 /IP65 Compliant Front Pane
	Storage Temperature	-20° ~ 60° C (-4° ~ 140° F)
	Operating Temperature	0° ~ 50° C (32° ~ 122° F)
	Relative Humidity	10% ~ 90% (non-condensing)
Certificate	CE	CE marked
	UL	cULus Listed (UL 61010-2-201)*3
	ATEX	N/A
Software		EasyBuilder Pro EasyAccess 2.0 (Optional)
