ZZDtouch 50 Inch Touch Sheet 20 Touch Points Transparent Holographic USB Touch Screen Film

Click here to contact

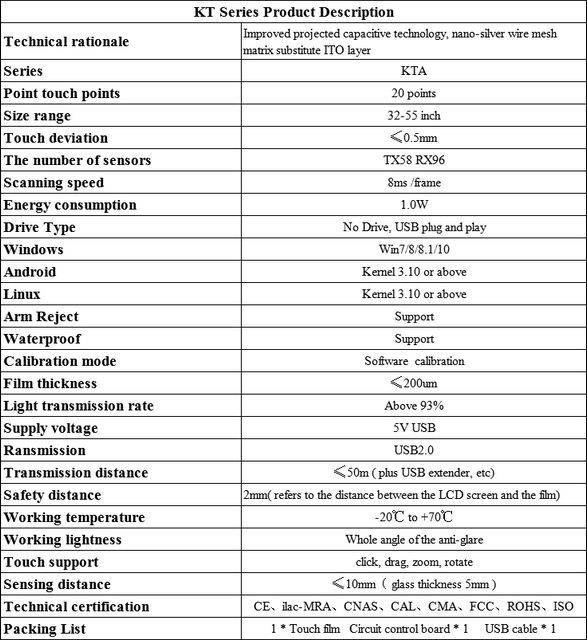

Product details
Packaging Details:cartonproduct status:in stock
Origin:Chinatype:Capacitive
Interface Type:USBDriver type:no driver
Touch bias:less than 0.5mmscreen size:50 inches
Transmission distance:Less than 50m (plus USB extender, etc.)window:Win7/8/8.1/10
Sales unit:single productAndroid:Kernel 3.10 or above
Transmittance:More than 93%Sensing distance:Less than 10mm (glass thickness 5mm)
Calibration method:software calibrationTouch support:Click, drag, scale, rotate
Contact point:20 points (customizable)brand:ZZD touch
Package preview:Gross weight per piece:4.000 kg
Single pack size:86X15X15 cm
Product Description

Capacitive touch film 20 points transparent film

1. The touch film has two outlet positions: long side outlet and short side outlet. The default is the short side outlet, if you need a longer outlet, please contact the seller.
2. The default is 16:9, if you need 16:10, please contact the seller.
contact information
Our factory has specialized in the production of touch screens and all-in-one machines for more than 10 years. Products and services have received positive feedback from all customers.
capacitive touch film
CapacitiveTouch foil sizes from 15 to 200 inches.With 12 / 20 / 30 / 40 touch points,USB cable, plug and play, no driver required.
It supports windows 7 / 8 / 10 / mac / linux / android operating system.
Infrared touch frame
Infrared touch frame size from 15 inches to 300 inches. With 2/4/6/10 points touch, USB cable, plug and play, no driver required.
It supports windows 7/8/10/mac/linux/android operating system.
Infrared touch all-in-one machine
1. The rare narrow border is only 10-15mm, which is as narrow as the LCD screen.
2. The rare ultra-shallow touch depth is only 2-3mm.
3. Fully sealed design, low power consumption, IP65 waterproof.
4. No black edges, high light transmittance, true color reproduction, and can work normally under complex outdoor light sources.
5. The shell is made of high-quality metal materials, and the powder spraying process is painted.
6. Long service life, the screen is vandal-proof, wear-resistant, scratch-proof/dust-proof.
7. High stability, no drift, not affected by time and environmental changes.
8. The response speed is fast (≤15ms), and there are no blind spots, breakpoints, jump points, pauses and other bad phenomena.
application:

1. Interactive Whiteboard

2. Self-service kiosks

3. Touch table

4. Magic mirror

5. Gaming equipment

6. Public inquiry machine

7. Industrial control system

8. Healthcare kiosks

9. Indoor and outdoor advertising kiosks

10. LCD monitor/computer monitor/computer/TV

11. Any interactive machine

Glass:

1. Choose glass that does not contain conductive materials, including coatings, that cannot conduct electricity.


2. In the actual project, the glass thickness is 12mm, but it is recommended not to exceed 8mm. If it exceeds 8mm, please let us know in advance.


3. In the absence of conductive substances, AR and GR treatments can be performed on glass.


4. Adhesive glass is recommended to be tested first, penetration cannot be guaranteed. If there is paint on the glass, screen printing is recommended.


5. Especially avoid the use of water-soluble paint, or paint that is easy to peel off, which will make the painting process difficult to handle. If the paint is very thick, it is recommended to scrape the inner edge with a blade at a right angle, otherwise it will be difficult to scrape off the water on the inner edge when the film is pasted, and air bubbles will easily occur.

Touch foil:
1. Our touch film supports Windows7/8/8.1/10, Android, Linux, macOS is not supported.
2. Please watch the installation video of the touch film on the details page before installation.
3. After placing an order, please contact the seller to provide calibration software.
4. The touch film must stick to the glass with a cleaner. Detergent consists of dishwashing liquid and water in a ratio of 1:400 or 1:500.
5. Please read the glass precautions carefully.
Package:
Payment and Shipping:
1. We accept Trade Assurance Order, Western Union, Paypal, T/T. PayPal and T/T should add extra bank transfer fee 5%, Alibaba order add fee 2%.
2. Minimum order of 100 piecesThe quantity accepts 30% advance payment, and the balance 70% is paid before shipment.
3. By DHL/FEDEX/UPS (if everything goes well and there is no customs clearance problem, it usually takes 5-7 working days to reach the destination).
4. By EMS (usually takes 7-15 working days -----shipping to Russia and Ukraine).
5. Take the Russian line(shipping to Russia takes about 18-25 days).
6. Brazilian customers
1) Brazilian customers need to provide us with the CPF/CPNJ tax number to arrange delivery for customs clearance
2) Brazil customers should tell us what value should be posted for customs clearance due to Brazil customs clearance issues.
Taxes and duties:
1. For customers in the South American market, we need you to provide a tax ID number before shipping. Brazil-CNPJ/CPF, Chile-RUT Number, Argentina-CUIT Number, Colombia-NIT Number, Peru-IVA Number, Venezuela-RIF Number.
2. Our prices do not include destination tariffs. Different countries have different tariffs, which is the buyer's responsibility.
Warranty:
12 months. It is strictly forbidden to disassemble any parts of the machine without authorization.
oxygenYour company:
our service:
1. As a professional manufacturer and supplier of touch screen monitors for more than 9 years, we have won customers with good quality, best service and competitive price.
2. Our products are 100% original and have undergone strict QC inspection before shipment.
3. Professional and efficient sales team will serve you wholeheartedly
4. Sample orders are welcome and will be delivered within 3 days.
5. We support trade assurance to ensure on-time shipment and product quality.
6. We provide OEM service according to your requirements.
7. We provide 12 months maintenance warranty for our products.
