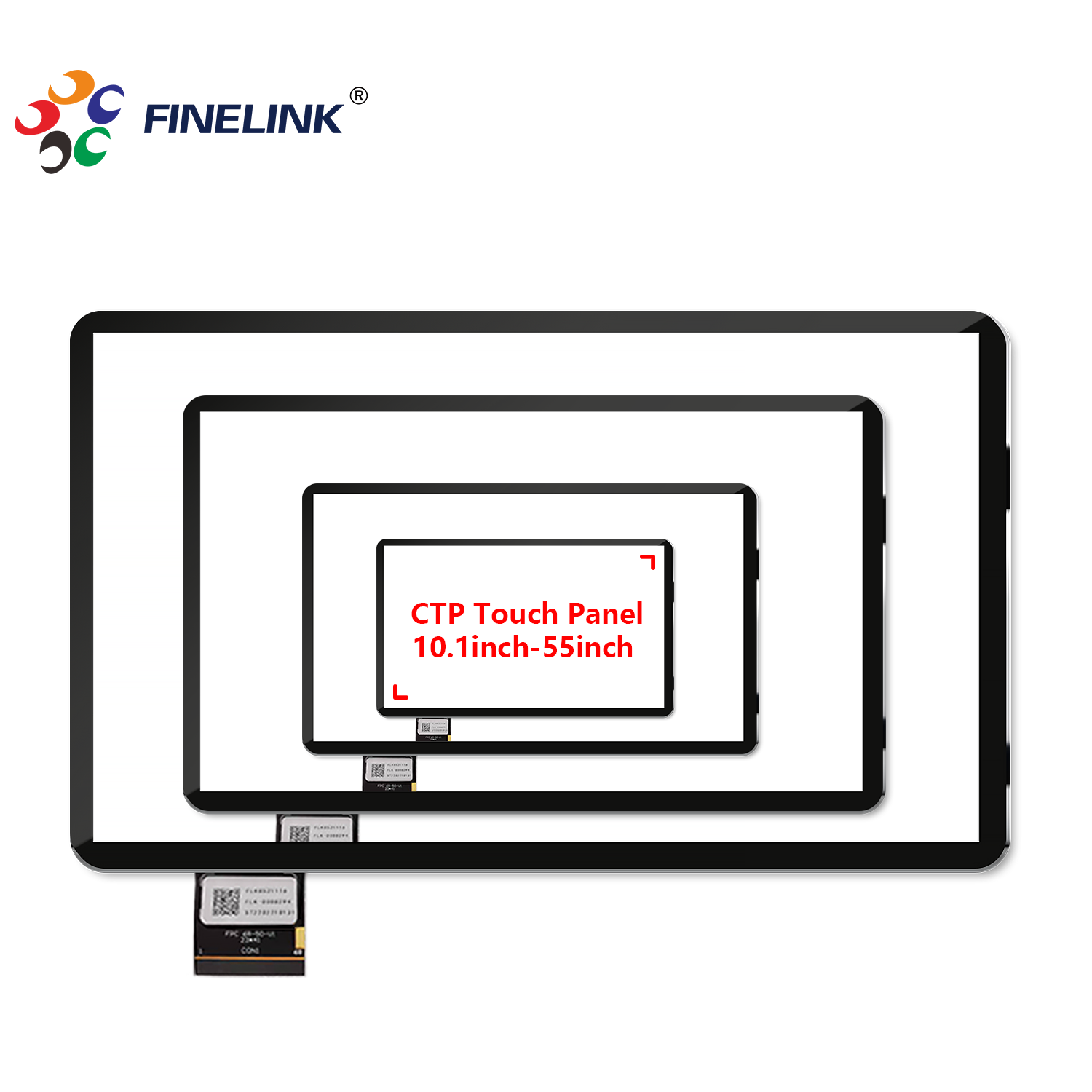

Touch Screen Panel Hot Sale EETI ILITEK 10.1 Inch Multi-touch Industrial Tablet PC HMI Capacitive LCD Display

Supplier: Hubei Finelink Photoelectric Co., Ltd.
Region: Guangdong, China
Contact: Mr Mark Yue
Price: $28.00 / 2 - 499 pieces
$21.00 / 500 - 999 pieces
$20.00 / 1000 - 9999 pieces
$16.00 / >=10000 pieces
Min. Order: 2 pieces

Click here to contact

Product details

solution:	EETI/ILIEK	product status:	new
port:	Shenzhen	brand:	Jinglian
Interface Type:	USB RS232 RS485 VGA DVI, usb	Supply capacity:	3000 pieces per day
series:	business use	Package preview:
application:	machine automation	type:	Capacitive
After-sales service:	Call center and online technical support, free spare parts	color:	black, black
payment terms:	L/C, Western Union, D/P, T/T	structure:	glass+glass
aspect ratio:	16:10	Packaging Details:	Standard packing in carton or wooden case 1. The touch screen is packed with foam plastic material; 2. Packed in carton or wooden case.
Angle of view:	254*172	place of origin; place of origin:	Guangdong, China
pack:	Yes	Warranty (year):	1 year

Specification

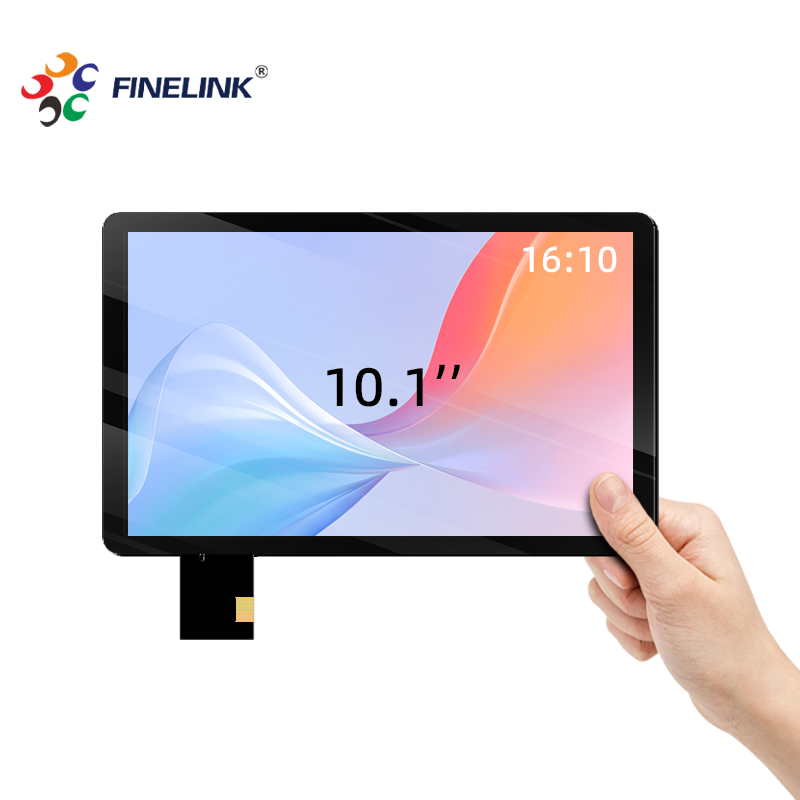

thing	10.1 inch capacitive touch panel
ratio	16:10

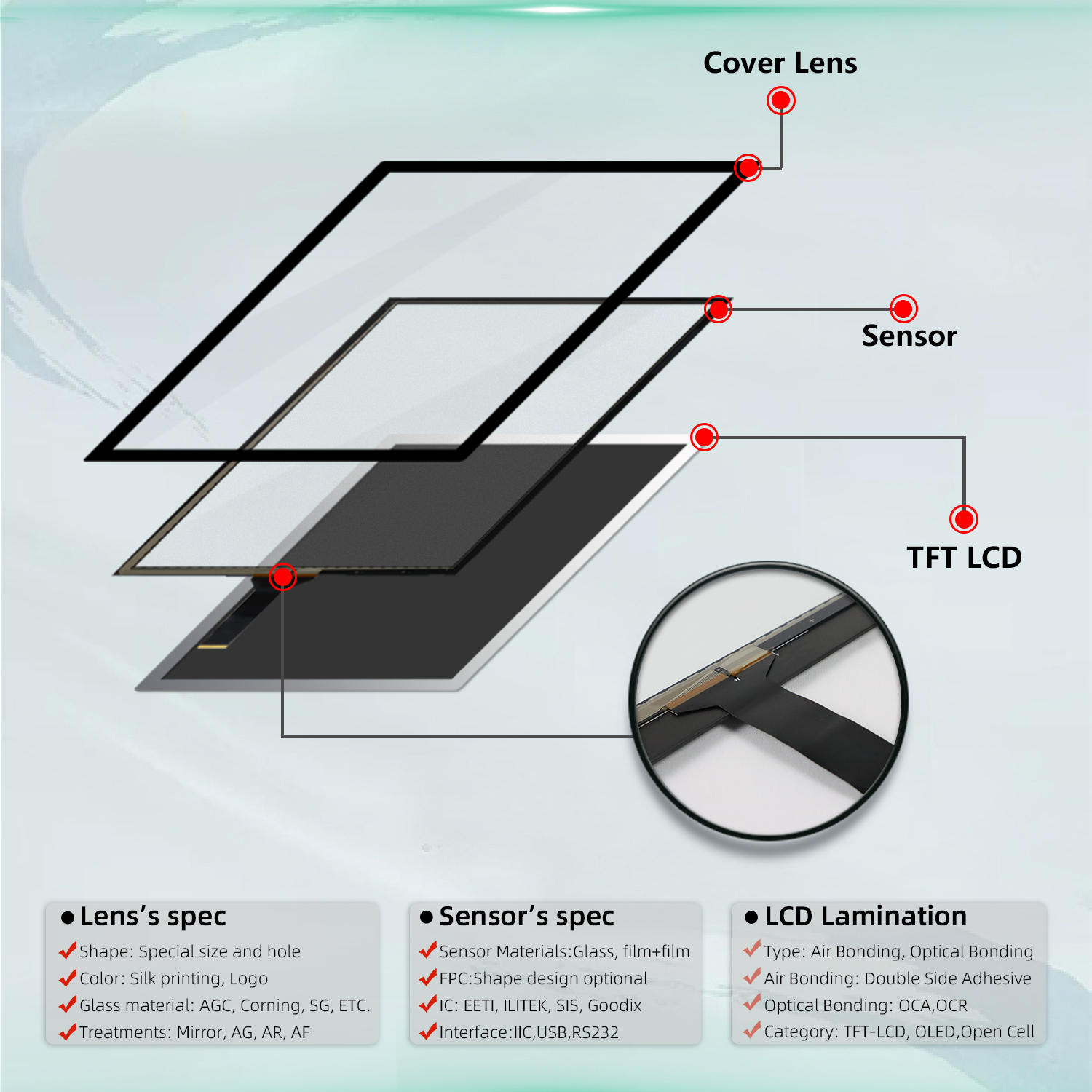

structure	G+G
type	Capacitive
touch controller	EETI/ILITEK
connect	COB

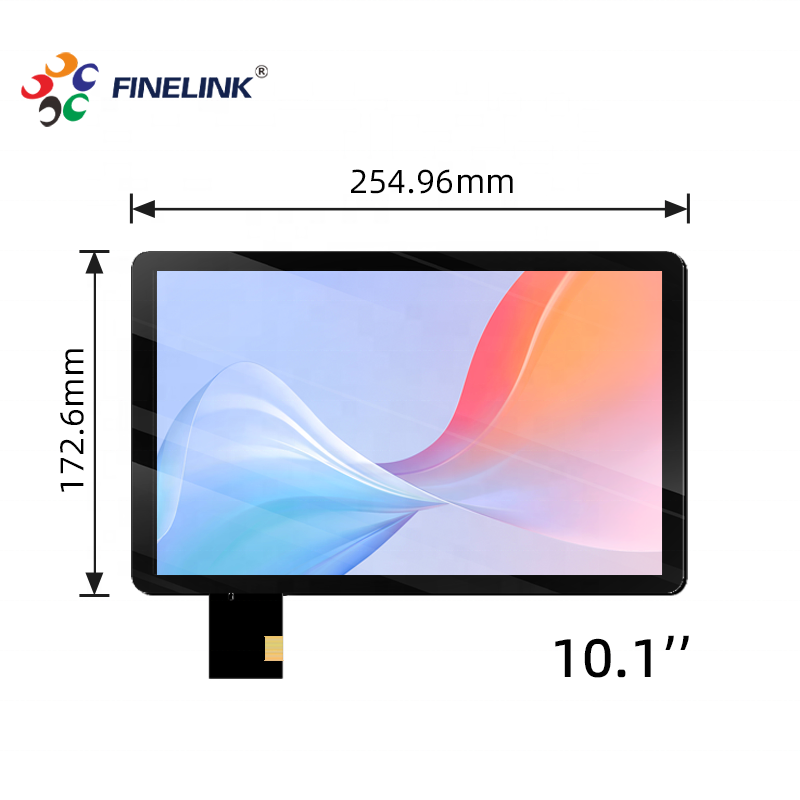

Lens outer diameter	254*172mm
Sensor outer diameter	229*151mm
Cover slip (T)	2mm
Sensor(T)	0.7mm
Surface hardness	≥6H
Transmittance	≥85%

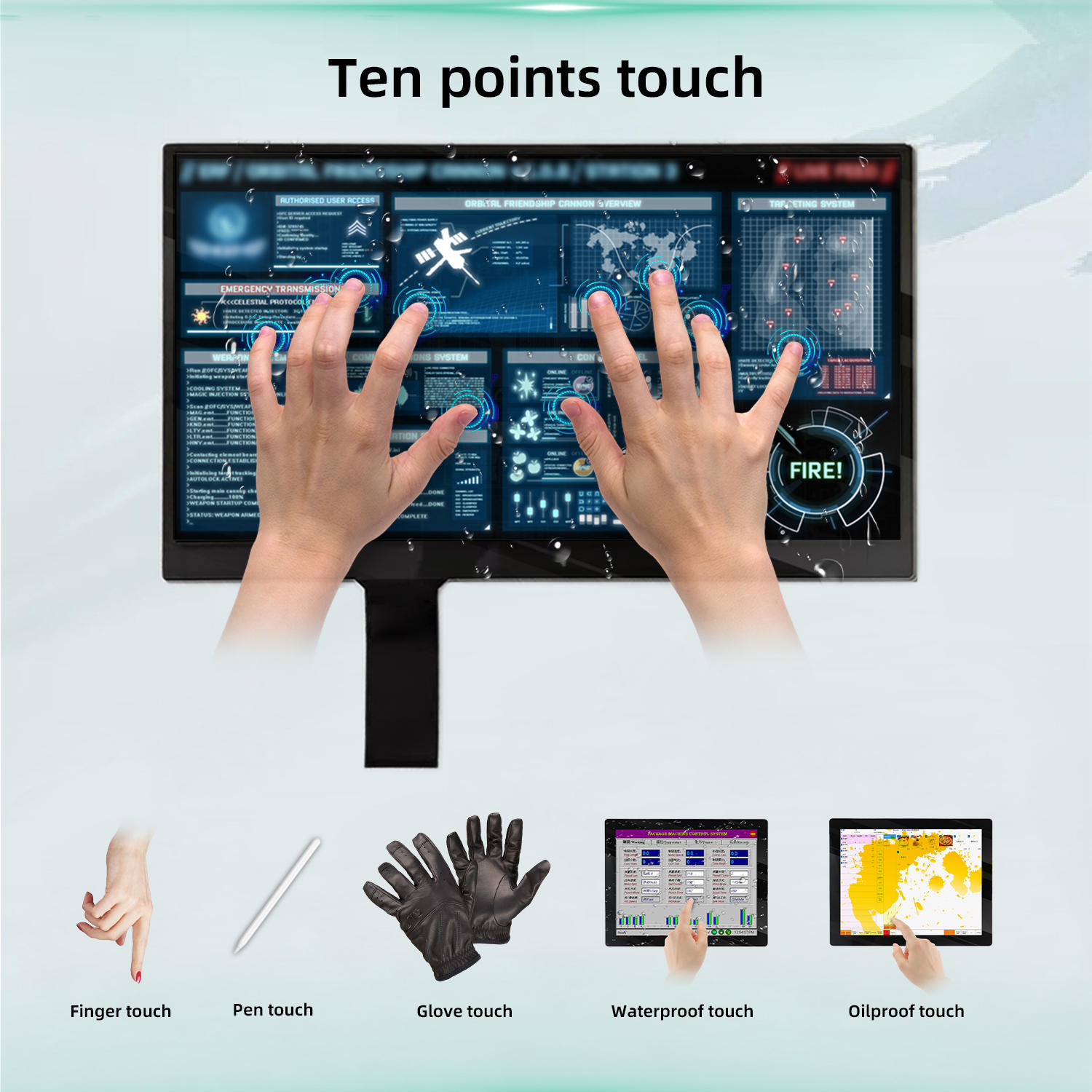

Contact point	10 O'Clock
Operating temperature	-20℃~+60℃
Interface Type	USB, RS232, I2C
color	Black, white, transparent, optional color

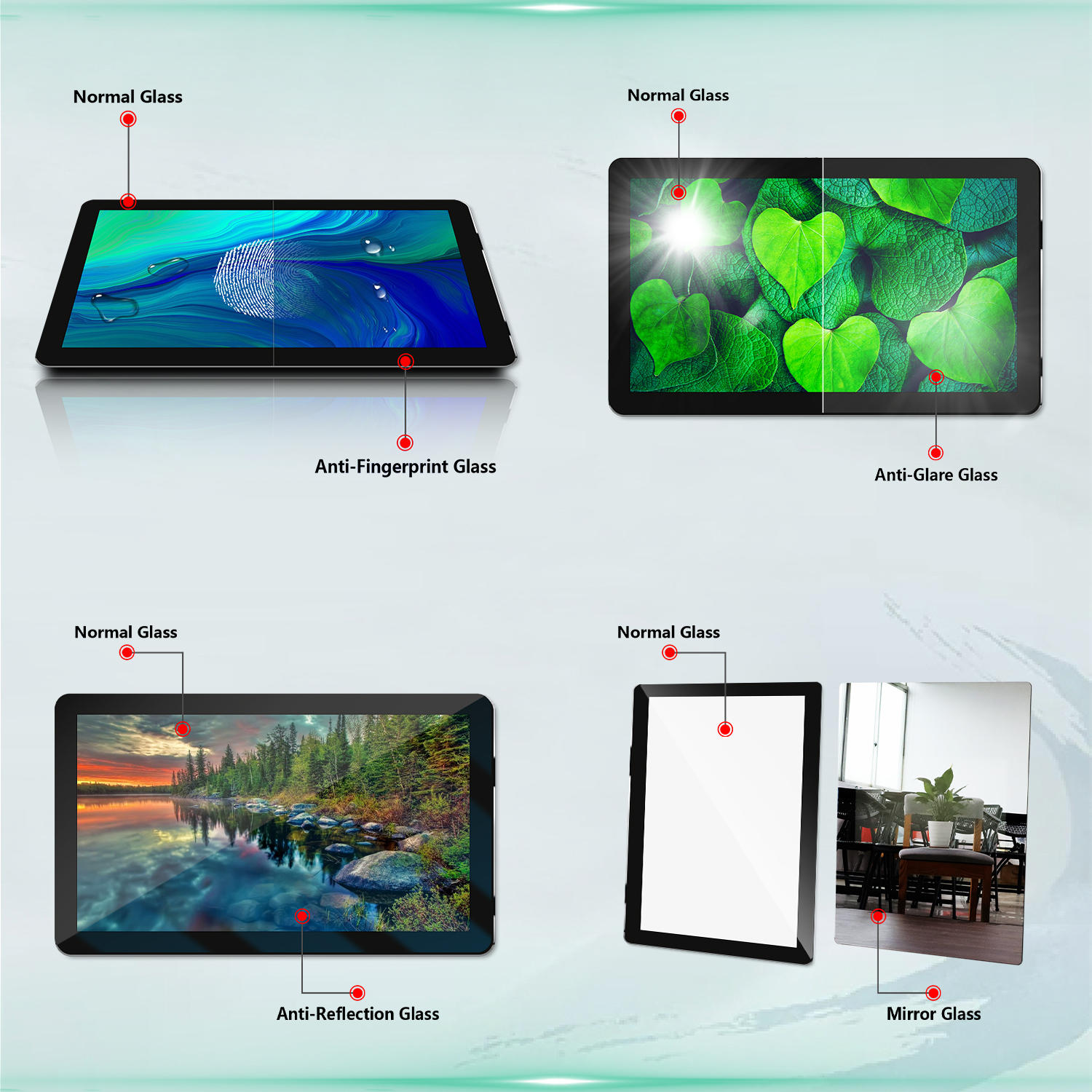

custom made	AG/AG/AF/AM/AH/waterproof/glove touch
operating system	WinXP/7/8/10, Android, IOS, Mac, Linux
application	Industrial, medical, banking, consumer, military, education, HMI....
Warranty	12 months (up to 3 years)
