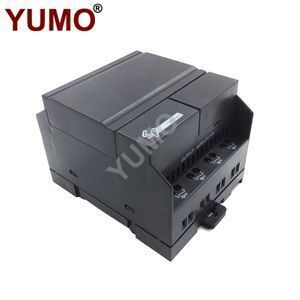

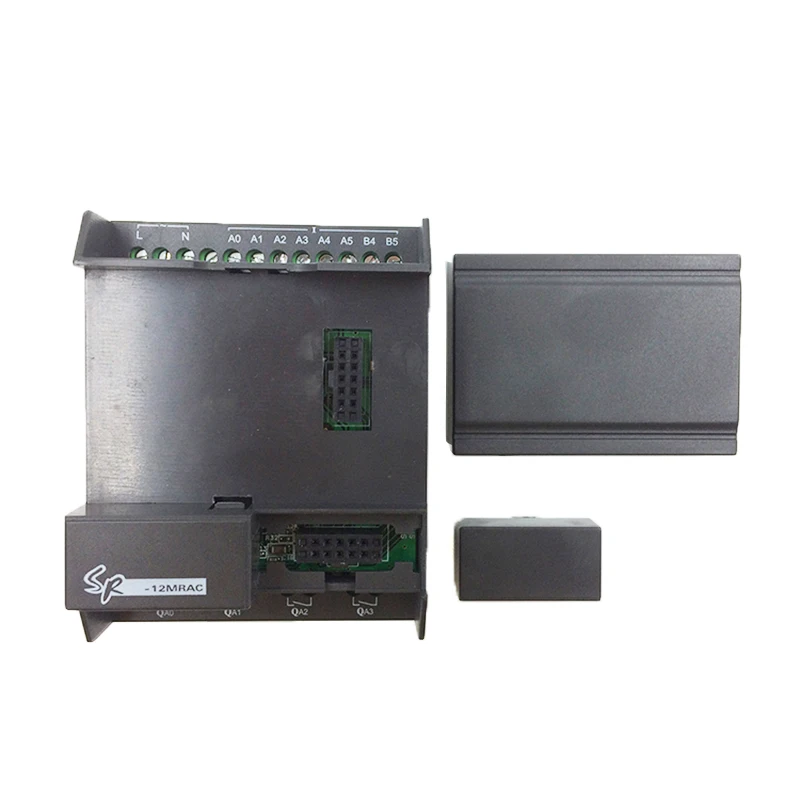

YUMO SR-12MRAC plc controller 8 Points AC input 4 points relay output Mini PLC

Supplier: Yueqing Ying's Import & Export Co., Ltd.
Region: Zhejiang, China
Contact: Mr Benjamin Ying
Price: $53.03 /piece
Min. Order: 1 piece

Click here to contact

Product details

Isolation intensity:	IEC1131;	Quality:	Reliable;
Input:	8 Points AC;	Voltage:	100-240VAC;
Place of Origin:	Zhejiang China (Mainland);	Single gross weight:	1 KG;
Model Number:	SR-12MRAC;	Website:	www. yingselectric.com;
Brand Name:	YUMO;	Package Type:	Carton SR-12MRAC Programmable Logic Controller;
Protection:	IP20;	Single package size:	20X20X25 cm;
Output:	4 points relay;	Name:	Programmable Logic Controller;
Selling Units:	Single item;

YUMO SR-12MRAC 8 Points AC input 4 points relay output Mini PLC Programmable Intelligent Logic Controller PLC

Product Description

Features:

1. Powered by: 100-240VAC
2. Input: 8 points DC digital input (with 6 points Analog)
3. Output: 4 points relay output
4. real time clock
5. Dimensions: 5" x 5" x 3" approx (13cm x 13 cm x 8cm)
6. Weight: About 9 oz(0.3kg)

Technical Specifications:

Power supply
Power	AC110V-240V
Input parameters:
Input No	8(A0-A5,B4-B5)
Digital input	8(A0-A5,B4-B5)
Analogue input	None
Power range	AC0-240V
Input signal0	AC0-40V
Input signal1	AC85-240V
Output parameters:
Output No	4(QA0-QA3)
Output type	Relay output
Output voltage	AC0-240V/DC0-24V
Output current	Resistive load 10A/Inductive load 2A
Environment temperature:
Running temperature	0℃~55℃
Storage/shipment	-40℃~70℃
Switch frequency:
Mechanism	10Hz
Resistor/light load	2Hz
Sensitive load	0.5Hz
Other parameters:
Clock buffer memory at 25℃	80h
RTC accuracy	Max±5s/day
Protection	IP20
Emission on line	EN55011(B)
The main frequency range	47-63Hz
Function block No	128
Program storage capacity	64K
Isolation intensity	IEC1131
