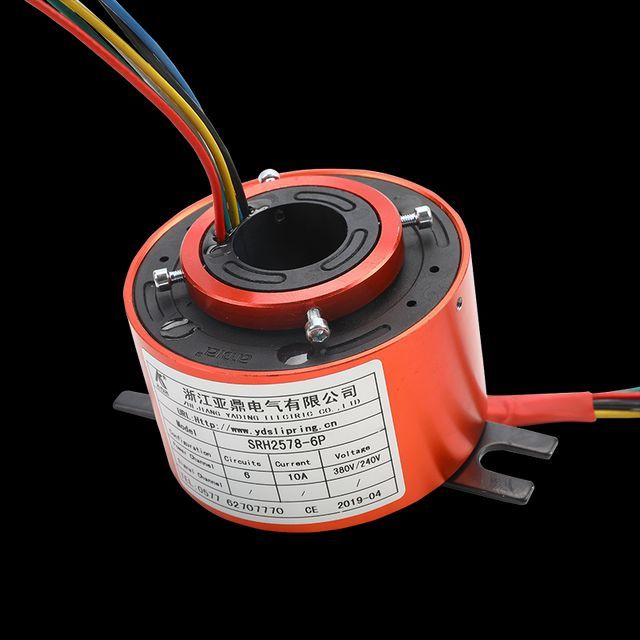

SRH 2578-4P Electrical Slip Ring ID25mm OD78mm 4 Circuits 10A 2220-380v Through Hole Industrial Slip Ring
- 80.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| type: | Through hole slip ring | Contact materials: | gold or silver alloy |
| payment terms: | Western Union, T/T, MoneyGram, PayPal | Speed(rpm): | 0-600 rpm |
| product name: | SRH 2578-4P ID25mm 4 Circuits 10A Industrial Through Hole Slip Ring | Supply capacity: | 100 pcs industrial through hole slip ring per week |
| Origin: | Zhejiang, China | Ring number: | 4p |
| model: | SRH2578-4P | Voltage: | 600VAC/240VDC |
| brand: | ADIA | Protection class: | IP51 |
| Package preview: | Rated current: | 10A | |
| Outer diameter: | 78mm | Housing materials: | ABS engineering plastics |
| Packaging Details: | Industrial through hole slip ring carton packaging | port: | Ningbo |
| Slip ring inner diameter: | 25mm |
SRH 2578-4P ID25mm OD78mm 4 way 10A industrial through hole slip ring
Slip Ring Description
Through-hole slip rings, also known as hollow slip rings with a central hole, are suitable for any device that needs to rotate 360° and needs to transmit power and signals.
feature
1. standard, ready-made
2. Support power supply and signal transmission
3. Advanced multi-point contact brush technology, reliable contact and low friction;
4. Gold Plated Ring and Gold Alloy Brush
5. Better protection of the metal shell;
6. Integrated structure design, easy to install.
7.Customizations acceptable circuit no. , the current and voltage are based on the standard model;
8. Specially designed for through-hole hydraulic or pneumatic rotary shaft installation.
Technical Parameters
| electrical data | value | |
| strength | Signal | |
| Q | 380VAC | 240 AC/DC |
| Insulation resistance | ≥1000MΩ/500VDC | ≥500MΩ/500VDC |
| Conductor size | AWG16 tinned Teflon or PVC insulated wire | AWG16 tinned Teflon insulated wire |
| Conductor length | Standard 300mm | |
| Dielectric strength | 500VAC@50Hz 60s | |
| electrical noise | <0.01Ω | |
| mechanical data | value |
| Speed of work | 0-800rpm (or higher) |
| Operating temperature | -20°C-+80°C or -40°C-+80°C |
| Working humidity | Above 60%RH |
| contact material | precious metal |
| casting material | industrial metal |
| Operating torque | 0.1N/m for 6 turns, the torque increases every 6 turns |
| degree of protection | IP51 |

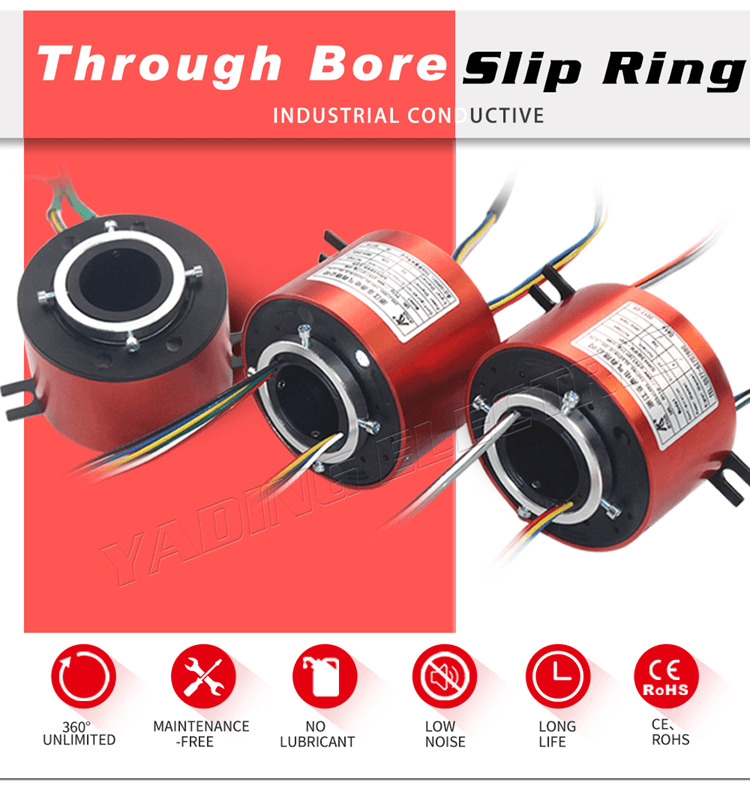

advantage

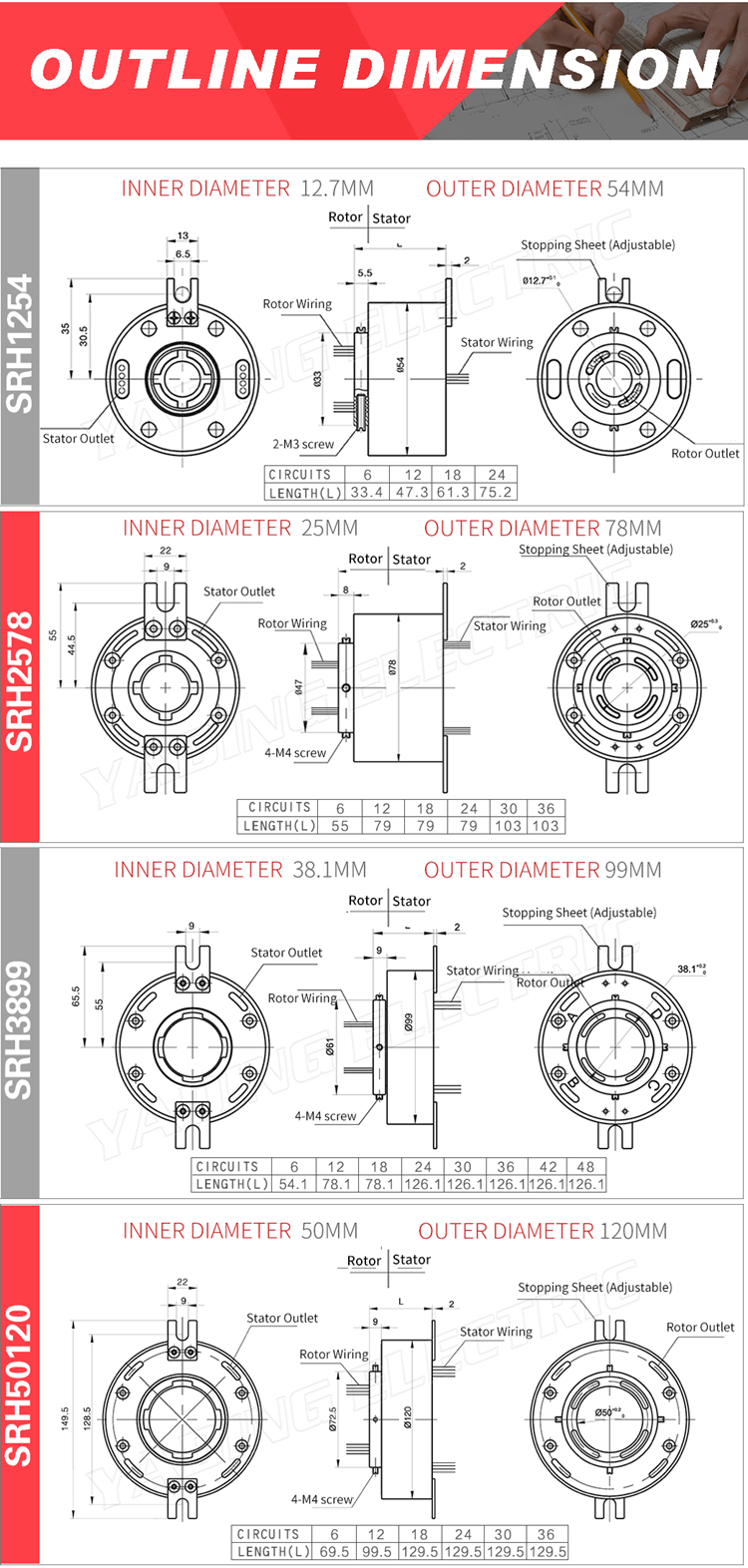

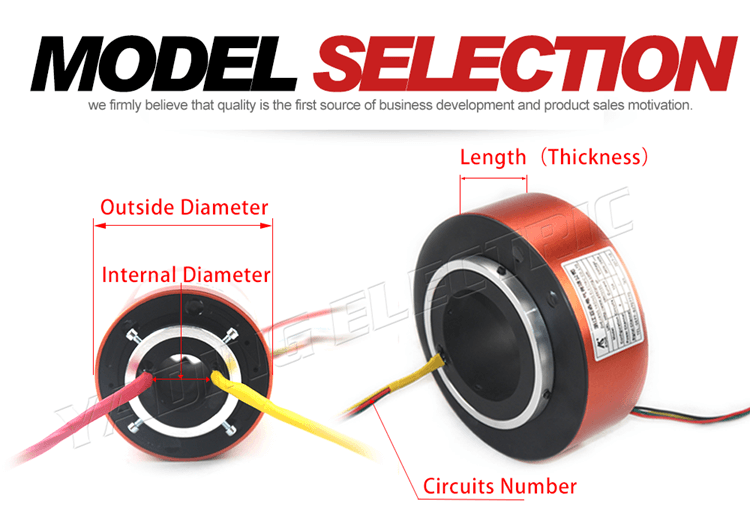

selection

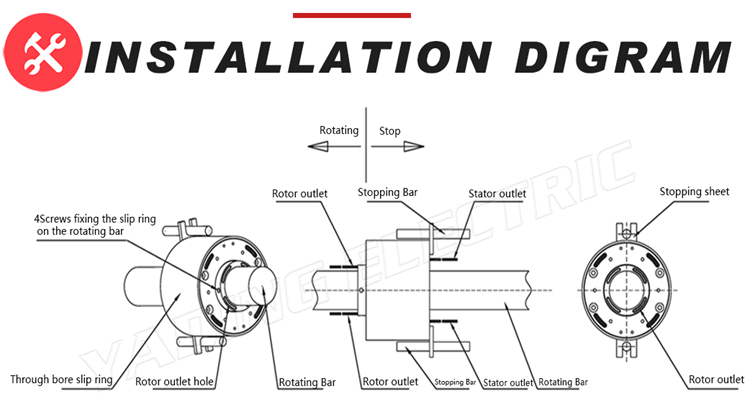

instructions
Quality Control and Certificates
