Keyland 20W pv cell fiber laser cutting machine with smooth scribing details
Control Software:Laser Scriber;Scribing Width:30μm;
Scribing accuracy:±10μm;Brand Name:Keyland Laser /OEM;
Application:Laser Scribing;Working Area:350*350mm;200mm*200mm;
Port:Shanghai/Be appointed;Working Power:380(220V/110V)50Hz/60Hz /1kVA;
Laser Wave length:1064nm;Graphic Format Supported:AI,BMP,DST,DWG,DXF,DXP,LAS,PLT;
Place of Origin:Hebei China (Mainland);Laser Power:10W 20W 30W 50W;
Certification:CCC,CE,GS,ISO,SGS,FDA;Cooling Mode:Air Cooling;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;After-sales Service Provided:Engineers available to service machinery overseas;
Supply Ability:5000 Set/Sets per Year;Delivery Detail:8 working days;
Packaging Detail:International Solar pv cell fiber laser cutting machine package;CNC or Not:Yes;
Laser Type:Fiber Laser;Working Table:Negative pressure adsorbing&dust elimination;
Model Number:GSC-10/20/30/50;Applicable Material:Solar cell wafer;
Temperature control precision:0.5°c;Scribing speed:120-300mm/s;
Laser beam quality:TM00;

2016 Patent Model Semi-Automatic

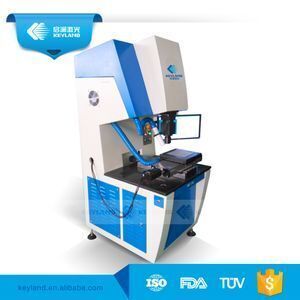

Keyland 20W pv cell fiber laser cutting machine with smooth scribing





Laser power: 10W 20W  30W 50W Fiber Laser

pv cell fiber laser cutting machine  is suitable for cutting,scribing of solar PV industry,just like mono crystalline silicon,poly crystalline silicon solar cell,amorphous ribbon silicon and silicon wafers.



KCS-20FA automatic solar cell laser scribing equipment for silicon solar cell scribing processing, 156 * 156mm size solar cell divide into 2/3/4/5 aliquots.

The equipment has automatic working function, including automatic loading-- automatic identification positioning- automatic scribing-automatic broken-automatic sorting-automatic unloading-dust collection and dust removal.

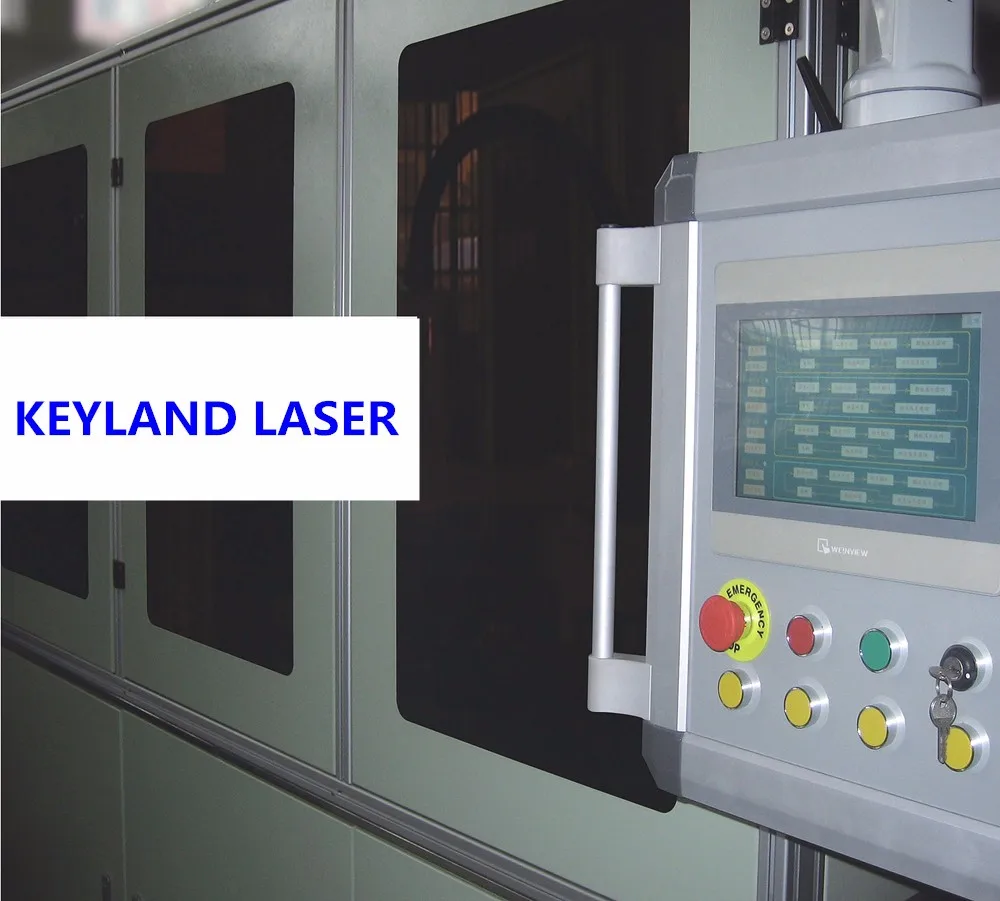

Details of  pv cell fiber laser cutting machine



+

Model

GSC-10F                      |GSC-20F

Laser wavelength

1064nm

Laser power

10W                               |20W  30W 50W

Scribing/cutting width

30μm

Scribing /cutting speed

0-300mm/s

Scribing/cutting accuracy

±10μm

Working area

350x350mm or 200mm*200mm (option)

Temperature control precision

0.5°C

Working power

380V(220V)/50Hz/3kvA or 110V/60Hz

Working table

negative pressure absorbing and dust elimination

Cooling method

forced air cooling





Our pv cell fiber laser cutting machine  's Characters:

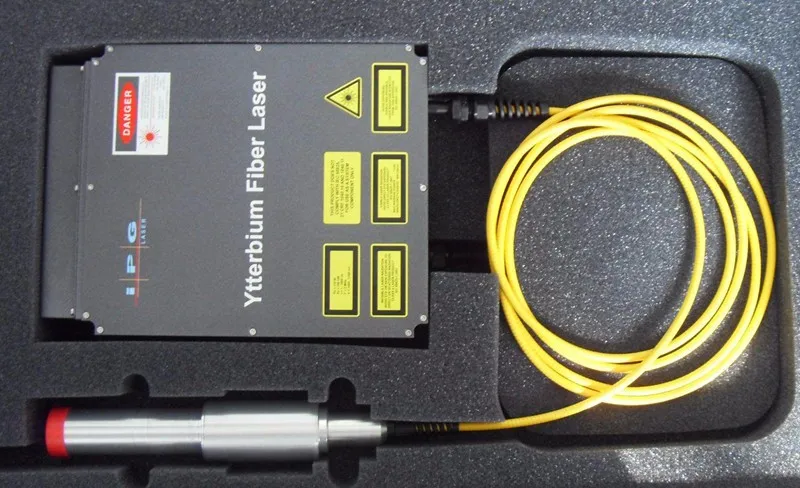

1. Imports of fiber lasers, to adapt to the environment more strong, and the better beam quality(mode TEM00) ,kerf finer,more smooth edge

2. Small size  Compact design for easy moving and handling,in line with moder business management 6s

3.High efficiency electro-optical conversion.

4.High precision and Air cooling

5.Stable and continuous processing but lower operation cost

6.Easy&convenient operation

7.Maintenance-free (no damageable parts&consumable parts be replaced)

8.Touch screen control,servo motor for option

9.Automatic absoption and without foot pedal

10.Imported Core parts

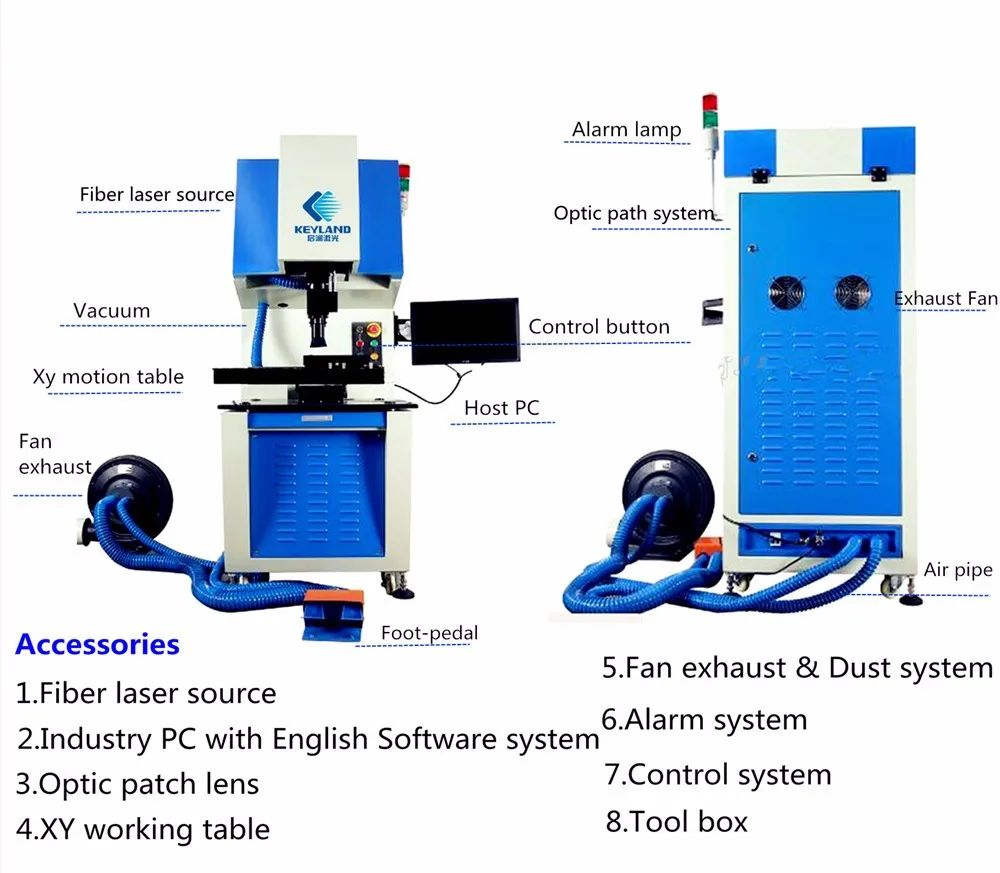

Details of pv cell fiber laser cutting machine   :

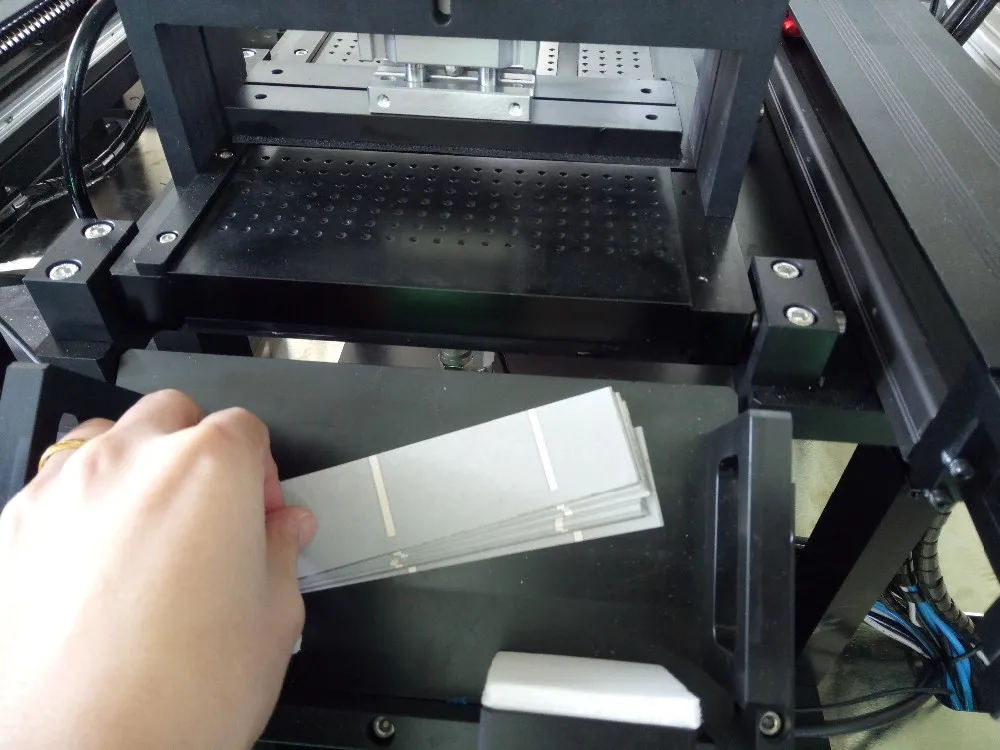

Scribing Cutting solar cell/wafer sample :

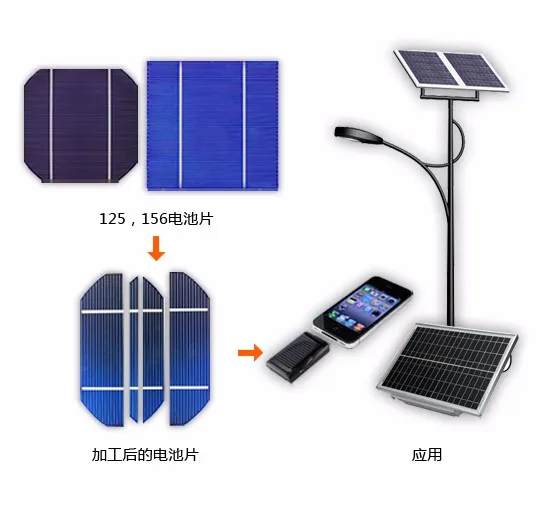

 Broken cell is used for Solar lamp,Sun hat,Sun toy,solar air conditioning and etc.



 Application of  pv cell fiber laser cutting machine   :

Notice:

Solar pv cell fiber laser cutting machine  agents wanted all over the world.

Hope our good quality,comprehensive service and competitive price will help you expand your marketing sucessful.
