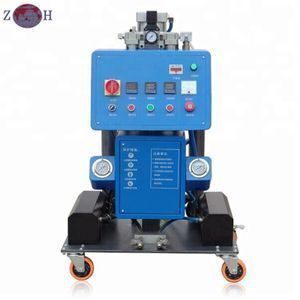

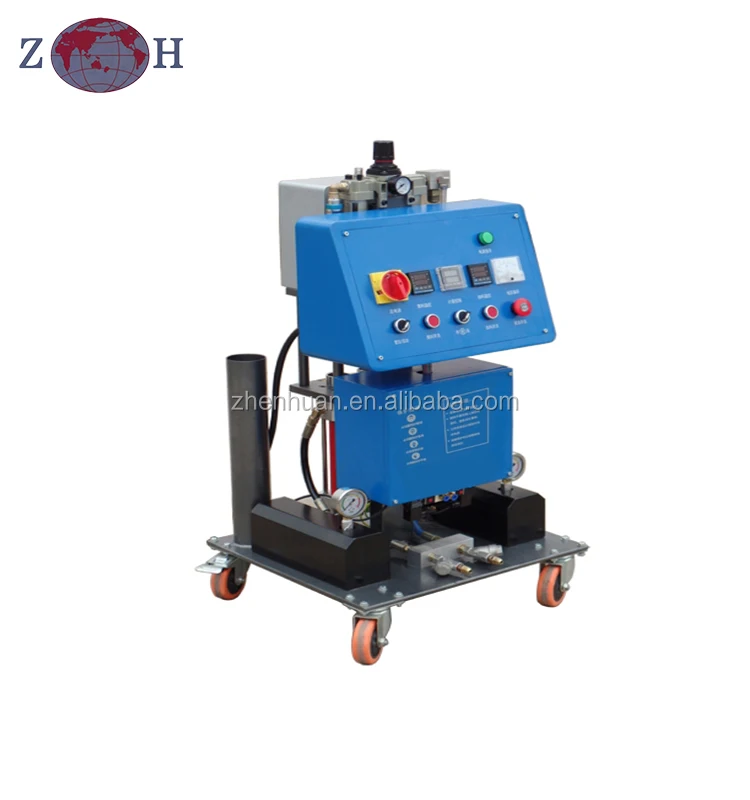

High pressure polyurethane spray foam machine

Supplier: Nantong Zhenhuan Trade Co., Ltd.
Region: Jiangsu, China
Contact: Mr Franks Cao
Price: $3800.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support;	Voltage:	380/220V;
Dring type:	Pnematic;	Supply Ability:	100 Set/Sets per Year;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Air compressor:	0.5-0.8MPa;
Brand Name:	ZHENHUAN;	Processing Type:	Foaming Machine;
Flux capacity:	2-12kg/min;	Model number:	GZ-2600;
Condition:	New;	Connecting hose length:	15m, can be extened to 90m;
Applicable Industries:	Hotels,Building Material Shops,Manufacturing Plant,Construction works ;	Place of Origin:	Shandong China;
Port:	Qingdao;	Raw materia:	Iso and Poly;
Packaging Detail:	Sea worthy wooden case.;	Dimension(LWH):	600 x 700 x900mm;
Weight:	175KG;	Power(W):	11kW;
Mixing ratio:	1:1, fixed ratio;	Key Selling Points:	Energy saving;
Warranty:	one year since B/L date;	Heating power:	11kW;
After-sales Service Provided:	Engineers available to service machinery overseas;	Cleaning system:	Pneumatic cleaning;

This polyurethane spray foam machine is used for wall, roof ceiling, refrigeratory, and box, pipe insulation purpose.

We can supply both high pressure and low pressure spray foam machine.

Feature of Polyurethane spray foam machine

Light and small, suitable for site work
Pneumatic motor
High precision proportion pump
Main machine heating system
Euipped with emergency switch

Main technical data of polyurethane spray foam machine

No.	Item	Technical data
1	Model number	GZ2600
2	Flux capacity	2-12kg/min
3	Working pressure	11MPa
4	Heating power	11 kW
5	Equipped pipe length	15 meters heating pipe (can be extended to 90m)
6	Air compressor	0.5-0.8MPa (to be equipped by buyer)
7	Dimension	700 x 900 x 1300mm
8	Weight	175kg
9	Ratio between A and B	1 : 1
10	Driven type	Pneumatic
11	Voltage	380V, 50Hz, 3P, could be customized

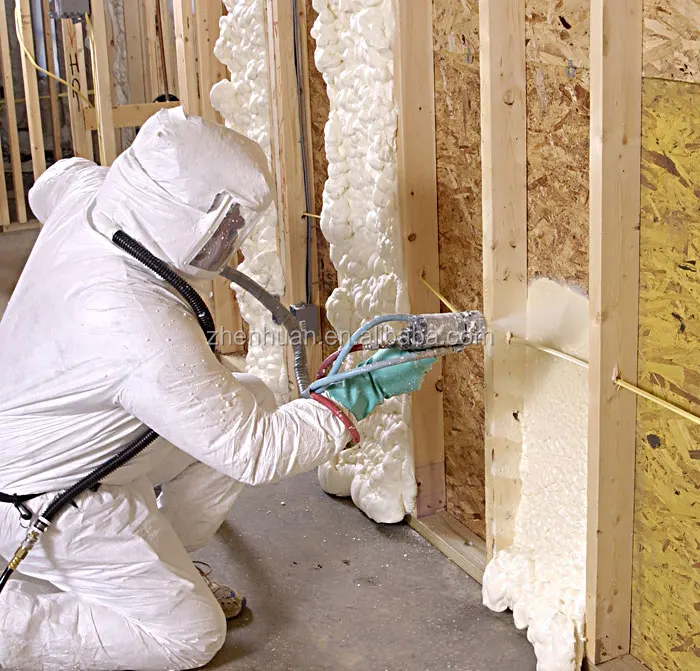

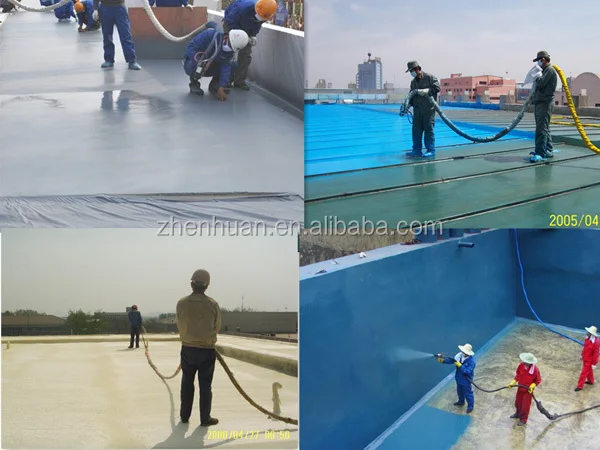

Working photos of polyurethane spray foam machine

Polyurethane spray foam machine | Polyurethane spray foam machine | Polyurethane spray foam machine | Polyurethane spray foam mac

Our Nantong Zhenhuan Trade Co., Ltd. is specialized in machines for more than 15 years, and has certified by TUV, BV, SGS, with good reputation and credit. We can provide you not only good quality polyurethane spray foam machine but also good after-sale service.
