Q2600 Polyurethane Foam Sprayer

Supplier: Jinan Demeijia Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Demeijia Group
Price: $2600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type of machine:	Injection machine	Function:	PU foam insulation
ratio:	1:1-1:2	Product Category:	Sprayer
Mechanical test report:	if	output:	2-12 kg/mint
Packaging Details:	Inside of Q2600 polyurethane foam spraying machine: stretch film outside: fumigation-free wooden box packaging	Origin:	Shandong China
Heating temperature:	80°C	Voltage:	220-380V
Dimensions (LWH):	0.911.4m	Power (kW):	Maximum 30kw
Supply capacity:	100 sets per month	port:	Qingdao/Shanghai
Local service location:	Canada, Turkey, United Kingdom, United States, Brazil, Peru, Pakistan, Mexico, Russia, Spain, Australia, Kenya, Chile, United Arab Emirates, Colombia, Romania, South Africa	type:	pneumatic and hydraulic
Weight (kg):	160 kg	Advantage:	air self-cleaning
payment terms:	L/C, T/T, Western Union	Material:	polyurethane foam
After warranty service:	Video technical support, online support, spare parts	pressure:	11-24 MPa
Certification:	ce	Core components:	Pump
Video shipment inspection:	if	brand:	DMJ
Main selling points:	automatic	product name:	Q2600 polyurethane foam spraying machine
Applicable industries:	Hotels, building materials stores, manufacturing plants, machinery repair shops, farms, restaurants, home furnishing, construction projects, advertising agencies	Showroom location:	Canada, United Kingdom, United States, Brazil, Peru, Pakistan, Mexico, Russia, Spain, Thailand, South Korea, Romania, Ukraine, Australia
Warranty:	2 years	Processing type:	foam machine
After-sales service provided:	Video technical support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, online support	Marketing Type:	New Products 2020
Health status:	new	application:	pu foam and polyurea
Core component warranty:	1.5 years

Product Description

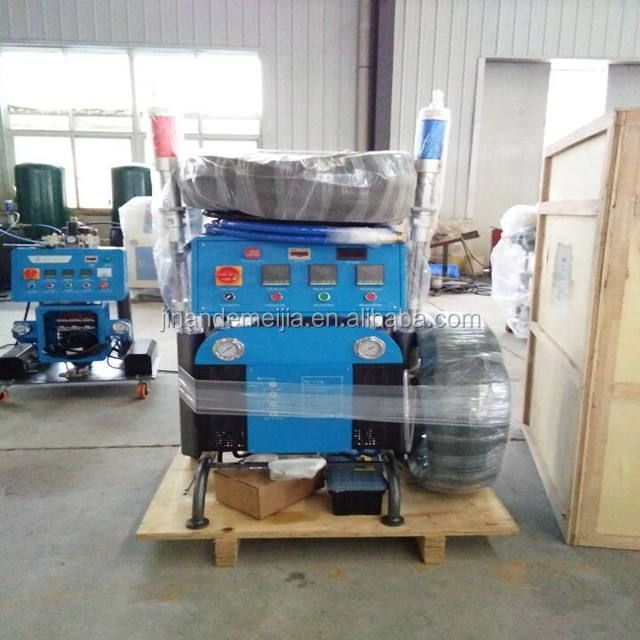

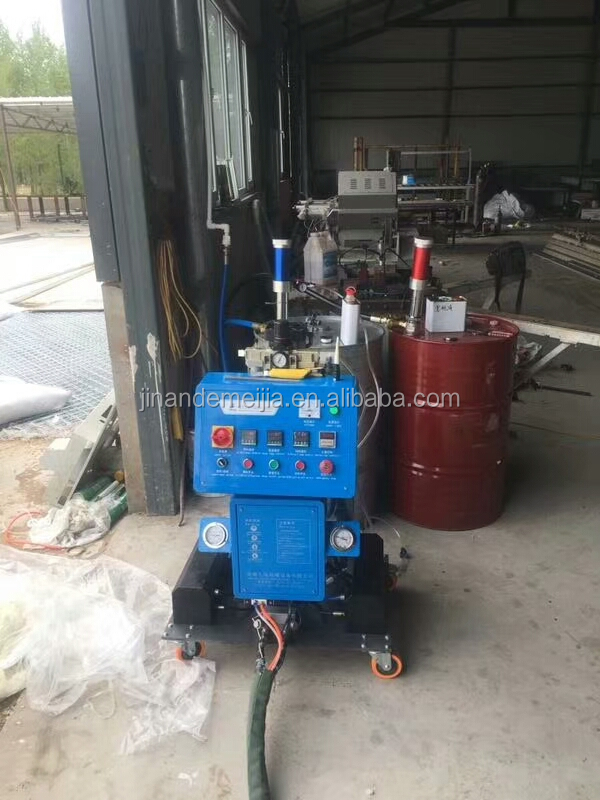

Q2600 polyurethane foam spraying machine

application:Mainly used for high-pressure spray foam processing and injection foam processing.

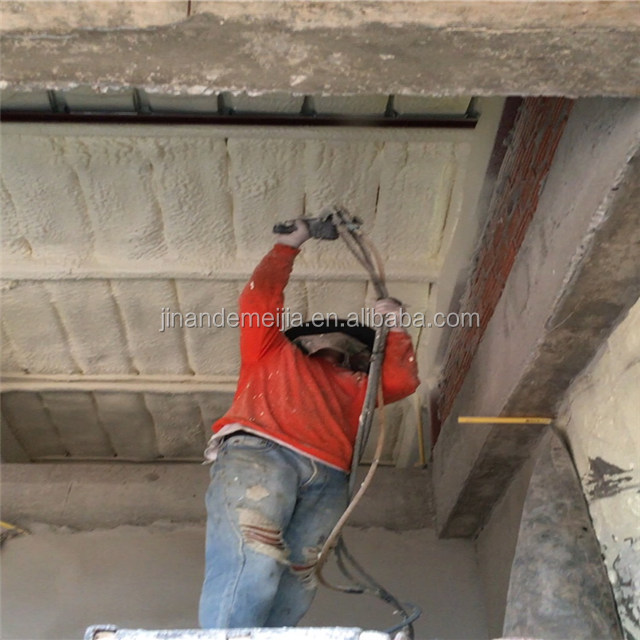

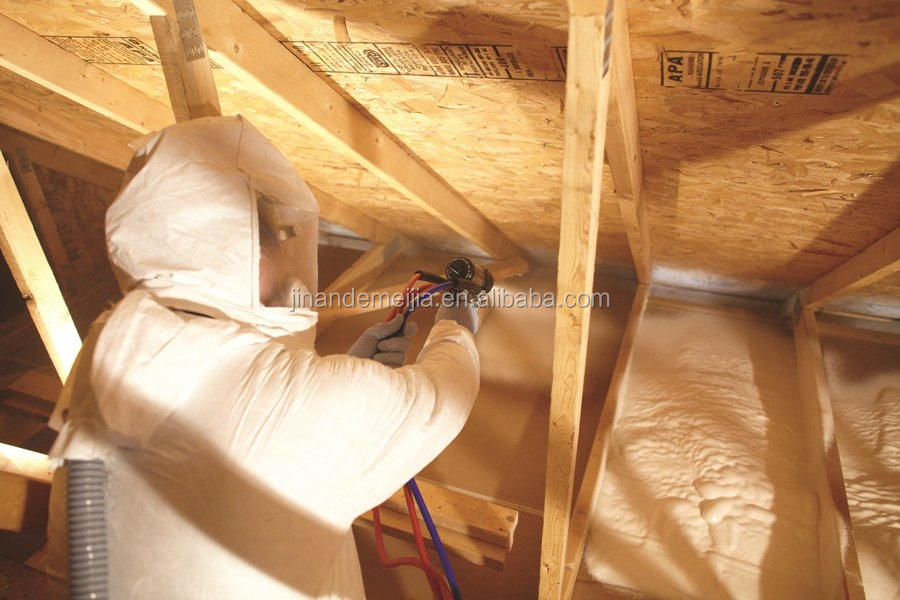

For spraying:Building interior and exterior wall spraying, cold storage spraying, cabinet insulation, etc.
Passenger car sound insulation, roof insulation and waterproof, refrigerated vehicles, industrial anti-corrosion spraying.
For injection:Solar water heaters, refrigerators, freezers, pipe joints, door gap mats, product mat packaging,Rolling shutter doors, anti-theft doors, road construction, wall sound insulation, landscape modeling, etc.

Q2600 polyurethane foam spraying machine

brief introduction:
Pu foam material has many advantages such as insulation, heat insulation, sound insulation, anti-corrosion, etc., and is widely used in many fields. energy saving. Insulation and heat protection are superior to any other material.

Working Standards:

The function of this pu foam machine is to extract black material and white material. Make them stressful. The two materials are then combined under high pressure in the gun tip, and the spray foam is sprayed out very quickly.

detailed image

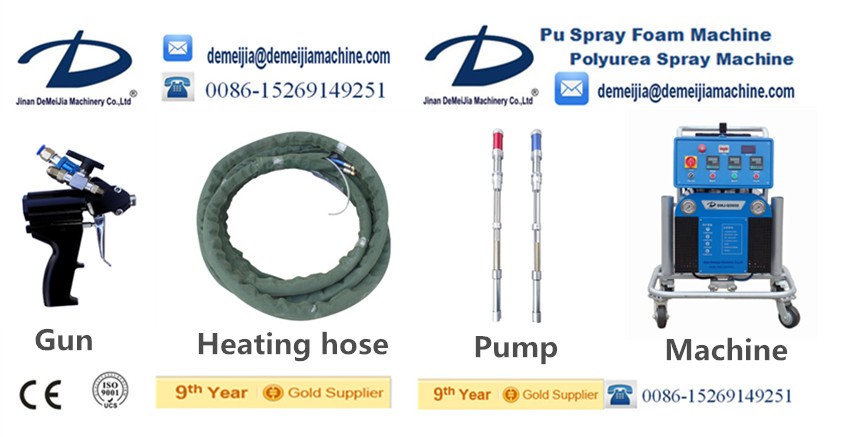

Name: pu spray foaming machine

Name:Polyurethane Foam Sprayer

brand:DMJ

The original:Jinan, China

1. The largest domestic manufacturer of pu spraying machines and polyurea spraying machines.

2. In the United States, Canada, Mexico, Russia, Spain,Slovakia, with agents and distributors.

3. The factory has CE, ISO, BV.

mechanical pump

Name: Polyurethane Foam SprayerPump
brand:DMJ
The original:Jinan, China
1. Pressure ratio: 3:1

2. Material flow rate: 0-18L/min

3. Working pressure: 0.1-1.0Mpa

4. Internal pressure: 0.3-0.8Mpa

5. Length: 1280mm, Diameter: 32mm

machine gun

Name:PU machine gun
brand:DMJ
The original:Jinan, China
1. Cleaning: self-cleaning

2. Output flow: 1-12 kg/min

3. Working pressure: 35Mpa

4. Working air pressure: 0.2-1.2Mpa

5. Spray gun: injection nozzle

machine hose

Name:pu foam sprayer heating hose
brand:DMJ
The original:Jinan, China

The heated hose is used to heat the material during the hose flow before spraying, which can maintain the proper temperature for good foaming effect.

polyurethane pu foam spraying machine

Spare Parts and Drawings

spare parts
No.	Set of spray gun, machine, hose and pump
ensure	12 months after receiving the machine
T/T/EM DHL Express	During the warranty period, any parts damaged We will send spare parts to customers within 12 months

machine working diagram
include	Polyurea pu spraying machine Graco Quality 1. Machine: 1 set 2. Spray gun: 1 set 3. Heating tube: 15m 4. Spray gun connecting pipe: 1.5m 5. Delivery pump: 2 sets 6. Spare parts and operation Polyurea PU insulation machine
