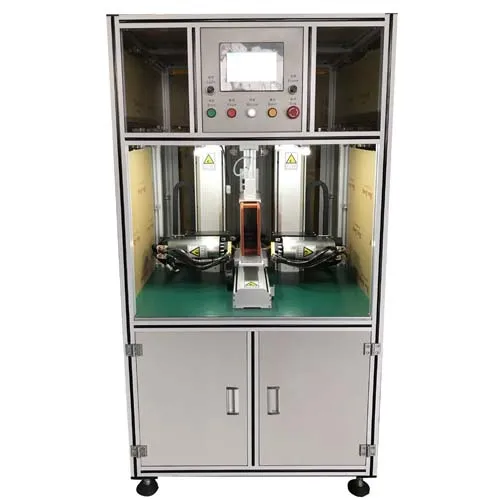

Automatic Double Sides CNC Spot Welder Numerical Control EV Cell 18650 Battery Spot Welding Machine

Supplier: Xiamen Tmax Battery Equipments Limited
Region: Fujian, China
Contact: Mr Aaron Huang
Price: $6800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	China;	Weight (KG):	400 KG;
Air supply:	0.3 ~ 0.4Mpa;	Condition:	New;
Z-axis travel:	400mm;	Voltage:	220V ± 10% / 50Hz ± 10%;
Usage:	Spot Welding;	Welding Stroke:	Customized;
Rated Duty Cycle:	60%;	Y-axis travel:	500mm;
Warranty:	2 Years;	Local Service Location:	United States;
Packaging Detail:	1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;	After Warranty Service:	Video technical support,Online support;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Dimensions:	90013001800mm;
Applicable Industries:	Battery Welding Machine;	Certification:	CE Certificate;
Maximum speed of motor drive:	1000mm/s;	Spot welding speed:	0.3s / point; 5000pcs / h;
Number of groups for storing files:	999 groups;	Key Selling Points:	Automatic;
Showroom Location:	United States;	Power(W):	25KVA;

Product Description

Automatic Double Sides CNC Spot Welder Numerical Control EV Cell Battery Welding Machine

Fearures

This machine is used for cylindrical battery pack automatic spot welding, it can weld both side together with high speed and good effect.

1. Support breakpoint start, support automatic start and manual start mode conversion.

2. It has a false spot welding and out of spot welding alarm function.

3. Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4. Welding needle replacement forecast reminder.

5. Own welding current monitoring system, real-time monitoring of welding current.

Advantages:

1. Welding stroke can be customized

2. Suitable for various kinds of battery pack

3. High speed welding

4. 7-inch touch screen, more convenient operation, clearer display

5. Welding head has air-cooling or water-cooling function, which can effectively reduce the influence of spot welding needle temperature on welding quality.

6. Can store up to 999 groups of files, the file issimple to call,

does not require complicated line changing process

7. One-key calibration function for total shift ofsolder joints, which can be calibrated for spot shift caused by changing the solder pin or other reasons

8. Electric or pneumatic spot welding machine is optional

Specifications

Model	TMAX-DH-20000
Y-axis travel	500mm
Z-axis travel	400mm
Spot welding speed	0.3s / point; 5000pcs / h
Maximum speed of motor drive	1000mm/s
The maximum number of batteries loaded	300pcs (standard 18650 lithium battery)
Number of groups for storing files	999 groups
Operating system	Embedded system + man-machine screen
Transmission	Stepper + imported precision linear guide (optional servo + screw)
Power supply	Single-phase 220V ± 10% / 50Hz ± 10%
Air supply	0.3 ~ 0.4Mpa
Weight	400KG
Dimensions	900mm1100mm1800mm

Spot Welding Machinie
Type	Product Name	Features	Picture	Link
Manual	Pneumatic Spot Welding Machine	Welding Thickness:0.03 - 0.25mm Air Pressure Range:0.1 - 0.7 Mpa		https://www.alibaba.com/product-detail/Precise-Micro-Spot-Welder-Battery-Tab_60757881777.html?spm=a2700.7724838.2017115.68.7e575a75yrKs9d
	AC Plus Pneumatic Spot Welding Machine	Welding Thickness:0.03~0.2mm		https://www.alibaba.com/product-detail/Pneumatic-AC-Plus-Battery-Spot-Welding_62196890828.html?spm=a2747.manage.0.0.223471d2j02Y21
	5000A/8000A Pneumatic Inverter DC Spot Welding Machine	Maximum thickness of parallel welding:0.03mm~0.5mm Maximum Output Short Circuit Current:5000A or 8000A		https://www.alibaba.com/product-detail/Pneumatic-Inverter-DC-Spot-Welding-Machine_62288760510.html?spm=a2747.manage.0.0.223471d2j02Y21
	DC Output Spot Welding Machine	Maximum thickness of parallel welding:0.03mm~0.5mm		https://www.alibaba.com/product-detail/0-03-0-5mm-DC-Output_62065786277.html?spm=a2747.manage.0.0.223471d2j02Y21
Automatic	Automatc Single Side Spot Welding Machine (Pneumatic/ Electric)	Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour		https://www.alibaba.com/product-detail/Automatic-Single-Side-Battery-Tab-Weler_62196919339.html?spm=a2747.manage.0.0.223471d2j02Y21
	Automatic Single Side Rotary Welding Head Spot Welding Machine (Pneumatic /Electric)	The rotatable welding head can prevent the sticking of the needle. In addition, if it is a nickel strip with different fork directions, the rotating welding head is needed. Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour		https://www.alibaba.com/product-detail/Single-side-Automatic-Rotary-Numerical-Control_62226331778.html?spm=a2747.manage.0.0.223471d2j02Y21
	Automatic Double Sides Spot Welding Machine (Pneumatic/ Electric)	Welding travel:400x500mm Spot welding speed: 0.3s/point; 5000pcs/h		https://www.alibaba.com/product-detail/Automatic-Double-Sides-Spot-Welding-Machine_62102525144.html?spm=a2747.manage.0.0.223471d2j02Y21
