512 Channel 5V2A 3A 5A 6A Battery Analyzer Charge and Discharge Machine Battery Capacity Tester for Cylindrical Cell

Product details
Place of Origin:China;Model Number:TMAX-BT0502-512-C;
Suitable for:Cylindrical or pouch cell;Voltage measurement range:DC100-4500mV;
Max Power Dissipation:7000W;Port:Xiamen Port;
Supply Ability:10000 Set/Sets per Month;Relative humidity:≤85%;
Current range:0.3A-2A/3A/5A/6A;Clamp spacing:35mm;
Channel no:512;Packaging Detail:1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;
Working temperature:0~40 ℃;Minimum discharge voltage:2000mV;
Payment Terms:L/C,D/A,D/P,T/T,Western Union;
Product Description

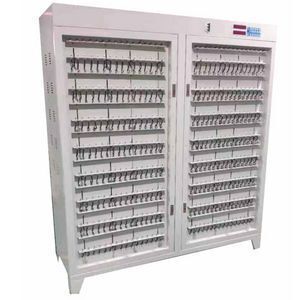

512 Channel 5V2A 3A 5A 6A Battery Analyzer Charge Discharge Machine Battery Capacity Tester for Cylindrical Cell Testing





 Features

512 Channel Battery Testing Equipment is a popular newly developed battery testing system for Li-ion cells, LIPB, Ni-MH cells, Ni-Cd cells.
This Equipment can be used as research machine, as cell positive /cathode pole material, battery cycle life testing etc.
This Equipment also can be used in pilot run period and in quality assurance department, since it has functions as formatting cells, grading capacity, testing cells group,checking battery pack, and processing test data,etc.

Current range: 0.05A-2A, 0.05A-3A, 0.05A-5A,0.05A-6A optional.

Suitable for: Cylindrical cell or pouch cell.







Supporting Software Functions:

A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors;

B) Battery capacity indication of any section (up to 100 sections);

C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is ≤ 4 Second;

D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);

E) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data;

F) Set operator authority and operate in different levels;

Display charge discharge curve and cycle chart;



Optional Machine

Battery Charging and Discharging Machine
256 Channel 5V 2A
256 Channel 5V 3A
256 Channel 5V 5A
256 Channel 5V 6A

512 Channel 5V 2A



512 Channel 5V 3A
512 Channel 5V 5A
512 Channel 5V 6A





Specifications

Number of device channels

512 (Single CPU control)

Constant current range

(0.05 ~ 2A/3A/5A/6A), resolution 1mA

Accuracy of current measurement

±0.1%FS

Sampling current accuracy

±0.1%FS

Voltage measurement range

0 ~ 5V, resolution 1mV

Accuracy of voltage measurement

±0.1%FS

Charging and discharging voltage range

Charging: 0 ~ 4.5V, discharging: 4.5 ~ 2V

Constant voltage setting range

3 ~4.5V

Accuracy of constant pressure setting

±0.1%FS

Time range

0-30000 min / step, accuracy: ± 0.1%

Heat dissipation mode

Cold wind

Battery Clamp

Cylinder clamp, polymer clamp

Work loop source

Temperature: 0 ~ 40 ℃,

relative temperature ≤ 85%

(no water condensation)

External size

1600mm (W) × 550mm (L) × 1840mm (H)

Working power supply

Three phase four wire system,

AC380V ± 150%, 50Hz

Power consumption at full load

≤19KW

Minimum configuration of computer system:



1. Dual core CPU or above,

2. 4G or above memory,

3. 500GB or above hard disk space,

4. EGA / VGA color display, one CD-ROM, one mouse

5. Windows XP or above operating system, one 6. RS232 serial communication port available.

7.The computer system shall be self configured by the user, and the number of the computer system shall be determined according to the actual needs.

General equipment configuration and standards

1. Appearance color of equipment,

Case: silver white,

Cabinet: silver white.

2. Attach the Chinese operation manual and software U disk.







(Click the pictures to see more related machine for cylindrical battery pack assembly.)

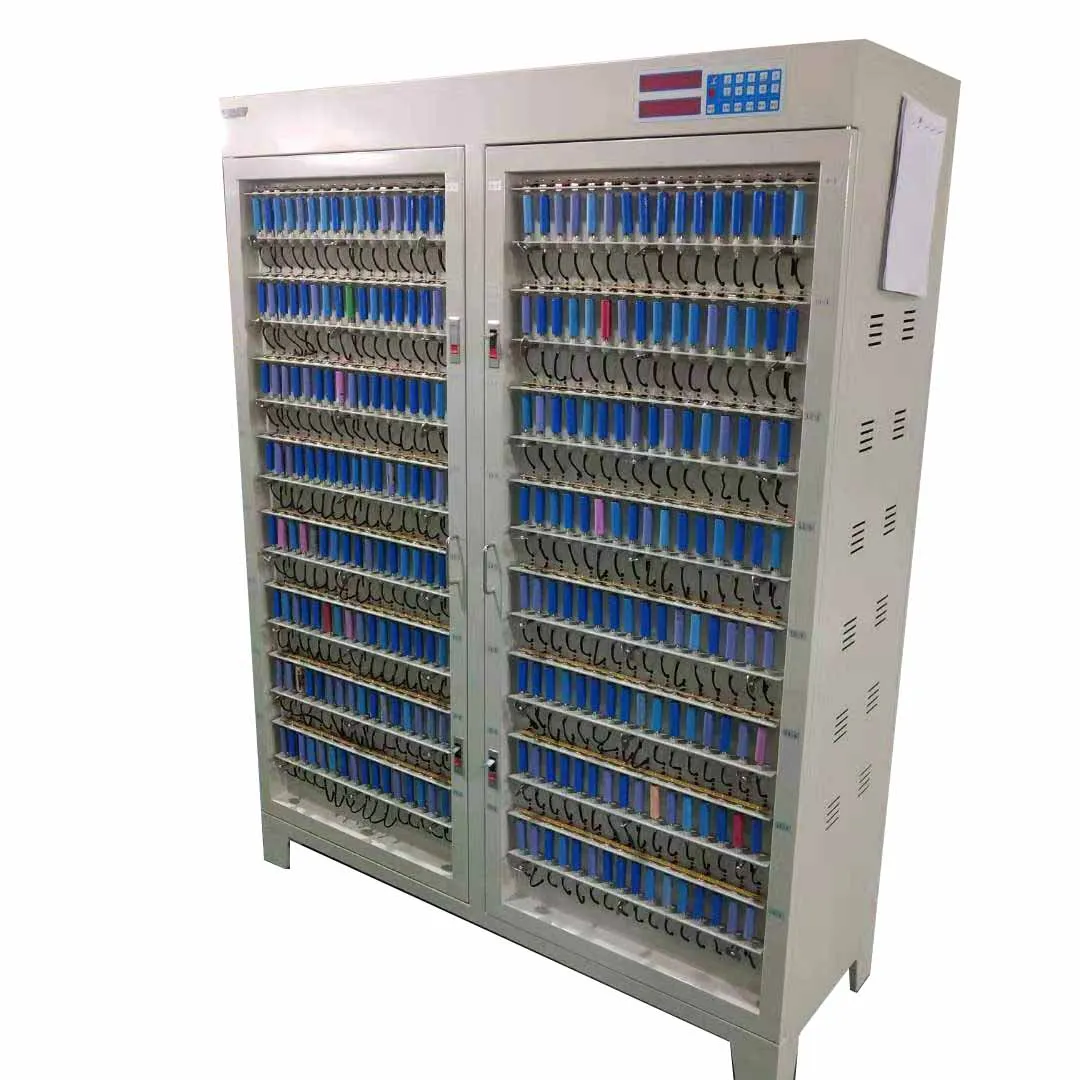

Product Images







Our Company & Team



Certifications

Cooperative Partner

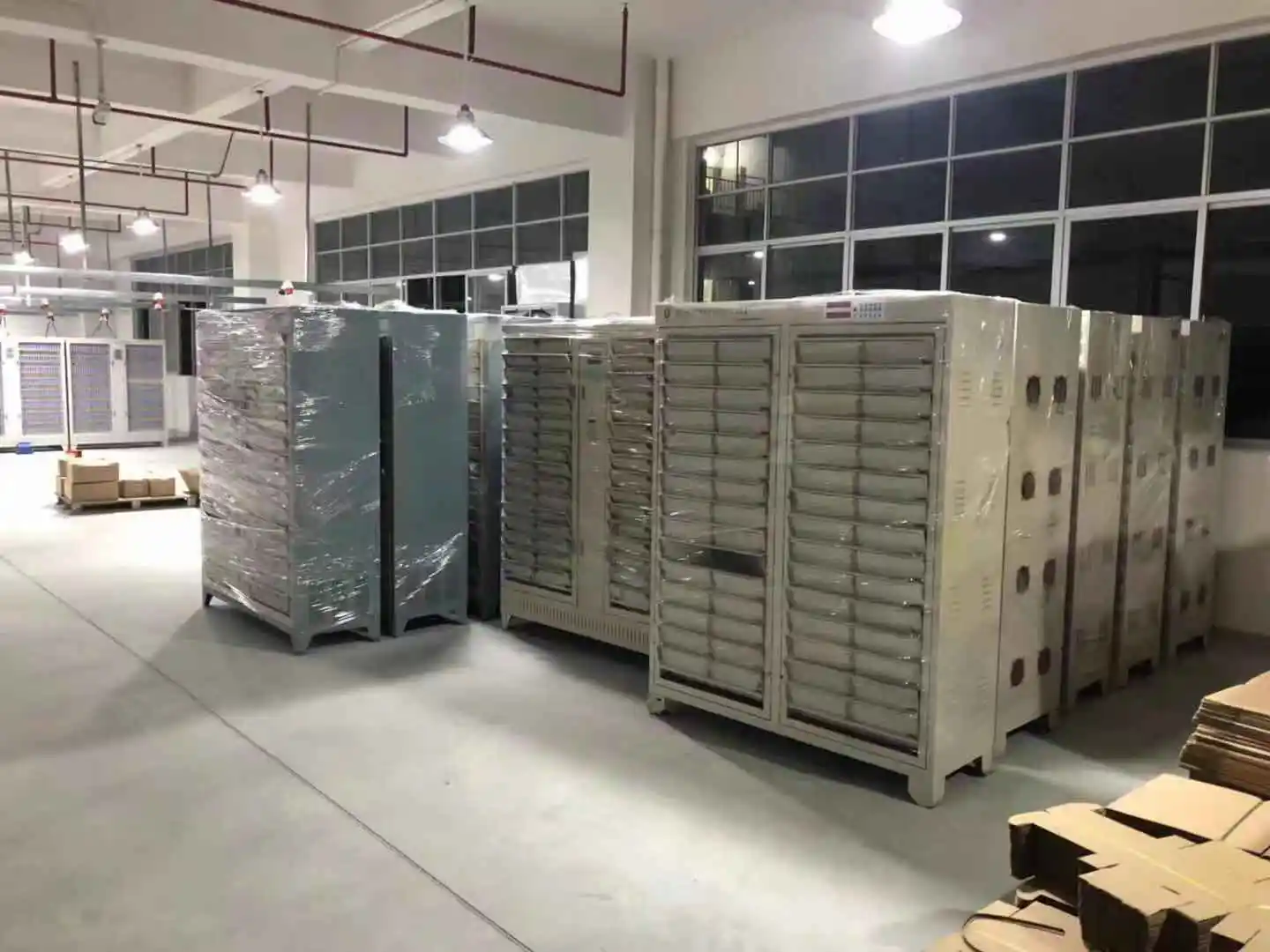

Packaging & Shipping

PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
