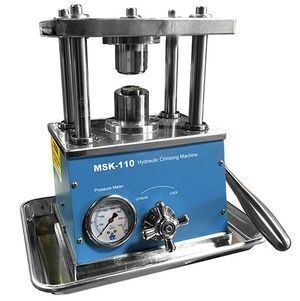

Hydraulic Button Cell Crimping Press Disassembling Sealing Machine Coin Cell Sealer Crimper for Li-ion Battery
-
Supplier: Xiamen Tmax Battery Equipments Limited -
Region: Fujian, China -
Contact: Mr Aaron Huang -
Price: $890.00 /set -
Min. Order: 1 set
| Features: | PTFE Anti-Corrosion Core; | Packaging Detail: | 1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.; |
| Showroom Location: | None; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union; |
| Warranty: | 1 year; | Size: | 223mm X 170mm X 325mm; |
| Structure: | Steel; | Crimping Die: | for crimping CR20XX, CR12XX, CR23XX, CR24XX, AG3, AG5; |
| Supply Ability: | 10000 Set/Sets per Month; | After-sales Service Provided: | Video technical support,Online support; |
| Pressure For CR20XX series: | Max.200 Kg/cm2 on CR20XX series coin cell; | Pressure: | Max. 8 metric Tons; |
| Product Dimensions: | 223mm X 170mm X 325mm; | Port: | Xiamen Port; |
| Condition: | New; | After Warranty Service: | Video technical support,Online support; |
| Name: | Sealing Machine for Battery; | Brand Name: | Tmax; |
| Applicable Industries: | Battery; | Net Weight: | 25 kg; |
| Place of Origin: | China; | Pump: | Build-in Hydraulic Pump; |
| Local Service Location: | None; |
Product Description
Crimper machine
|
|
|
|
Hydraulic Button Cell Crimping Press Disassembling Sealing Machine Coin Cell Sealer Crimper for Li-ion Battery
Specifications
| Features |
|

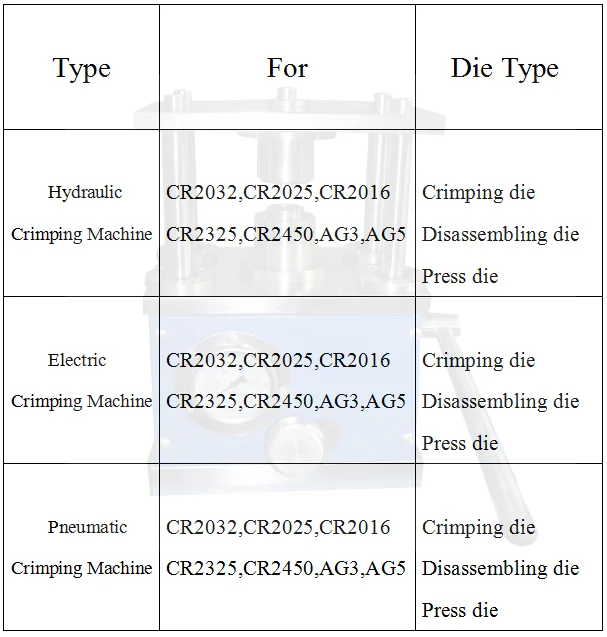

| Crimping Die | Optional die available from product option for crimping CR20XX, CR12XX, CR23XX, CR24XX, AG3, AG5 |
| Pressure |
|
| Warranty | One year limited manufacturer warranty with lifetime support. |
| Product Dimensions | 223mm X 170mm X 325mm |
| Compliance | CE Certified |
| Net Weight | 25 kg |
Application Notes | Attention: The built-in small hydraulic pump is not designed for holding high pressure. The pressure inside will be released gradually after reaching 50~80 Kg/cm^2, (which is sufficient for disassembling the coin cell). |
Detailed Images
Related Machine for Coin Cell Preparation | ||
No. | Products Name | Products Link |
1 | Tube Furnace/Muffle Furnace | https://www.alibaba.com/product-detail/1200C-High-Temperature-Vacuum-Tube-Furnace_60760562902.html?spm=a2700.7724838.2017115.67.72a06180LaHQ1V |
2 | Planetary Ball Mill | http://www.alibaba.com/product-detail/Compact-Lab-Planetary-Ball-Mill-Grinding_60566982520.html?spm=a271v.8028081.0.0.3a203e5fvHSbSc |
3 | Vacuum Mixer | https://www.alibaba.com/product-detail/150-500ml-Smallest-lab-powder-mixer_60571393736.html?spm=a271v.8028081.0.0.10a13e5f6Y9s7Z |
4 | Film Coater Machine | https://www.alibaba.com/product-detail/Lab-Compact-Tablet-Vacuum-Film-Coating_60782785894.html?spm=a271v.8028081.0.0.10a13e5fTiBxC5 |
5 | Roll Press Machine | https://www.alibaba.com/product-detail/Precision-Automatic-Heat-Hydraulic-Roller-Press_60818361145.html?spm=a271v.8028081.0.0.2b133e5fyIl4TO |
6 | Punching Machine | http://www.alibaba.com/product-detail/Lithium-Ion-Coin-Cell-Battery-Punching_62018961738.html?spm=a271v.8028081.0.0.2b133e5fyIl4TO |
7 | Vacuum Drying Oven | https://www.alibaba.com/product-detail/Digital-25L-200C-Heat-Vacuum-Dry_62154547795.html?spm=a2747.manage.0.0.54bc71d2y5rtgs |
8 | Glove Box Machine | https://www.alibaba.com/product-detail/Dual-Chamber-Vacuum-Glove-Box-94_60740024627.html?spm=a271v.8028081.0.0.100d3e5fs0MTQ9 |
9 | Sealing Machine | https://www.alibaba.com/product-detail/Laboratory-Manual-Battery-Sealing-Machine-for_60684995615.html?spm=a271v.8028081.0.0.4f483e5fNcebFC |
10 | Battery Tester Machine | https://www.alibaba.com/product-detail/5V-1mA-10mA-20mA30mA-50mA_62018122259.htmlspm=a2747.manage.0.0.3be671d2WbMN37 |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
-
