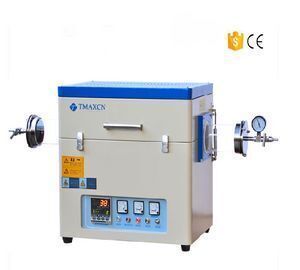

Laboratory 1200C Split High Temperature Vacuum Sintering Tube Furnace Price

Product details
Temperature controller precision:+/- 1°C;Voltage:AC110V-240V, Customized;
Port:Xiamen Port;Model Number:Tube size optional;
Maximum heating & cooling rate:< 30°C / min;Heating length:400-440mm;
Packaging Detail:1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;Brand Name:TMAX;
Classification:Laboratory Heating Equipments;Package Preview:;
Thermocouple type:K;Constant temperature length:150mm;
Payment Terms:L/C,D/A,D/P,T/T,Western Union;Supply Ability:10000 Set/Sets per Month;
Product Description

Laboratory 1200C Split High Temperature Vacuum Sintering Tube Furnace Price







Detailed technical parameters

Type

1200-I

1200-II

1200-III

1200-V

1200-VI

1200-VII

Power

3.5KW

3.5KW

3.5KW

5KW

6KW

7KW

Tube size (OD(mm)

Dia 60 X1000

 Dia80X1000

Dia100X1000

Dia150X1000

Dia200X1000

Dia250X1000

Dimensions

1140X450X690

1140X450X690

1140X450X690

1110X530X755

1120X580X805

1314X680X905

Supply voltage

220V

Phase

Single phase

Heating element

Resistance wire imported from Sweden Kanthal A1 (resistance wire guaranteed for 2 years)

Temperature control



UAV program temperature control instrument (standard)

1, 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5, the meter has the function of temperature self-tuning





(you need to pay extra for the replacement of imported instruments, optional)

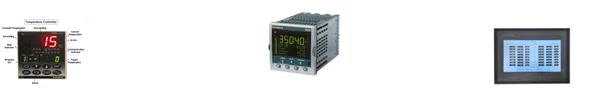

 FP93 temperature controller (shimashima, Japan)  European instrument    Touch screen instrument

Chamber material



1. High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Formed by Japanese technology.

3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by the thermal software.

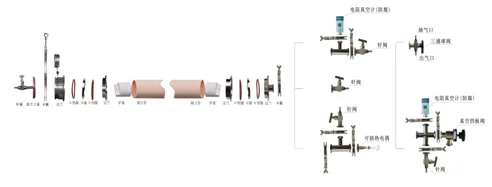

Valve and flange





60/80/100 top view



Temperature calibration (optional)

Regular temperature calibration of the tube furnace maintains the accuracy and uniformity of the furnace temperature. You can purchase a simple calibration tool from the company to assist you with this work. The complete calibration kit includes a standard thermocouple S-type, temperature calibrator.



Control accuracy

 +/- 1 ℃

Trigger

                                   Phase-shifted trigger

Electric appliance

Zhejiang chint

Silicon controlled

                                    106/16E SEMIKRON

Maximum temperature

 1200 ℃

Rated temperature

 1150 ℃

Heating rate

 ≤30 ℃/ Min (it can be modified as required)

Recommended rate of temperature rise

≤15  ℃/ Min

Thermocouple Type

K Type

Heating length

400-440mm

Constant temperature length

150mm

Temperature field curve

Peripheral surface temperature

≤45℃

Open cover protection system

When the furnace cover is opened, the relay will automatically cut off the main power supply, effectively ensuring the safety of the user.

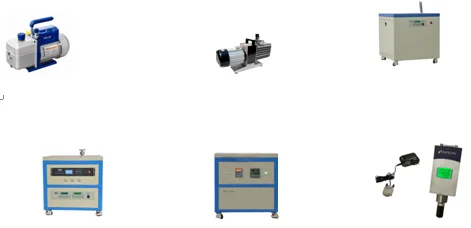

Vacuum system (optional)

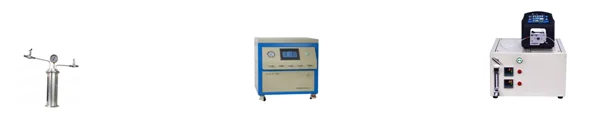

Gas supply system (optional)







Our Company & Team



Certifications

Cooperative Partner



Packaging & Shipping

PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
