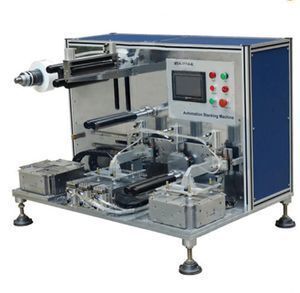

Upto 500 Layers Touch Screen Auto Lamination Stacking Machine for Lithium Battery Electrode

Click here to contact
Product details
Application:Battery Electrode;Type:Laminating Machine;
Packaging Material:Wood;Max. Electrode Thickness:Piled up thickness < 30 mm;
Port:Xiamen Port;Packaging Detail:1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;
Driven Type:Electric;Aligning Accuracy:±0.5 mm for stacked electrodes;
Certification:CE Certificate;Vacuum Pump:An Oilless Vacuum pump (28L/min, 140W);
Payment Terms:L/C,D/A,D/P,T/T,Western Union;Voltage:AC220V 50/60Hz;
Weight:500 kg;After-sales Service Provided:Online support;
Color:Request;Warranty:2 years;
Automatic Grade:Automatic;Brand Name:TMAX;
Acceptable Separator Roll Size:I.D>3'' (76mm);Dimension(L*W*H):960 mmx 680 mmx 690 mm;
Stackable Layers:Upto 500 layers;Name:Auto Lamination Stacking Machine;
Supply Ability:10000 Set/Sets per Month;Stackable Size:200x150mm;
Place of Origin:Fujian China;Packaging Type:wooden;
Suggested Air Pressure:0.5 - 0.8 MPa;
Product Description

Upto 500 Layers Touch Screen Auto Lamination Stacking Machine for Lithium Battery Electrode



Features



MSK-111A-E is a high-accuracy automatic stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the seperator film in between.



·         PLC Touch Screen Control allows easy condition setting

·         Continuous "Z" fashion stacking with a separator

·         Auto electrode pick-up & stacking via vacuum suction manipulator

·         Adjustable mechanical fixture for accurate electrodes positioning

·         Unreeling rotors for separator film feeding

·         Auto-tension control for separator film delivery

·         One set of 80x50mm stocking die fixture is included for immediate use.

Technical Parameter



Working Voltage

·         AC220V 50/60Hz

Power

·         1KW

Stackable Size

·         200x150mm

Stackable Layers

·         Upto 500 layers

Max. Electrode Thickness

·         Piled up thickness < 30 mm

Aligning Accuracy

·         ±0.5 mm for stacked electrodes

Acceptable Separator Roll Size

·         I.D>3'' (76mm)

·         O.D<9.8'' (250mm)

Stacking Fixture

·         One set of 200 x 150mm stacking die fixture is included for immediate use.

·         If you need different size electrode stacking, please inform us before order.  We will make for your at extra cost. Allowable customization size: Max.  200mm x 200mm; Min.  80 mm x 50 mm

Vacuum Pump

·         An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator.

Suggested Air Pressure

·         0.5 - 0.8 MPa (Air compressor is not included in the standard package.

Product Dimensions

·             960 mm L x 680 mm W  x 690 mm H

Weight

·         500 kg

Compliance

·         CE Certified

Warranty

·         Two years limited warranty with lifetime support

·         Rusting and damage due to improper storage condition or maintenance is not covered by warranty



Product Images





 Upto 500 Layers Touch Screen Auto Lamination Stacking Machine for Lithium Battery Electrode

Upto 500 Layers Touch Screen Auto Lamination Stacking Machine for Lithium Battery Electrode

Upto 500 Layers Touch Screen Auto Lamination Stacking Machine for Lithium Battery Electrode

Our Company & Team

Certifications

CERTIFICATE

Strength Proof

All our products are passed the inspection standards included SGS, CE, ASTM with 100% quality.

Cooperative Partner

Packaging & Shipping

PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to production season and order quantity.

FAQ
About Product

 1. Which procedure to secure your Quality?

Our company has own research & development and production base, the products have been calibrated by central laboratory professionals before they leave the factory, ensure the accuracy of test results and authority.
2.How about your company product after-sales service system?
Product after-sale guarantee period is 12 months, and we can provide a lifetime repair guarantee. We have agents in some countries, they can provide door-to-door service. If there is no agent, our professional pre-sales and after-sales department can reply you within 24 hours for any technical problems.
3.Products standards?
Our instruments adopt ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE and other international testing standards.
4. Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with a transformer and plug that in accordance with your local requirement.
5.Payment methods?
T/T, L/C, D/P and so on
6.Packing method?
Standard export wooden box packaging
7.How about customers evaluation for your products?
Our company has established long-term cooperation with the SGS, Bureau Veritas, TUV and Intertek, our high-quality products and first-class after-sales service. Our services get the trust of the customer satisfaction and recognition for themselves.
8.Main export market?
Now our products have been exported to North America, Europe, Southeast Asia, South America and other countries.
10. How to ensure the customer standard use the instrument?
We can provide each product-related video showing how to install and operate. If you have specific needs, we also can arrange the engineer to the customer's company for equipment operation training.

About Shipping

 1.Order processing?

Please allow a processing time of 12-24 hours for your order(s) to ship. Equipment orders will take up to 2 weeks before leaving our warehouse. (Order processing is done during normal weekdays only, no holidays or weekends.)
2. Shipping methods?
1 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
2 Responsible for the damage during the shipping process, will change the damaged part for you for free.
3.Order tracking?
An online order can be tracked by login to your account. Please allow 24 hours after order is shipped to see logging details.
If you need a tracking number for your order, please send an email to us with your order/invoice number.
4. Import/export tax, duty, GSM, Customs Clearance, and etc?
All import/export related expenses are the sole responsibility of the buyer; charges will vary from country to country. Please consult with your local import experts or transportation carrier for more details.
5.Lost or Stolen packages?
Please report all lost or stolen packages to us at the earliest possible time. An investigation will be open soon after reporting the incident to us, and a final ruling will be issued by the carrier for the claim after 10-15 business days. A replacement package will be sent as soon as the claim is accepted by the responsible carrier.
