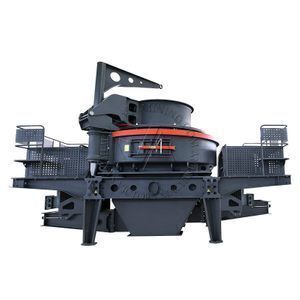

Hot VSI series vertical shaft sand making machine with price

Product details
Product type:Shaping Sand Making Machine;Applicable Industries:Building Material Shops,Machinery Repair Shops,Farms,Energy & Mining;
After-Sales Service:Timely Installation;Place of Origin:China;
Voltage:380V;Working capacity:550-600;
Dimension(L*W*H):820*520*1270mm;Weight:7.8t;
Single package size:8.2X5.2X12 cm;Quality:High Leavel;
Certification:CE ISO;Online Service Time:24 Hours Online;
Motor:Chinese Famous Brand;After-sales Service Provided:Online support,Field maintenance and repair service;
Warranty:2 years;Key Selling Points:Remote Monitoring;
Brand Name:Victory;Selling Units:Single item;
Power(W):110-350kw;Condition:New;
Single gross weight:60 KG;Package Type:The normal package is wooden box. If export to European countries, the wooden box will be fumigated. If container is too higher, we will use PE film for packing or pack it according to customers special request.;

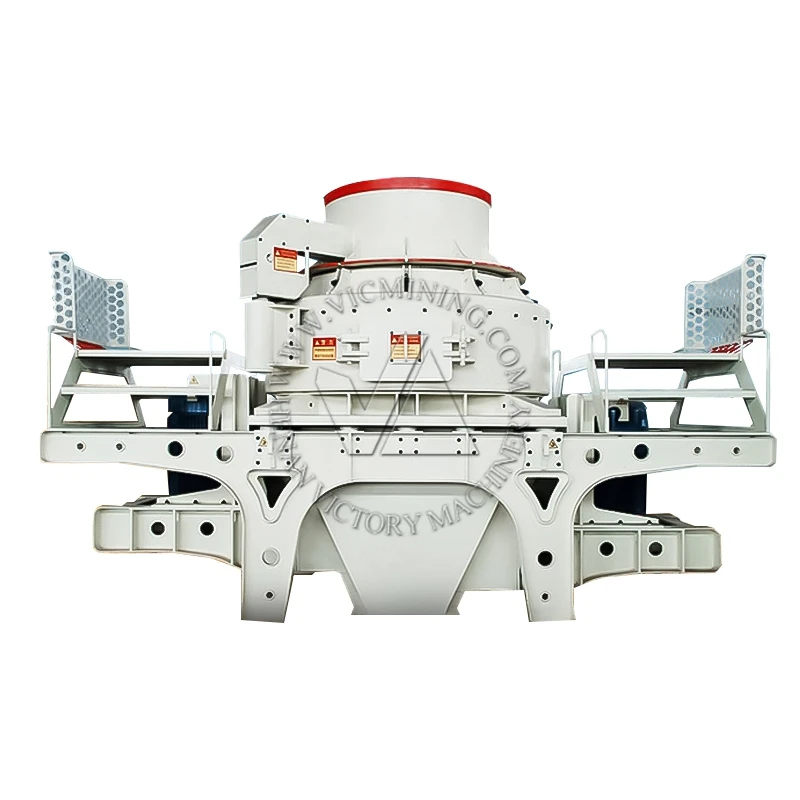

Hot VSI series vertical shaft sand making machine with good price



Product Introduction



 VSI series vertical shaft sand making machine is designed as a multipurpose crusher with variety of feeding and crushing mode after get many feedback fromclients and operators, so we make production increased, wear costs reduced, maintenance extended. VSI vertical impact crusher becomes the preferredequipment in the field o 'stone shaping, sand making, refractory materials and industrial products etc.



Performance Features



1.self crushing and hammer crushing 2 types for dferent purpose.
2. Normally only one oil pump work,but when the pressure & flow rate areless than the set value, or when the first pump stop running. the secondpump works automatically to esure the normal operation of VSI Crusher.
3.Hydraulic maintenance boom reduced maintenance costs ftively.
4.Bearing keep constant temperature, the oil pump circle automaicallytoensure that the tempersture of the bearing cylinder and tank oill is similar50 a to prevent freezing in winter.

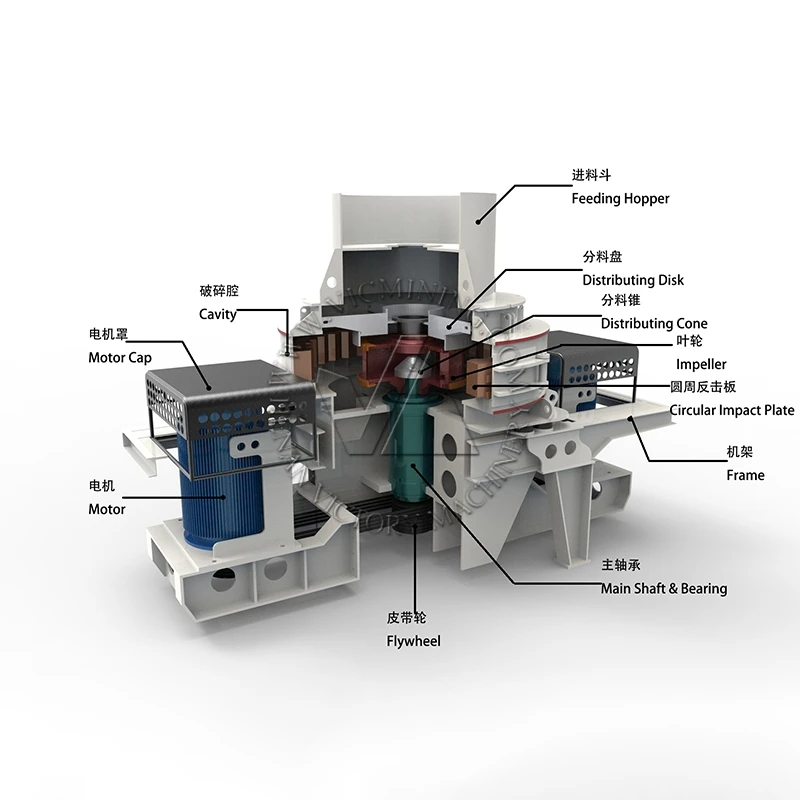

Working principle



VSI vertical impact crusher crushes materials by high-speed movement andfriction between the materials. The materials .fall into the crusher, throughthe fedig hopper then go into the separating plates and diwided into twaparts. One part enters into the high-speed rotating swing wheel from themiddle of the distributor, which is accelerated rapidly in the swing wheel,and then ejects from the runner af the swing wheel athigh speed. First, itimpacts and breaks with another part of materials falling around thedistributor, and then it impacts on the material lining of the crushing chamber together, and then move down after changing the direction. Thematerials are discharged from the flowing channels of the impeller and forma continuous material curtain, so the material are finished to be crushedafter being impacted, rubbed and ground many times in the crushing chamber. The finished materials are discharged from the crushing chamberand go into the discharging hopper oflow chassis under the force of gravity.





Parameters





ModelVSI-7611VSI-8518VSI-9526VSI-1140VSI-1145VSI-6X1150

VSI-6X1263

Capacity

(t/h)

Center and Sides

Feeding

120-180

200-260300-380450-520500-640400-450550-600
Feeeding at center60-90100-130150-190225-260250-360350-400450-500

Max. Feedeing Size

(mm)

Soft material<30<35<40<40<40<50<50
Hard material<25<30<35<35<35<40<45

Roating Speed (r/min)

1700-18901520-16901360-15101180-13101100-13101000-1300900-1000
Double Motor Power (kw)110-150180-220264-320400-440400-440250-300300-350
Power Source  380V         50HZ
Hydraulic Oil Pump

Motor Power

(kw)

2*0.31kw
Safety ProtectionComplementary double pump to ensure the oil supply, stopautomatically if there is no flow or no hydraulic pressure of oil; cooled water, moter heating start in winter

Dimension

(mm)

820*520*1270
 Power of Tank Heater (kw)2kw

Customised processing plant

Deliver A Customised Processing Plant Which Will Add Maximum Value for Your Business. Modular Wet Classification For A Variety Of Industrial Sands. Material Testing Lab.100+ Project Engineers,Service Support Team,Lowest Running Cost.



Completed projects



Vietnam sand production line project

Argentina river pebble sand production line project

Nigeria limestone sand production line project

Peru cobble sand production line project



FAQ





Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: What is your terms of payment ?

A: 30% advanced payment by T/T, balance paid before shipment.
