high frequency spiral fin tube welding machine for heat exchanger serrated fin tubes

Supplier: Nantong Zhenhuan Trade Co., Ltd.
Region: Jiangsu, China
Contact: Mr Franks Cao
Price: $120000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Usage:	welding fin to tube;	Brand Name:	OEM;
Packaging Detail:	Spiral fin tube welding machine bare in two 40' GP containers.;	Place of Origin:	Jiangsu China;
After-sales Service Provided:	Engineers available to service machinery overseas;	Tube Diameter:	25-260;
Port:	Dalian;	Voltage:	as customer requirement;
Speed of mandrel:	0-350 rpm;	Certification:	ISO;
Warranty:	one year;	Spiral winding speed:	30m/min (linear feeding speed of strips);
Power(W):	300KVA;	High frequency power:	100-400kVA;
Welding speed:	30-50m/min;	Fin width:	10-40mm;
Dimensions:	30m x 3.5m x 1.7m;	Condition:	New;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Fin spiral pitch:	4-50mm;
Frequency of Current:	400HZ;	Weight:	about 25T;
Spiral pitch tolerance:	+/-0.1mm;	Fin thickness:	0.8-3.5mm;
Max. finned tube length:	14m;	Supply Ability:	60 Set/Sets per Year;

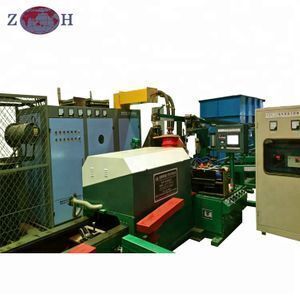

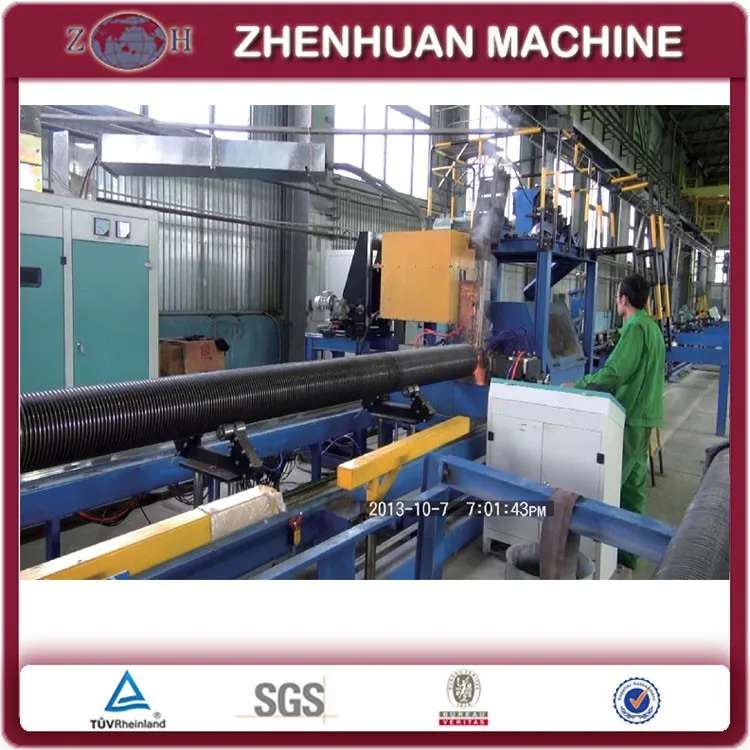

High Frequency Spiral Fin Tube Welding Machine

This high frequency spiral fin tube welding machine is specially for producing spiral fin tubes in different diameter.

I Main features of the spiral fin tube welding machine:

- Double-inverter-link PLC control

- Full automatic, automatic loading & clamping, automatic feeding, welding and unloading

- 3D electric adjustment for welding section; Electric adjustment for supporting section

- Rail on the machine is made by 40Cr, high quality

- Pneumatic clamping tubes, pneumatic chuck

- Equipped with emergency stop and anti-bumping device

II Main technical data of the spiral fin tube welding machine:

Item		CPG-9I		CPG-10
Max. fin tube length		8m / 12m / 16m		12m / 16m
Suitable base tube diameter		Φ20mm-Φ159mm		Φ20mm-Φ219mm
Fin spiral pitch		4-30mm		4-50mm
Fin material		Carbon steel, steel alloy, stainless steel
Fin material thickness		0.8-3mm		0.8-3.5mm
Fin material width		10-30mm		10-40mm
Spiral fin material feeding speed		30m/min
Spiral pitch tolerance		+/-0.1mm
Mandrel rotating speed		0-350rpm
Base tube terminal un-welded length		Less than 20mm
HF power	capacity	100kVA	200kVA	300kVA	400kVA
	Suitable tube diameter	<60mm	<114mm	<159mm	<219mm

III Typical spiral fin tubes made by spiral fin tube welding machine:

We, Nantong Zhenhuan Trade Co., Ltd., are specialized in machines for more than 14 years. We can provide you good quality spiral fin tube welding machine as well as good services.
