Gardner Denver TEE Plunger Pump Fluid End Full Open Valve & Seat

TEE

Gardner Denver model TEE pump is the most demanded pump in the well-service market. The TEE is a 165 HP pump with maximum pressure of 10,000 PSI. The intermittent piston rod load rating of 44,000 pounds is two to three times greater than the competitor’s pump.It is the most widely accepted pump in that horsepower range for the well-service market

Plunger & Liner

Hard-chrome plunger or Supreme liner(bi-metal liner) for TEE triplex piston pump has zise from2-1/2" to 4".

Liner is with alloysteel outer shell and over 27% chrome inner sleeve.

The bore hardness is60 to 65 RCwhile the hull has high tensile strength of more than 90000psi. Allhy-chromeliner are manufactured with an “HP” lip in case of inner sleeveslippage.

Theservice life of this liner is more than 800 hours undernormal drillingconditions. Eastland

’s hy-chrome liners are made for superiorperformance undertough corrosive and abrasive conditions.

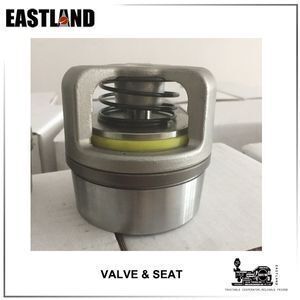

Valve & Seat

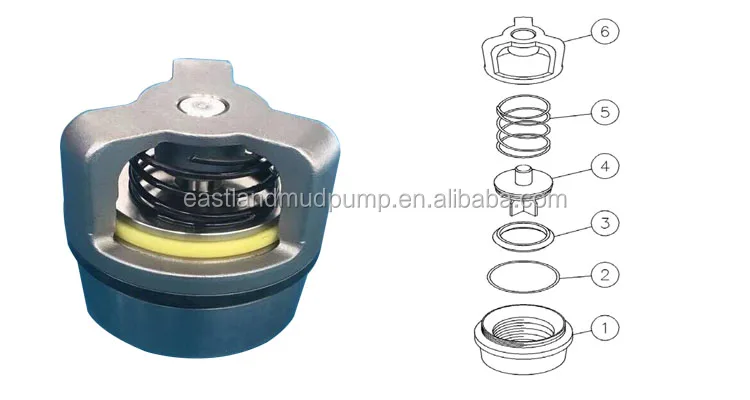

TEE 165 triplex piston pump uses  full open screw

typevalve & seatwith forged alloy struction,deep curburized wear

surface and greater fluid flow and easier maintenance andseat pulling.

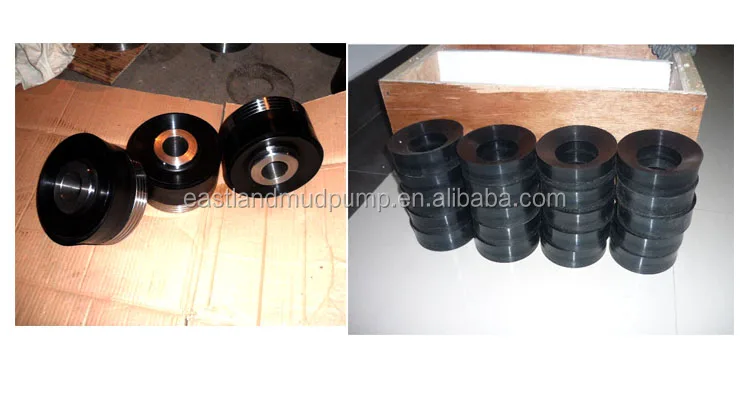

Piston

Eastland offers replacement rubberpiston,rubber bonded piston,urethane replacement piston and urethane bondedpiston which allows to work under different drilling condition.

Size from 3" to 7-1/2".

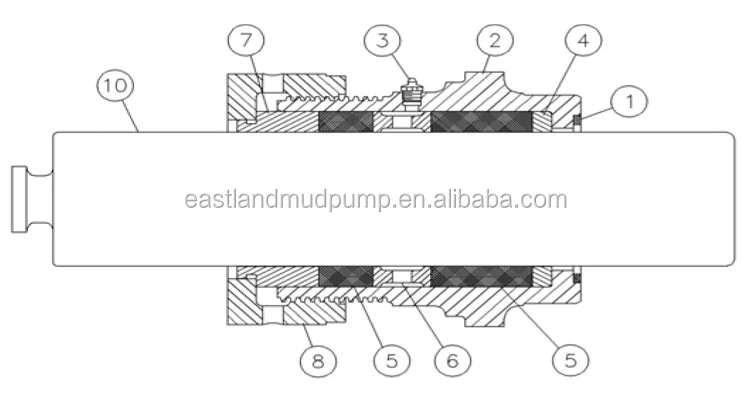

Plunger Packings
