Oil Well Drilling National Varco BJ SDS SDML SDXL Rotary Slip Die Insert

Supplier: Gaomi Eastland Oilwell Machinery Co., Ltd.
Region: Shandong, China
Contact: Zhao Tony
Price: $2.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shandong China;	Packaging Detail:	case;
Port:	Qingdao Sea Port;	SDS SDML SDXL:	3-1/2" to 5-1/2";
Type:	Drill Pipe Slip;	Supply Ability:	10000 Set/Sets per Month;
Payment Terms:	L/C,T/T,Western Union;	Model Number:	SDS;

Drilling Handling Tools

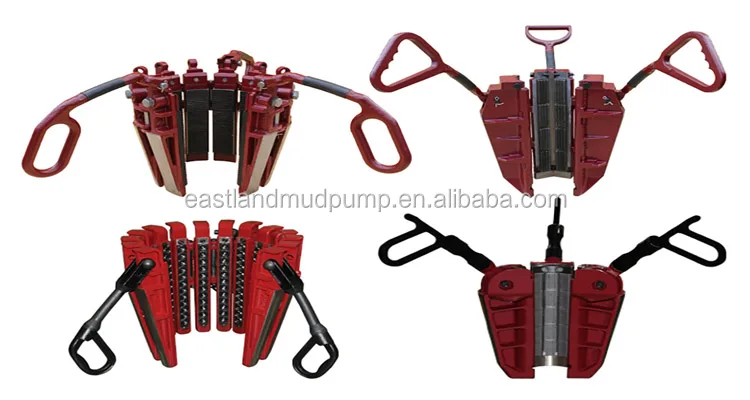

Rotary Slips

Eastland supplies three models of Rotary Slips which can accommodate drill pipes from 23/8 to 51/2 inch O.D:
       SDS—Short Rotary Slips, designed for shallow hole drilling
         SDML—Medium Rotary Slips, for all medium depth drilling
         SDXL—Extra Long Rotary Slips, designed for deep drilling

Specifications

Type	Body Slip Size(in)		3 1/2			4 1/2
SDS	Pipe Size	in	2 ^3/8	2 ^7/8	3 ^1/2	3^1/2	4	4 ^1/2
SDS	Weight	kg	53.1	50.3	48.5	64.9	61.7	57.6
SDML	Pipe Size	in	2 ^3/8	2 ^7/8	3 ^1/2	3 ^1/2	4	4 ^1/2
SDML	Weight	kg	87.5	85.3	81.6	94	90.3	85.3
SDXL	Pipe Size	in	—	—	—	3 ^1/2	4	4 ^1/2
SDXL	Weight	kg	—	—	—	103.9	99.3	93
Type	Body Slip Size(in)		5			5 1/2
SDML	Pipe Size	in	4	4 ^1/2	5	4 ^1/2	5	5 ^1/2
SDML	Weight	kg	92.5	88.9	84	90.9	84	82.1
SDXL	Pipe Size	in	4	4 ^1/2	5	4 ^1/2	5	5 ^1/2
SDXL	Weight	kg	107.5	103	96.6	106.1	101.5	95.3

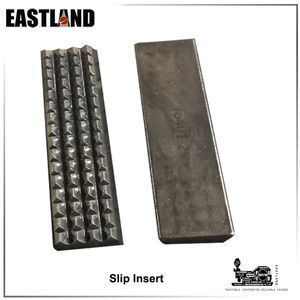

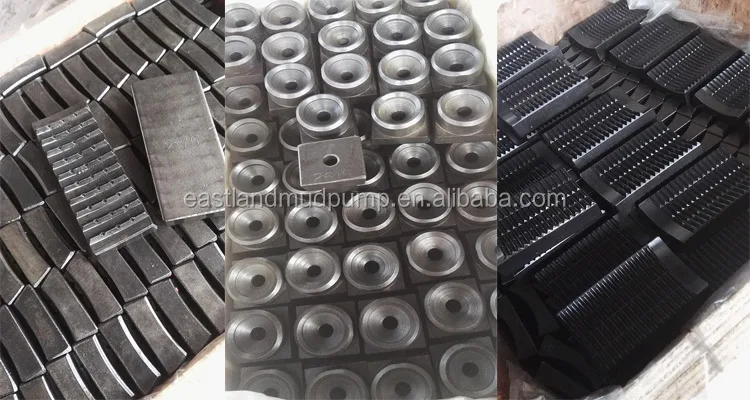

Slip inserts

Eastland supplies a full line of slip inserts which are made of high-quality alloy steel, chemically heart-treated for surface hardness, wear-resisting, corrosion-resisting and a long service life.

Eastland also designs and manufactures special inserts according to customer's requirement.

DIES FOR POWER TONGS
Tong Type	Model	Pipe Size
BJ Drill Pipe Power Tong	1/2” x 1.1/4” x 3.7/8”	/
RUSHI Drill Pipe Power Tong ZQ 203-100/125	7/16” x 1 ¼” x 3 1/16” Blue Diamond	/
RUSHI Drill Pipe Power Tong ZQ 203-100/125	1 3/16” x 1 ¼” x 3 1/2” Blue Diamond	/
TD Tubing Power Tong XQ89/3YB XQ89/3YC	Thin	89 ( 3 ½”)
	Middle-thick	73 ( 2 7/8”)
	Extra-thick	60 ( 2 3/8”)
TD Tubing Power Tong XY114/6YB	Big arc	89-141.5(3 ½”-5 ½”)
TD Tubing Power Tong XY114/6YB	Small arc	73-78(2 7/8”)
TD Tubing Power Tong XQ140/12Y	I	73-78(2 7/8”)
	II 3/8” x 1” x 3 7/16”	89-114(3 ½”-4 ½”)
	III	121-156(4 ¾”-6 1/8”)

DIES FOR VARCO/BJ MANUAL TONGS
Tong Type	Dimension(inch)	Original P/N	Tooth Type	Weight
SDD, C, F, LF/ HT 14, HT 20, HT35, HT100	1/2” x 1.1/4” x 5”	16401-2		13 oz.
		16401-6	BLUE DIAMOND	13 oz.
		16401	COARSE	13 oz.
B, DB, B Extend / HT-55, HT65, HT50 Web Wilson AAX, H	1/2” x 1.1/4” x 5.7/8”	16402-2		14 oz.
		16402-6	BLUE DIAMOND	14 oz.
		16401	COARSE	14 oz.
NOTE: Diamond tooth dies are used when a more aggressive bite is required.

INSERTS FOR CAVINS TUBING SPIDER C
Full Circle Inserts for Cavins Type C spider( 2 1/16” body)
Description (Slip size x Pipe size)	Original P/N	#/ Set
2 1/16” x 2 1/16”	TC-650-2 1/16” x 2 1/16”	4 4 4 4
2 1/16” x 1.900”(1 1/2”)	TC-651-2 1/16” x 1 1/2”
2 1/16” x 1.660”( 1 1/4”)	TC-651-2 1/16” x 1 1/4”
2 1/16” x 1.315”(1”)	TC-651-2 1/16” x 1”
Full Circle Inserts for Cavins Type C spider( 3 1/2” body)
3 1/2” x 3 1/2”	TC-650-3 1/2” x 3 1/2”	4 4 4
3 1/2” x 2 7/8”	TC-651-3 1/2” x 2 7/8”
3 1/2” x 2 3/8”	TC-651-3 1/2” x 2 3/8”
Full Circle Inserts for Cavins Type C spider( 4 1/2” body)
4 1/2” x 4 1/2”	TC-650-4 1/2” x 4 1/2”	4 4 4
4 1/2” x 4”	TC-651-4 1/2” x 4”
4 1/2” x 3 1/2”	TC-651-41/2” x 3 1/2”
