Oilfield Drilling Solid Control SWACO Replaced Composite Screen

Product details
After-sales Service Provided:Online support;100% interchangeable with OEM one:API35-API325;
Application:solid control;Condition:New;
Packaging Detail:carton inside,case outside;Payment Terms:T/T,Western Union;
Warranty:Unavailable;Port:Qingdao Sea Port;
PMD type:SS316 Mesh;Supply Ability:10000 Piece/Pieces per Month;
Place of Origin:Shandong China;

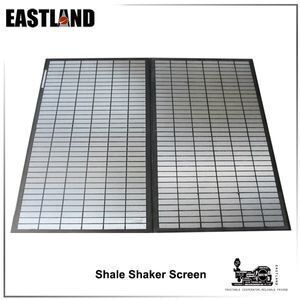

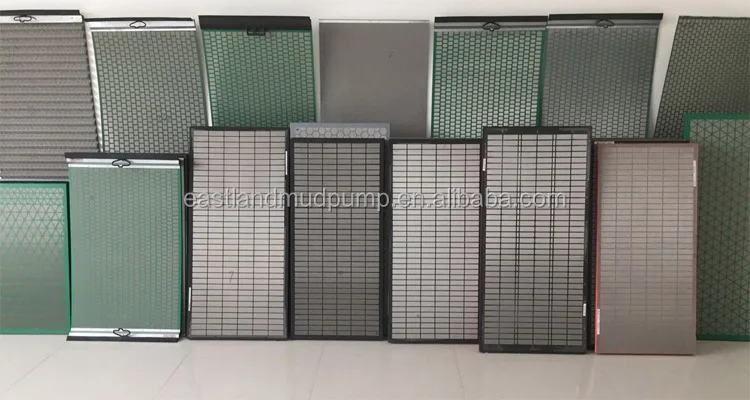

SHALE SHAKER SCREEN

We can produce shale shaker screens with different specifications and types according to the demand of customers.The steel plate use 1.5mm or 2.0mm of high quality SPCC. The stainless steel adopts SS304 or SS316 weaving. Filtration precision chooses different wire diameters and screens with different meshes match with each other in a reasonable and an accurate way.

Flat Screen is constructed with two or three layers of stainless steel wire cloths bonded to a steel support plank. This kind of sieving screen has many characteristics as below,

1.Every wire cloth in the sieving screen has different meshes, and accurate collocation can make the screen have better effect. I the sieving screen with different meshes, the hole size of the support plank is different so as to get more effective area on the condition of bearing enough force.

2.The thick wire cloth with less meshes at the bottom of the sieving screen combine steel support into a single closely, so as to enhance the strength of the whole screen and prolong its life.

3.The wire cloth is divided in to independent small surface by the grid of the steel support plank, which can prevent excessive expansion of local damage.

At the same time, equipped with a special rubber plug to repair damage, it can save time and reduce cost.





Pyramid screen has large effective area, and drilling fluid is handles in high efficiency by using it. This kind of sieving screen has many characteristics as below,

1.Every wire cloth in the sieving screen has different meshes, and accurate collocation can make the screen have better effect.

2.Stainless steel wire cloth is pyramid and closely hold the metal support plank together. The effective area is up to 125% to 150% of the flat screen with the same specification, so as to improve the quality of drilling fluid and increase the production.

Range of Mesh

Dimension

Dimension

API80-API325

635x1253mm

BRANDT BL50

API80-API325

697x1050mm

FLC500

API80-API325

697x1053mm

FLC2000

API80-API325

915x1150mm

BRANDT  LCM-ZD



Steel Frame Screen

Steel frame is a commonly used oil vibrating sieving meash which is composed of steel frame and 2 or 3 layers of stainless steel wire cloths.

Range of Mesh

Dimension

Dimension

API20-API325

585x1165mm

SWACO MONGOOSE

API20-API325

635x1253mm

BRANDT BL-50

API20-API325

913x650mm

BRANDT VSM300

API20-API325

720x1220mm

KEMTRON KTL48

API20-API325

712x1180mm

SF300



Aluminum Frame & Composite Frame Shale Shaker Screem

Aluminum Frame & Composite Frame is composed of aluminum & composite frame and 2 or 3 layers of stainless steel wire cloths.The wire cloth can be combined with the frame by metal rubber lining or directly bonded on the frame.
