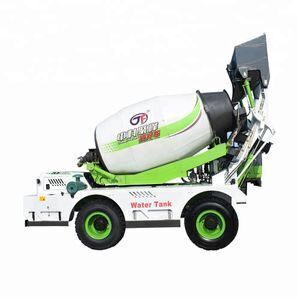

Hot Sale 4 CBM self loading concrete mixer truck

Supplier: Laizhou Jufeng Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Jack Chen
Price: $48000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power(W):	85 kW;	Package Preview:	https://sc01.alicdn.com/kf/HTB1wp1eXfOzK1Rjt_jDq6zJwpXaz.jpg_640x640.jpg;
Place of Origin:	Shandong China;	Condition:	New;
Single gross weight:	8,500 KG;	Weight:	8500 kg;
Certification:	ISO;	Transmission:	4 Wheel Drive and 4 Wheel Steering;
Product name:	self loading concrete mixer truck;	Selling Units:	Single item;
Concrete Output:	4000 L/ batch;	Productivity:	16 M3/h;
Warranty:	1 Year;	Diesel Engine Brand:	YUCHAI ( Cummins Optional);
After-sales Service Provided:	Engineers available to service machinery overseas;	Dimension(LWH):	7500 x 2850x 3600 mm;
Geometric Volume:	6100 L;	Model Number:	CMT4000R;
Package Type:	1 Set Per 40HQ for 4 CBM concrete mixer truck;	Single package size:	110X230X250 cm;
Weight:	8500 kg;	Brand Name:	JF MIX;

Product Description

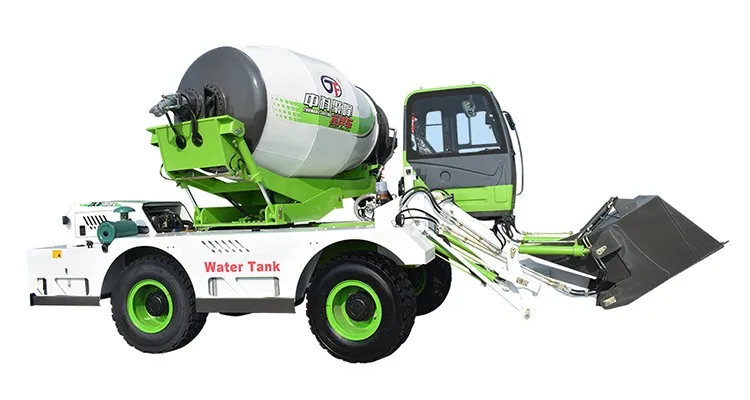

Product Application for CMT4000R self loading concrete mixer truck

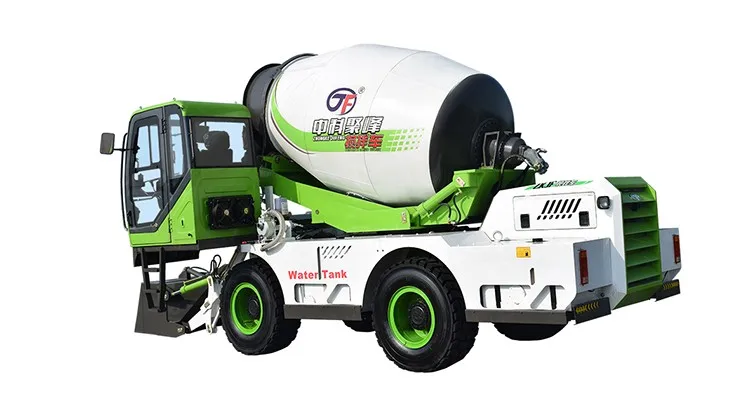

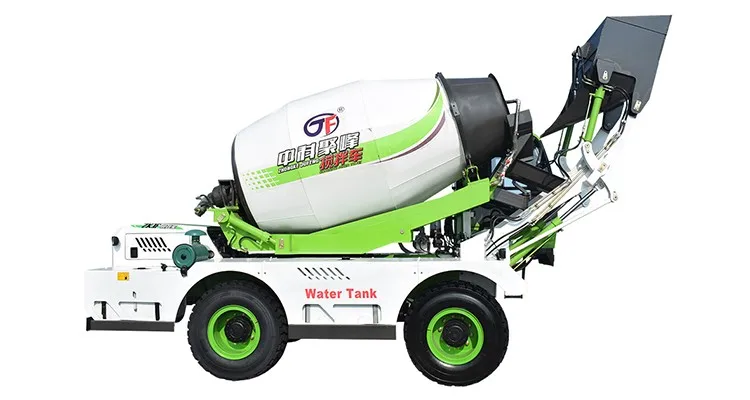

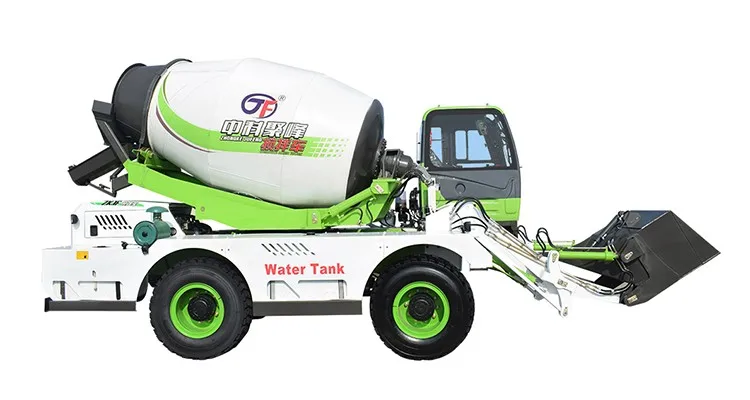

CMT4000R Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful YUCHAI ,85 kW Diesel engine and 4 wheel drive plus 2 wheel steering, the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The mixing unit is slewing hydraulically through 290° for high discharge over

2 m on the four sides of the vehicle.

The the Geometric Volume of Mixing Drum is 6.1 m³. Concrete output is 4 m³ per Batch. The wide cabin windscreen and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance (it may reach even 128m³ of concrete) and reliability. Thanks to these characteristics, it is the ideal solution for rental purposes and for maintenance operations.

Specifications for CMT4000R self loading concrete mixer truck
Mixing Drum	Mixing Volume	4000 L
	Geometric Volume	6100 L
	Concrete Output	4000 L/ batch , 4 Batches/ hr
	Inclination Angle	16°
	Max. Slewing Angle	290°
	Rotating Speed	0~21 rpm
	Body /Bottom Thickness	5 mm/8 mm(Q345B)
	Overall Size	Φ1920x 3206mm
Chute	Max. Slewing Angle	180°
	Tilting Method	Mechanically
	Length	650mm +1500 mm (2 Sections)
Engine	Brand	YUCHAI ( Cummins Optional)
	Model	YCD4J22G
	Rated Power/Speed	116 HP /2400 rpm
	Max.Torque/ Speed	390 N.m/2800 rpm
	Bore x Stroke	105 mm x125 mm
	Displacement	4.33 L
	Type	4-Cylinder,In-line, Turbo Charged, Water-cooled
	Emission Standard	Euro II
Hydraulic System	Reducer Model	HJ80-43
	Hydraulic Pump Displacement	80/40 mL/r
	Hydraulic Motor Displacement	63 cm3/rev
Water Supply System	Water Tank Volume	2 x 330 L
Water Supply System	Water Supply Mode	Self-contained, Hydraulic Driven water pump
Chassis	Structure	Integrated Structure
	Drive Type	4 X 4X4
	Transmission	2 Forward +2 Reverse Shift (Low+ High Speed)
	Torque converter	YJ280 ( Split Type)
	Gearbox Mode	Counter Shaft, Power-shift
	Wheelbase	2400 mm
	Tread	1820 mm
	Loading Shovel Capacity	600 L
	Brake Type	Air Brake
	Tyre Size	16/70-20
Vehicle	Drum and Shovel Control	By Joystick
	Driver's Cab	Air-conditioner Inside
	Max. Drive Speed	30 km/h
	Grade Ability	30 %
	Mini Turning Radius	4000 mm
	Max. Payload	9,500 kg
	Operating Weight	8,500 kg

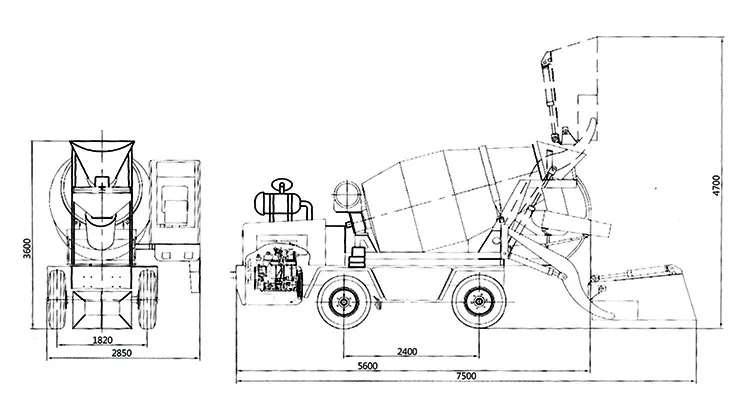

	Overall Size	7500 x 2850x 3600 mm

Main Features

1) China TOP Brand YUCHAI Diesel Engine as standard Power,

Cummins Engine is Optional

2) The Integrated Structure Chassis and Four Wheel Steering

3) The mixing unit could slew hydraulically up to 290°

4) Centralized Lubricating System for Easy Maintenance

5) Closed Circuit Hydraulic Rotation System

6) Spacious Driver's Cab with Shovel Loader Weigher, A/C and Fire Extinguisher inside

Main Features

China TOP Brand YUCHAI Diesel Engine as standard Power, Cummins Engine is Optional

The CMT4000R Self Loading Concrete Mixer is driven by YUCHAI ,85 kW (115 HP), Turbo-charged , Water-cooled Diesel Engine. The YUCHAI Diesel Engine is China Top Brand, which is featured by High Reliablity and Low Fuel Comsumption. The CUMMINS (130 HP) Engine is availabe upon request.

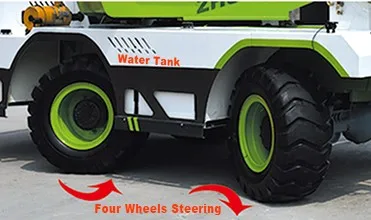

Integrated Structure Chassis

and Four Wheel Steering

The Chassis of this machine is kind of integrated structure, which is much more robust and stronger than that with articulated chassis.

The Drive Type of this mixer is Four Wheel Drive plus Four Wheel Steering (4x4x4), which makes the turning radius much more smaller than normal type. The Turning Radius is only 4 M.

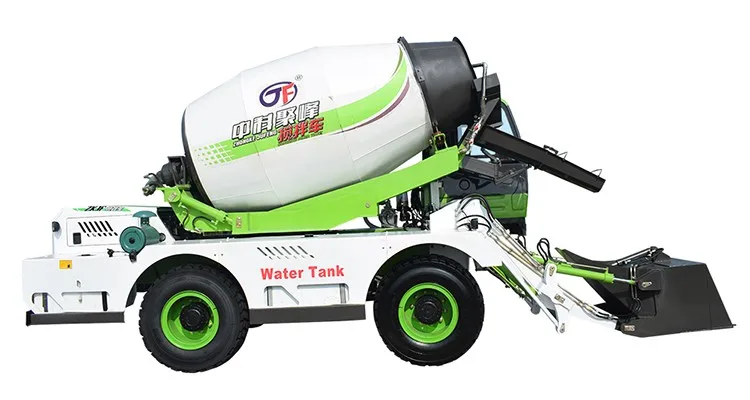

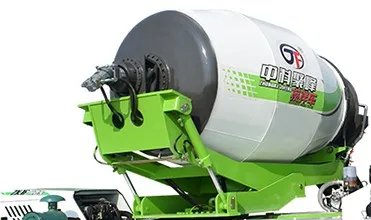

Mixing Drum could slew hydraulically up to 290°

The mixing Drum could slew hydraulically up to 290° for high discharge over 2 m on the four sides of the vehicle. The Bottom Hydraulic Lifting Mechanism could make material discharging more smooth and thorough. One set of 1.2 m chute is standard equipment. The extra prolonged chute is availabe upon request.

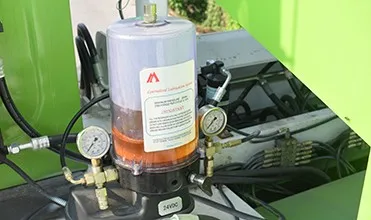

Centralized Lubricating System

The centralized lubricating system get rid of the shortcoming of manual grease adding operation, and it could deliver lubricating grease to those luricating points in fixed time and fixed quantity, which could ensure the friction points run durably and prolong the service time of machine.

Closed Circuit Hydraulic Rotation System

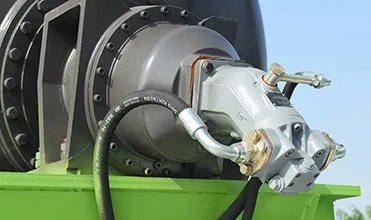

The Mixing Drum is rotated by means of planetary reducer and USA Brand Sunny hydraulic motor in closed circuit.

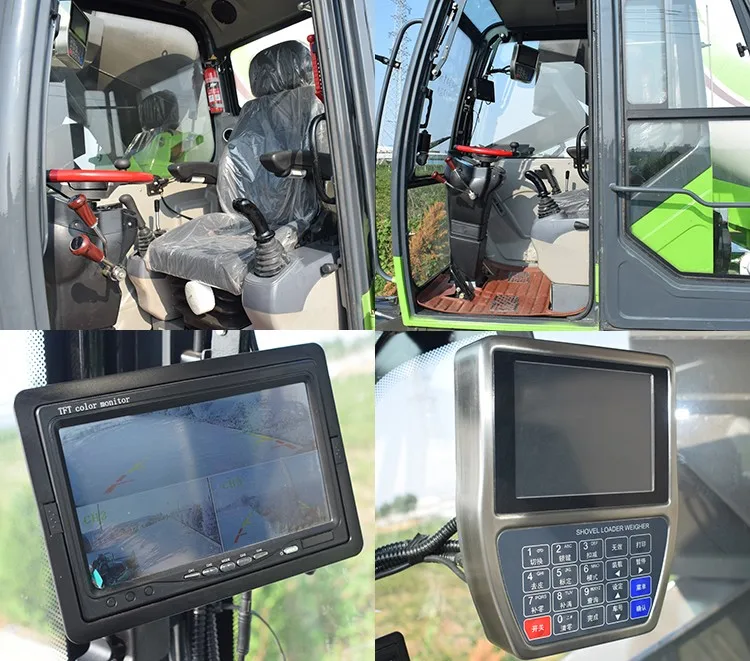

Excavator Style Spacious Driver's Cab

Our driver's cab is much more spacious than other's. It is a kind of crawler excavator style cab. The anatomic seat is with function of flexible suspension and height adjustment .The electronic weighing system is available here. The Load cells are acting on the drum and technical data are displayed on the shovel loader weigher inside the cab.Two sets of joystick control system are situated on the two sides of driver's seat. The panoramic color monitor is near the steering wheel. The operation situation from the four sides of machine could be shown clearly on the Color Monitor, which increase the driving safety . Fire Extinguisher , Safety Hammer and Air Conditioner are also equipped inside the cab.

Packing & Delivery

Packaging
Size	11x2.3 x2.5 mm
Weight	8500 kg
Packaging Details	Nude Packing. 1 Set Per 40 HQ. The mixing drum and driver's cab have to be dismantled and put on the floor of container.

F A Q

Q1.: Are you trading Company or Factory?

A: We are factory. We have been engaged in the production of self loading concrete mixer

for more than 27 years.

Q 2: How about the quality of your products?
A: We are factory with more than 27 years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.

Q3: How about the price?
A: We are factory, not dealer, so we can give you a lower price than those trade companies can.

Q 4: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q5 : Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q6.: How long is your delivery time
A: Generally it is around 7 days if the goods in stock. If there is no goods in stock,

it will be about 20 days, subject to the quantity you ordered.

Q7.: What is your acceptable payment terms.

A: By T/T. 30% deposit in advance, balance to be paid before delivery.

or By irrocable LC at Sight.
