Automatic Plastic Cup Making Machine, Plastic Cup Thermoforming Machine, Cup/Bowl Machine
-
Supplier: Pingyang Sinoplast Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Maggie Lin -
Price: $27000.00 /set -
Min. Order: 1 set
| Processing Type: | Plastic Thermoforming Machine; | Main Motor Power: | 11KW,6P; |
| Voltage: | 380V/50HZ; | Applicable Industries: | Food & Beverage Factory; |
| Material: | PP, PS, PET, PVC,PLA; | Payment Terms: | L/C,T/T; |
| Mode of cutting arrangement: | In mould automatic; | After-sales Service Provided: | Field maintenance and repair service; |
| Certification: | CE,UL; | Control method: | PLC; |
| Packaging Detail: | Standard export wooden case Or Plastic Film; | Approximate Max. Forming Area: | 660 x 320 mm; |
| Place of Origin: | Zhejiang China; | pillar: | 4; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Warranty: | 1 year; |
| Dimension(L*W*H): | 3550*1330*2350mm; | Brand Name: | sinoplast; |
| Approx. Running Speed: | 15-30 Stroke / min approx. during production; | Condition: | New; |
| Port: | Ningbo; | Product Type: | Plastic Cup; |
| Supply Ability: | 10 Set/Sets per Month Plastic Cup Making Machine; | Weight: | 4000kw; |
| Sheet thickness Range: | 0.20-2.0 mm; | Approx. Sheet width required for feeding: | 500-660 mm in rolls.; |
| Power(W): | 45KW; |
You are here:Home>>Plastic Plate Making Machine

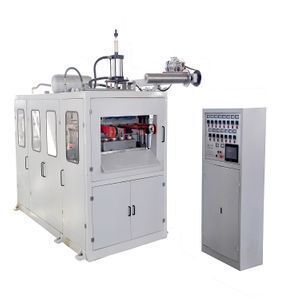

Disposable Automatic Plastic Plate Making Macine/Plastic Cup Making Machine Price
I. Usage:
SPC-660C Automatic Disposable Plastic Cup Making Machine is mainly used to form PP/PS/PET/PVC sheet into various
kinds of disposable plasti cups, such as hot/cold drinking cup, ice-cream cup, yogurt cup, milk cup, jelly cup, juice cup, etc.
It could also make some regular shape products, such as plate, bowl, cover, lid, dish, etc with different moulds.
II. Main Features:
1) The stretching of plugs inside of the upper mould are controlled by air cylinder.
2) The sheet feeding is driven by pin chain. The pin chain is controlled by motor with inverter. The feeding length is controlled by the encoder.
3) It adopts four pillars to fix the mould. We could adopt four pillars to fix the mould.
4) The up mould is fixed and the down mould movement is driven by twin cam.
5) There are total 16 heating zones. The temperature of each zone is controlled by Temperature control module.
6) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.
7) We adopt square steel to make the machine frame stronger.
8) This machine adopt PLC and touch screen to control.
III. Main Technical Parameter:
Model | SPC-660C |
Mould Driving Method | Cam |
Approximate Max. Forming Area | 660 x 300 mm |
Approx. Running Speed | 15-30 Stroke / min approx. during production |
Approx. Sheet width required for feeding. | 500 – 660 mm in rolls. |
Mode of cutting arrangement. | In mould automatic |
Sheet thickness Range | 0.20 – 2.0 mm |
Material | PP, PS, PET, PVC,PLA |
Max. Draw depth, i.e. cup length. | 140 mm (Could be special design) |
Oil Pump Motor Power | 11KW, 6P |
Sheet Feeding Motor | 2.2KW |
Max. Sheet roll diameter. | 800 mm |
Heating arrangement | Top + bottom heating with IR Ceramic Heater(120pieces, 650W) |
Temperature Controller & Thermocouple. | PID K-Type |
Type of Mould | Multi cavity 1 – 3 row. |
Approx. Electrical Consumption | 45KW/hr |
Approximate Dimension | L3100×W1500×H2500 (mm) |
Approximate Weight | 4000Kg |
According to round cup with Dia.=75mm, we could make a mould with
20 cavities or 21 cavities for this machine.
???
???
Pingyang Sinoplast Machinery Co.,LTD is a full service manufacturing company and willing to
supply mould, plastic cup making machine,thermoforming machine,vacuum forming machine,
printing machine, eps foam sheet extruder,auxiliary machine and other machineries in mechanical industry.
We produce many different types products for your selection.
WARRANTY:
1 year warranty after installation, if the spare parts is broken in the warranty period, we will send replacement parts as free, but delivery cost will be paid by buyer.
INSTALLATION AND TRAINING:
We can send 1-2 engineers to install and set up machine, but all the charges should be paid by buyer.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How does your factory do regarding quality control?
A: We have passed the ISO9001:2000 Quality Management System and CE certifate and we have a special QC department in charge of products' quality.
3. Q: How long is the warranty period?
A: Cam System three years, others machinery have one year warranty,
4. Q: What's the main market of your company?
A: Our products are well sold throughout the country and exported to many different countries, such as, Southeast Asia, Russia, Europe, Middle East, Africa, America and etc.
5. Q: How much production capacity of your company one year?
A: This depends on your needs.
6. Q: Can we visit your machine operation in your factory?
A: We have own plastic products company, you can see all the machine operation.
7. Q: Where is your factory located?
A: Our factory is located in Xingbei Road, Doubei Village, Haixi Town, Pingyang County, Wenzhou City, Zhejiang Province, China.
8. Q: How to reach our factory?
A: It will take 50 minutes from Wenzhou Airport by car, 25 minutes from Ruian Highspeed Rail Station by car.
