SINOPLAST 35KW OEM Plastic Cup Making Machines Low Price Foam Thermoforming Machine
-
Supplier: Pingyang Sinoplast Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Maggie Lin -
Price: $27000.00 /set -
Min. Order: 1 set
| Certification: | CE,CSA; | Brand Name: | Sinoplast; |
| Applicable Industries: | Food & Beverage Factory; | Supply Ability: | 5 Set/Sets per Month High Speed Plastic Cup Making Machine Price; |
| Forming Area: | Can be Customized Thermoforming Machine; | Voltage: | 380V/50HZ; |
| MOQ: | 1 Set; | Running Speed: | ≤32cycles/min; |
| Processing Type: | Plastic Thermoforming Machine; | Solenoid Valve: | MAC, USA; |
| Warranty: | 1 Year; | Main Servo Motor: | P-15KW (4P); |
| Product Name: | Plstic Cup Thermoforming Machine Price; | Sheet Thickness: | 0.25~2.0mm; |
| Payment Terms: | L/C,T/T,Western Union; | Weight: | 3500kg; |
| Power(W): | 35KW; | Packaging Detail: | Plastic Film, Oil And Wooden Case; |
| Product Type: | Plastic Cup; | After-sales Service Provided: | Online support; |
| Max. Forming Area: | 760X420mm; | Condition: | New; |
| Color: | Can be Customized; | Port: | Ningbo or Shanghai; |
| Dimension(L*W*H): | 3.7x1.5x2.3m; | Electrical Part Brand: | Can be Customized Plastic Cup Thermoforming Machine; |
| Place of Origin: | Zhejiang China; |
You are here:Home>>Plastic Cup Making Machine

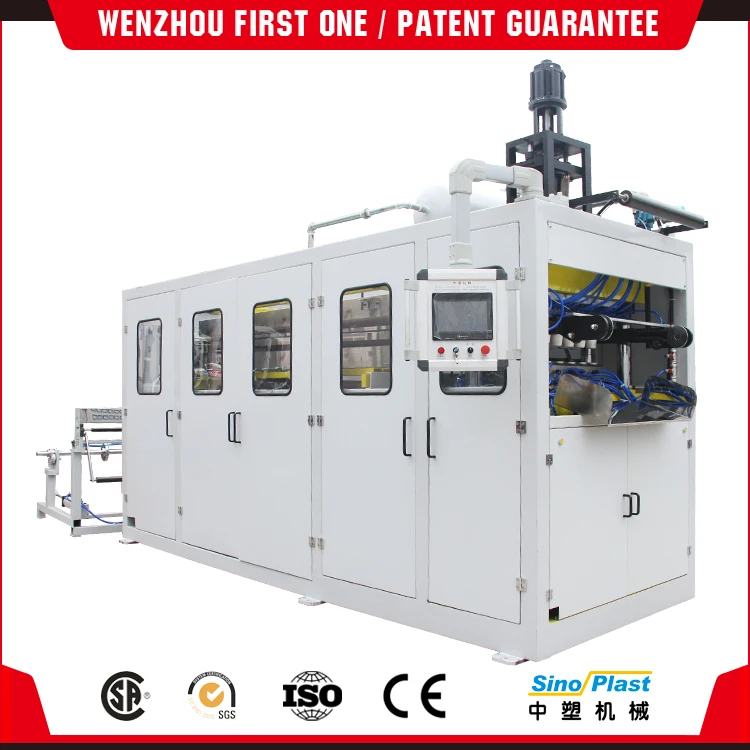

SSINOPLAST 35KW OEM Plastic Cup Making Machines Low Price Foam Thermoforming Machine
| Machine Frame | Square Steel Size 120×120: machine base is complete steel plate with thickness=40mm |
| Machine Door | The top part of the door with observation window from the operation side, Heating oven could move outside |
| Mold Plate | QT500 nodular cast iron, pore-free, sand free |
| Pillar | 4-pillar dia.=95mm, 40Cr steel thermal refining, hard chrome plating, mirror finish: Gide bushing Dia.≤200mm, Material: metal ceramic Zns |
| IR Ceramic Heater | IR Ceramic Heater,Size:240X80mm: Top Oven:machine direction 10pcs*9 zones: Bottom oven:machine direction 9pcs*9zones Total:171pcs,Power:800W/pcs,made in China |
| Max. Forming Area | 760×420mm |
| Max.Forming Depth | 200mm |
| Mold Plate Size | 1350×420mm |
| Main Gearmotor | P-15KW(4P) |
| Strecting Air Cylinder | 160X160mm |
| Sheet Feeding Motor | 4KW |
Sheet Thickness | 0.25~2.0mm |
| Running Speed | ≤32cycles/min |
| Electrical Consumption | Approx 55KW |
| Installing Power | Approx130KW |
| Solenoid Valve | MAC, USA |
Pingyang Sinoplast Machinery Co.,LTD is a full service manufacturing company and willing to supply mould, plastic cup making machine,thermoforming machine,vacuum forming machine,printing machine, eps foam sheet extruder,auxiliary machine and other machineries in mechanical industry.We produce many different types products for your selection.
WARRANTY:
1 year warranty after installation, if the spare parts is broken in the warranty period, we will send replacement parts as free, but delivery cost will be paid by buyer.
INSTALLATION AND TRAINING:
We can send 1-2 engineers to install and set up machine, but all the charges should be paid by buyer.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How does your factory do regarding quality control?
A: We have passed the ISO9001:2000 Quality Management System and CE certifate and we have a special QC department in charge of products' quality.
3. Q: How long is the warranty period?
A: Cam System three years, others machinery have one year warranty,
4. Q: What's the main market of your company?
A: Our products are well sold throughout the country and exported to many different countries, such as, Southeast Asia, Russia, Europe, Middle East, Africa, America and etc.
5. Q: How much production capacity of your company one year?
A: This depends on your needs.
6. Q: Can we visit your machine operation in your factory?
A: We have own plastic products company, you can see all the machine operation.
7. Q: Where is your factory located?
A: Our factory is located in Xingbei Road, Doubei Village, Haixi Town, Pingyang County, Wenzhou City, Zhejiang Province, China.
8. Q: How to reach our factory?
A: It will take 50 minutes from Wenzhou Airport by car, 25 minutes from Ruian Highspeed Rail Station by car.
If you are interested in our products,You can click Home to learn more.
-
