Product Details

Payment Terms:	L/C,T/T;	Place of Origin:	China;
Condition:	New;	Power(W):	11.5;
Applicable Industries:	Food Shop;	Max forming area:	47029047;
Port:	Ningbo/Shanghai port;	Brand Name:	Jiacheng;
Warranty:	1 year;	Punch speed:	15-35 times/min;
Processing Type:	Plastic Thermoforming Machine;	Packaging Detail:	Wooden box;
Dimension(LWH):	350010001800;	Product Type:	Plastic Cup;
Weight:	2400;	Supply Ability:	20 Set/Sets per Month;
Voltage:	380V;	Material:	PVC\PET\PS;
Certification:	CE;	After-sales Service Provided:	Online support;

Product Description

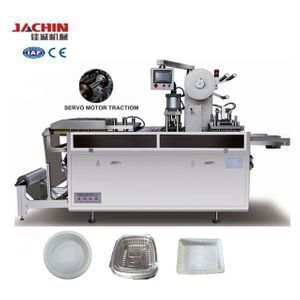

JC-500C Plastic Fast Food Box Product Type PS Plate Making Machine

JC-500C series automatic blow molding machine is developed by our R&D personnel according to the needs of the packaging market.

The machine adopts automatic flow hood blow molding or suction molding, punching, cutting and other processes to meet the special requirements of users for products. The equipment uses plate heating to produce small power consumption, small surface area, economic and practical, widely used in PVC, PET, PS tray, cup lid thermoforming box and other industries.

Features

1.Speed reducer,main-rotating connection, main shaft are on the line for mechanical transsion.

2.Sensor controls are adopted in Pneumatic system, which is equipped with PLC touch screen.

3.JC-500C has frequency control of motor,servo motor traction which make machine stroke

adjustable. It's easy to change the mold.

4.Positive pressure formation in the equipment(Puffing forming).

Main techical parameters

Model	JC-500C
Suitable material	PET/PS/PVC/PLA
Max forming area	470*290mm
Max forming depth	47mm
Punch speed	15-35 times/min
Compressed air	0.4-0.6Mpa
Mold cooling	60L/H tap/recycle water
Total power	11.5KW
Package size	350011001800mm
Weight	2400Kg

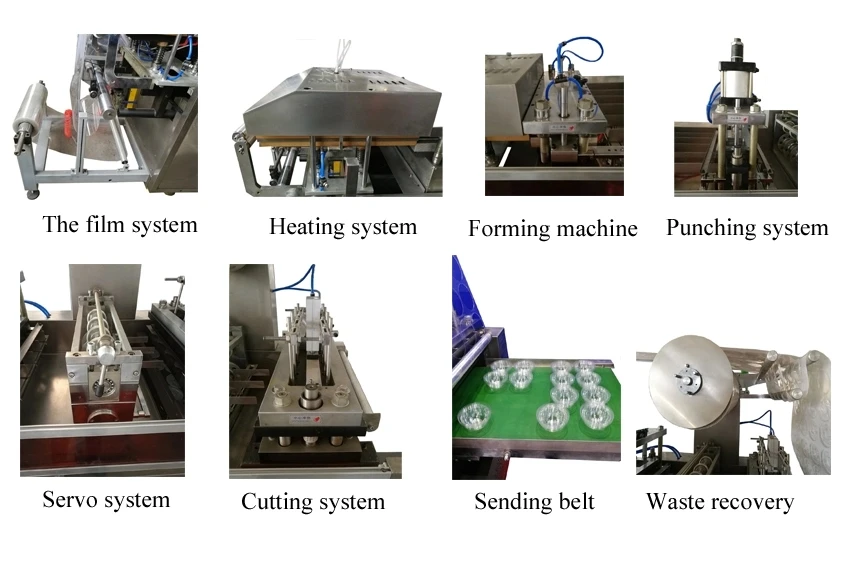

Details

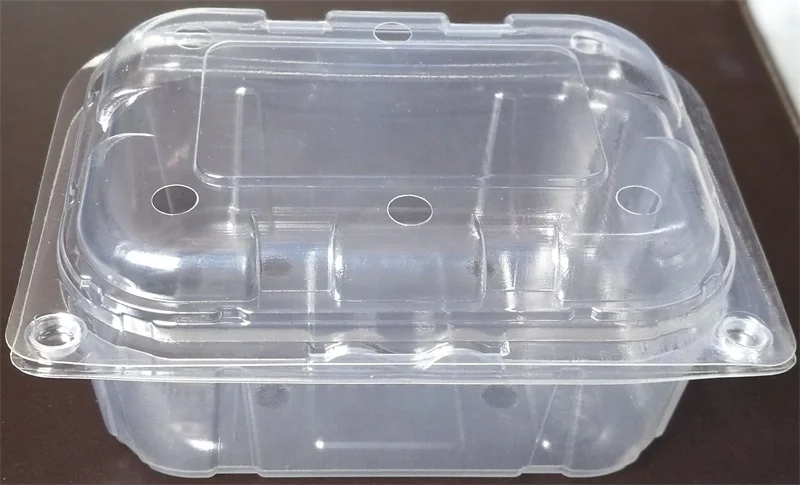

Finished Products

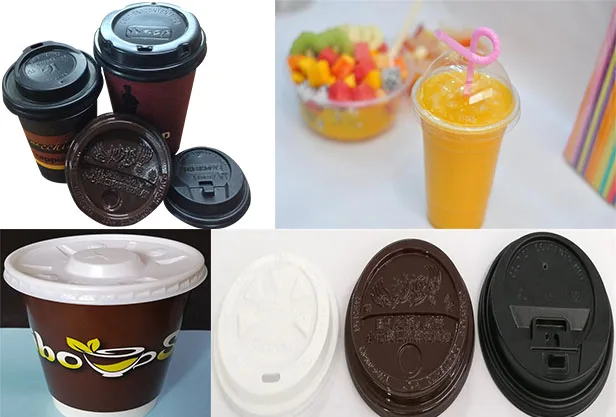

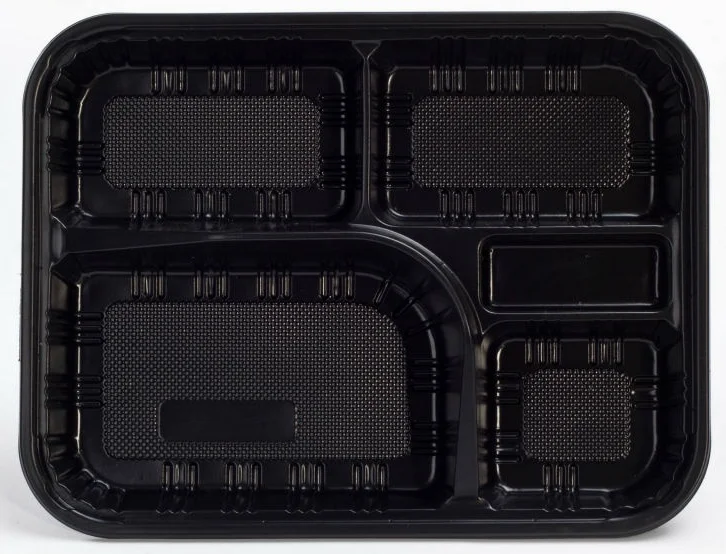

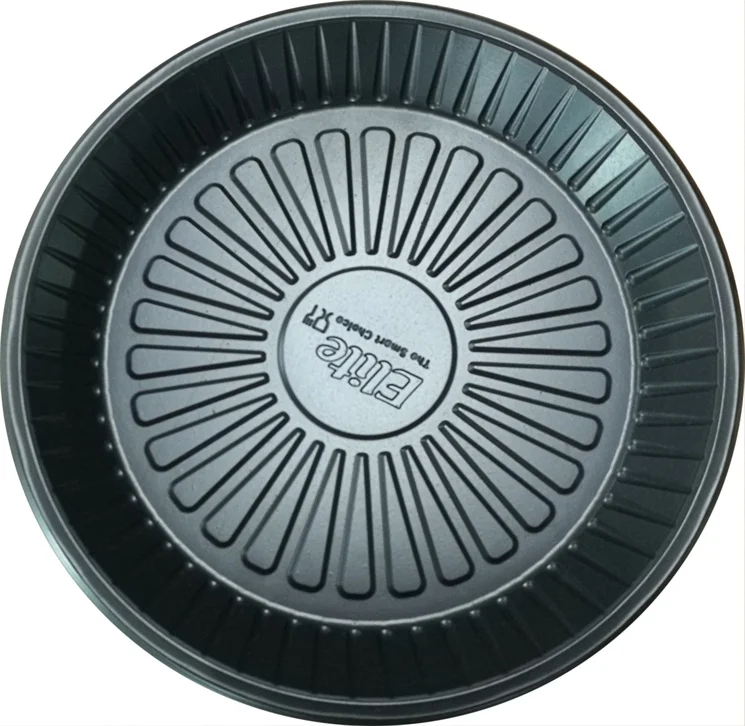

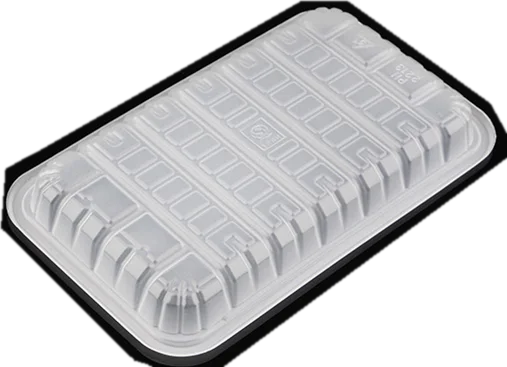

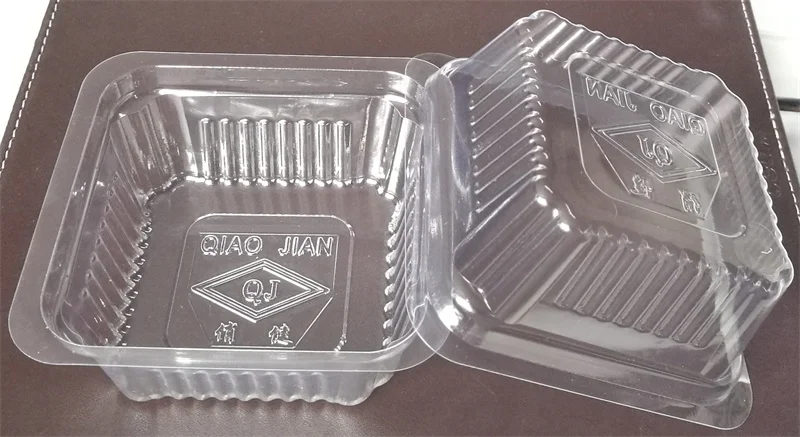

Samples

Change the mold,any shape of containers/trays/plates can be made.

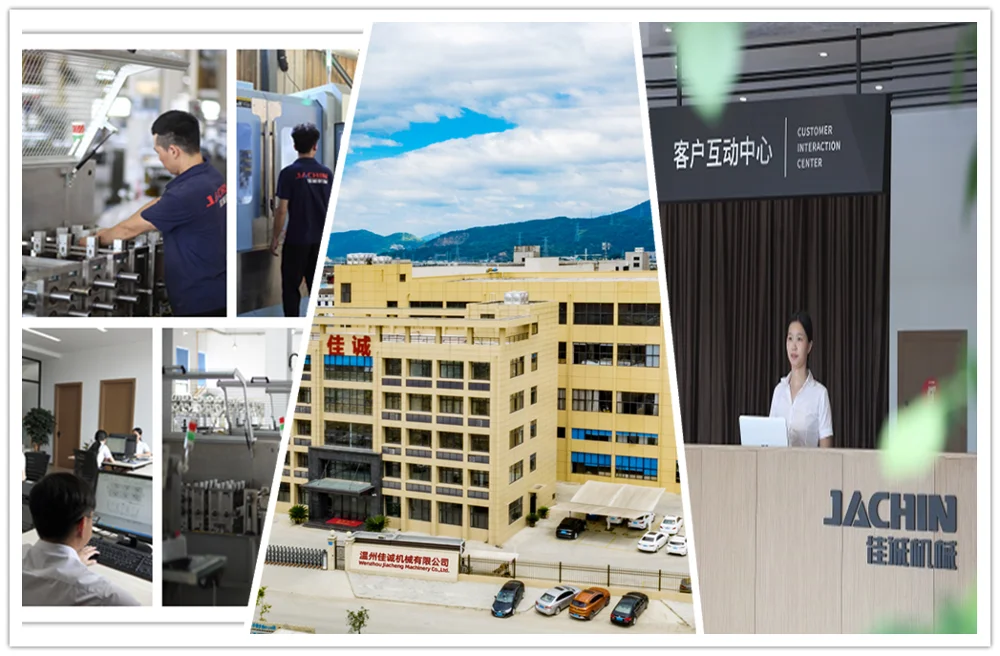

Company Information

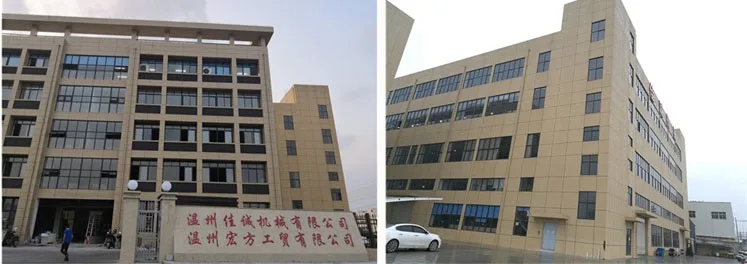

Wenzhou Jiacheng machinery Co.,Ltd

THE HERITAGE OF 20YEARS PACKAGING PROFESSIONAL KNOWLEDGE

Wenzhou Jiacheng Machinery Co.,Ltd is located in, Wenzhou City. This is a professional company engaded in various packaging machinery pharmaceuticals, mechanical design,development,production and marketing of integrates joint-stock enterprises. We have certain technical force and advanced production techinque;with a modern system,also a craxk team with youtheful vigor.

Since its establishment, the company all along adhere "good faith-based,developent study,innovation" spirit of enterprise.Based on"human technology,and customer-oriented service,develop the market with integrity and high quality and establish the cooporate culture system with the unique features.Company has passed the 9001 quality system certification and CE certification in 2010 year.

Our Exhibition

Our Services

Pre –service

After-service

1.The inquiry will be replied within 24 hours.

2.We will strictly inspect every process of the production, and will send you the check and accept video.

1.We will offer you one warranty for the all machine.

2. The engineer is available to oversea, and we will train your worker to opearate the machine.

Note:If you need us send English for install or adjusting, the buyer should take on all costs required during our technician’s stay in the buyer’s county, like VISA FEE, round airplane tickets, accommodation, foods and others. The engineer’s salary is 80 USD/day.

Remarks:

Delivery time: 45 working days after payment and drawing confirmed

Term of payment:30%($) T/T in advance, and the balance 70%($) T/T payment before shipment

Price terms: FOB Ningbo
