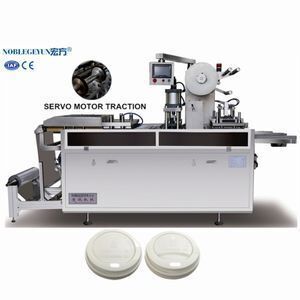

Customizable Biodegradable PLA Lid Cover Making Machine

Supplier: Wenzhou Jiacheng Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms ellen zheng
Price: $26000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product Type:	PLA Lid, Cover;	Dimension(LWH):	350010001800mm;
Warranty:	1 Year;	Brand Name:	NOBLEGEYUN;
Controller:	PLC+Touch Screen;	Driven Type:	Servo Motor Traction;
After-sales Service Provided:	Engineers available to service machinery overseas;	Punch Speed:	15-45 times/min;
Power(W):	11.5kw;	Forming Area:	47029047mm;
Certification:	CE ISO;	Supply Ability:	20 Set/Sets per Month;
After-sales Service Provided:	Field maintenance and repair service;	Compressed Air:	0.6-0.8 Mpa;
Processing Type:	Other;	Weight:	2400kg;
Payment Terms:	L/C,T/T;	Packaging Detail:	According to the customers' requirement. Normally in wooden case.;
Capacity:	9000 sheet/hour;	Stroke:	60-300mm;
Processing Type:	Thermoforming;	Port:	Shanghai/Ningbo, China;
Place of Origin:	Zhejiang China;	Voltage:	380V;
Mold Cooling:	60 L/H tap/recycle water;	Condition:	New;

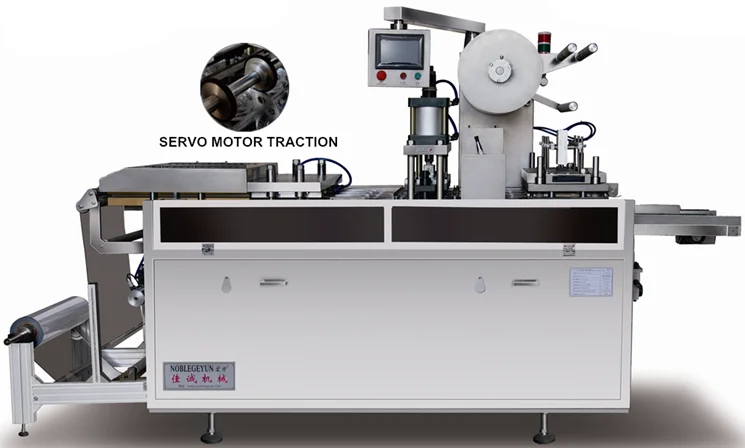

Customizable Biodegradable PLA Lid Cover Making Machine

Product Description

Machine Introduction

JC-500E Automatic Biodegradable PLA Lid&Cover Thermoforming Machine is developed by our research and development personnel according to the demand of packing market. This machine is a new type product developed in light of pharmaceutical standard GMP and food standard QS. Machine adopts a fully automatic forming, punching and diet cutting as the special properties of product requires of the users. It is with advanced technology, safe and simple operation, which will avoid the consumption of labor on the manual punching and contamination from the touch with the employee. therefore, the quality requirement is secured during the production.

Machine Features

1) Speed reducer, main-rotating connection, main shaft are on line (to decrease driving error) for mechanical transmission.

2) Sensor controls are adopted in pneumatic system. PLC control makes the whole machine run smoothly, keeps synchronous stability during the products are to be packed in multi-labor, long- distance .

3) Main motor variable frequently speed regulating ,the travel adjustable at will, simple and convenient to change the mould, cam traction , stable running .

4) Positive pressure formation in the equipment(Puffing forming).

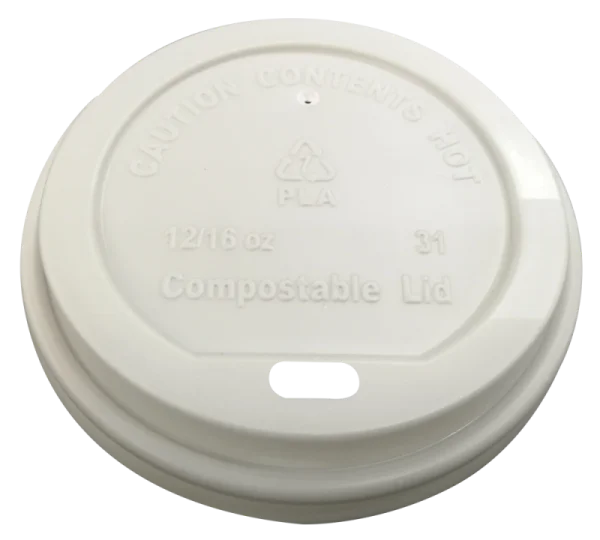

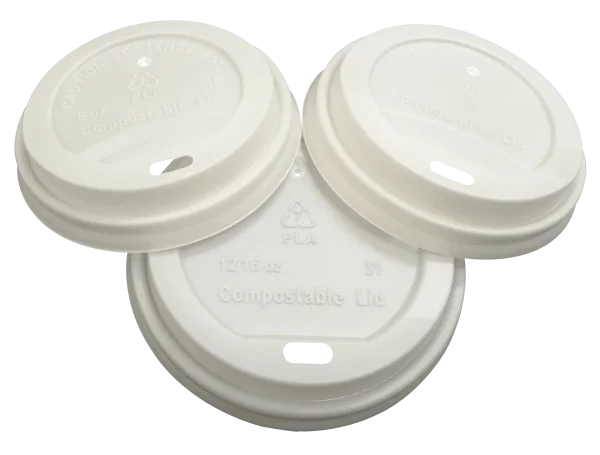

Samples

Main Technical Parameters

Main Techical Parameters
Punch speed	15-45(Times/min)
Max.Forming area	470mm×290mm
Max.Forming depth	47mm
Stroke	60-300mm
Packing Material	PLA,PVC,PET,PS Hard pieces0.15-0.6*500mm, Rolls 70-76
Total power	11.5kW(380V)
Compressed air(Mpa)	0.6-0.8Mpa
Mold cooling	60L/H tap water/recycle water
Overall dimension	3500×1000×1800mm
Weight	2400kg

Advantage

1) The stainless steel fuselage protects the internal structure of the machine.

2) The outer parts of the machine have a protective cover that not only protects the machine

components, but the most important purpose is to protect the operators from safe production.

3) The inside of the fuselage is a H-shaped structure with reasonable layout and easy cleaning and

maintenance. The most important function is to greatly increase the load capacity, so that the

machine can run smoothly.

4) We are specialized in the manufacture of automatic plastic lids forming machine over ten years

experience. The earliest manufacturer of cup lid machine in China.

Certifications

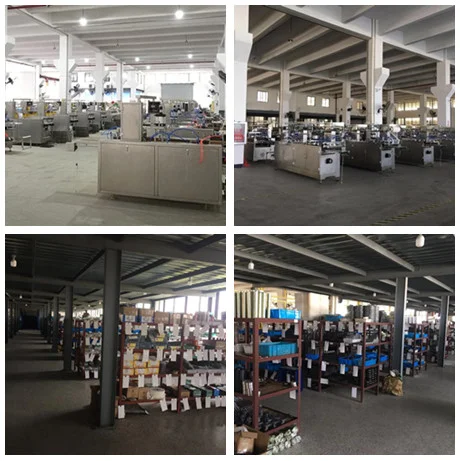

We have passed I S O 9 0 0 1 quality system certification and C E certification. Welcome to visit our company!

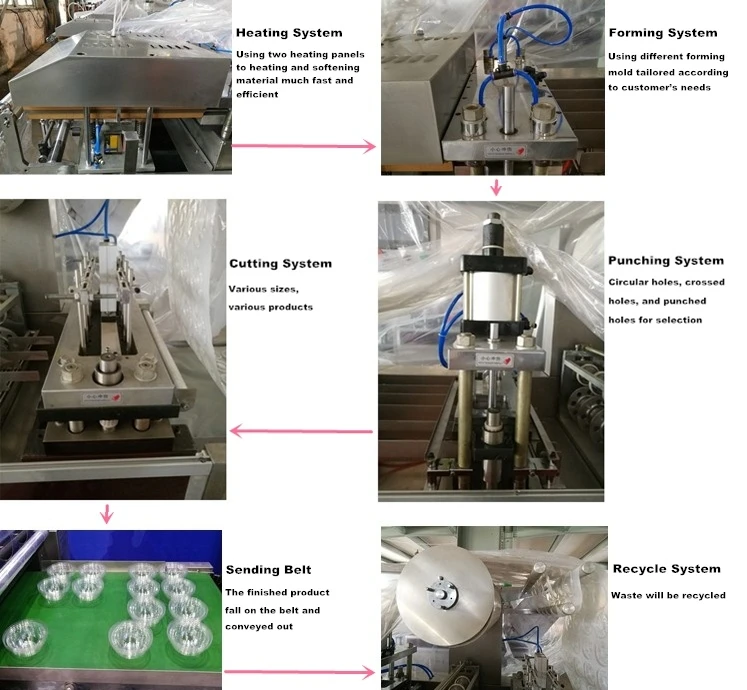

Machine Details
