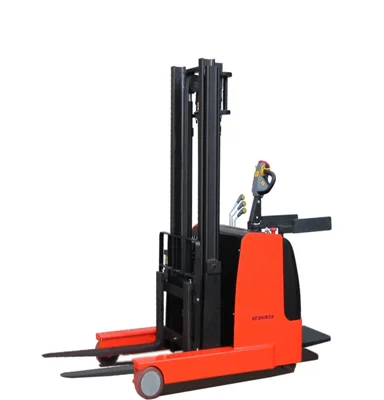

Electric Reach Stacker 2ton 3500mm
- 6090.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Load Center: | 600mm; | After-sales Service Provided: | Online support; |
| Warranty: | 2 years warrenty; | Supply Ability: | 500 Piece/Pieces per Month Full Electric Stacker; |
| Certification: | CE,GS,SGS,ISO9001,BV; | Battery Charger: | 30/24A/V; |
| After Warranty Service: | Video technical support; | Showroom Location: | None; |
| Port: | shanghai port; | Condition: | New; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Brand Name: | YI-LIFT; |
| Packaging Detail: | Full Electric Stacker Export Packing; | Local Service Location: | None; |
| Dimension(L*W*H): | CQD2035; | Color: | silvery; |
| Capacity: | 1500kg; | Place of Origin: | Jiangsu China; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,alibaba E-Credit Card; | Applicable Industries: | Food & Beverage Factory; |
- Heavy duty design with top quality mast construction.
- Powerfull drive wheel and power unit made in Europe
- Top quality electronic control system from Curtis .
- conforms to EN1757-1:2000,EN1726.
| Model CQD | CQD2035 | ||||
| capacity Q | kg | 2000 | |||
| load center C | mm | 450 | |||
| Mast closed length L1 | mm | 2125 | |||
| Mast reach length L2 | mm | 2675 | |||
| Overall width W | mm | 1060 | |||
| Mast closed height H1 | mm | 2350 | |||
| Handle height H2 | mm | 1160~1450 | |||
| spindle size | mm | Ø200×900 | |||
| min height m1 | mm | 90 | |||
| mast min height | mm | 70 | |||
| Wheel base L0 | mm | 1460 | |||
| wheel | PU | ||||
| driving wheel size | mm | Ø230×80 | |||
| Front wheel size | mm | Ø200×80 | |||
| Min. Turn radius Wa | mm | 1510 | |||
| Aisle wight ast | mm | 2700 | |||
| Max lifting heiht H | mm | 3500 | |||
| Max working height H3 | mm | 4100 | |||
| Mast tilt | forward α | (°) | 2 | ||
| backward β | (°) | 5 | |||
| Max running speed | km/h | 6.0 | |||
| Max. Climbing ability | % | 5 | |||
| Way of control | Electro-hydraulic propotion control | ||||
| Driving motor | Kw | 1.5 | |||
| Lifting motor | Kw | 3.0 | |||
| Truning motor | Kw | 0.165 | |||
| Battery | AH/V | 240/24 | |||
| Battery weight | kg | 240 | |||
| Net weight (without battery) | kg | 1750 | |||
