High-quality HOT-SALE New Hydraulic Cylinder Honing Machine 3MB9817
-
Supplier: Xian Amco Machine Tools Co., Ltd. -
Region: Shaanxi, China -
Contact: Ms Yang Li -
Price: $5300.00 /set -
Min. Order: 1 set
| Weight (KG): | 1300; | Condition: | New; |
| Packaging Detail: | WOODEN CASE; | CNC or Not: | Normal; |
| Warranty: | 1 year; | After-sales Service Provided: | Online support,Video technical support; |
| Max.diameter of honed: | 25-170MM; | Power (kW): | 1.5; |
| Key Selling Points: | High-accuracy; | Applicable Industries: | Machinery Repair Shops; |
| Local Service Location: | None; | Voltage: | 380V/50HZ/3PZ; |
| Max depth of hole honed: | 320MM; | Payment Terms: | L/C,T/T; |
| Port: | CHINA PORT; | Brand Name: | AMCO; |
| Showroom Location: | None; | After Warranty Service: | Video technical support; |
| Supply Ability: | 30 Set/Sets per Month; | Place of Origin: | China; |

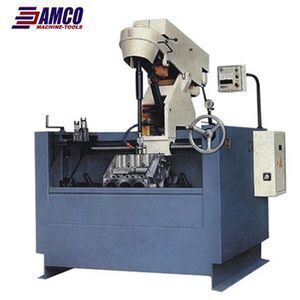

cylinder honing machine 3MB9817
3MB9817 is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles ,motorcycles and tractors , and also for other machine element holes.
-The machine table can shift of the fixture change 0 degree, 30 degree and 45 degree
-The machine table is easily up and down manually 0-180mm..
-Reverse precision 0-0.4mm
-Select mesh-wire degree 0-90 or non-mesh-wire
Model | 3MB9817 | 3MB9808 |
Max. diameter of hole honed | 25-170 mm | 25-82mm |
Max depth of hole honed | 320 mm | 200mm |
Spindle speed | 120, 160, 225, 290 rpm | 200; 280rpm |
Stroke | 35, 44, 65 s/min | 19;27 s/min |
Power of main motor | 1.5 kw | 0.55kw |
Power of cooling pump motor | 0.125 kw | 0.09kw |
Machine working inside cavity dimensions | 1400x870 mm | 600x380mm |
Overall dimensions mm | 1640x1670x1920 | 600x850x195 |
Machine weight | 1000 kg | 500kg |
-
