API enterprise for oil/gas well 20 years cementing tools cementing plug

Supplier: Puyang Zhongshi Group Co., Ltd.
Region: Henan, China
Contact: Mr Charley Liu
Price: $200.00 / >=50 sets
Min. Order: 50 sets

Click here to contact

Product details

Payment Terms:	T/T;	Warranty:	1Year;
Dimension(LWH):	650650650;	Voltage:	220V;
Certification:	API;	Model Number:	API Type, 4 1/2"-20";
Port:	tianjin/Qingdao;	Condition:	New;
Brand Name:	Zhongshi;	After-sales Service Provided:	No overseas service provided;
Processing Type:	Other, Other;	Supply Ability:	500 Set/Sets per Month;
Packaging Detail:	Woodencase;	Place of Origin:	Henan China;
Material:	Other;	Type:	Cementing Flug;
Power(W):	500KW;	Use:	Well Drilling, Well Drilling;
Model Number:	4-1/2"-20";	Delivery Detail:	Shipped in 15 days after payment;
Weight:	23KG;

High quality Top and bottom plug/Cementing Plug/cementing tools

Product Description

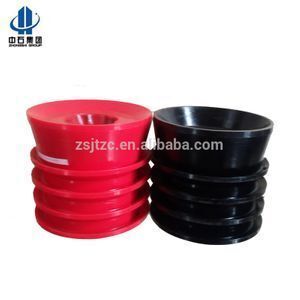

Cementing Plugs:

Cementing plugs are manufactured of graded rubber that is fused upon a composite or Aluminum core.
>>This top plug can be used when dual plug system is not required and Bottom cementing plug can be used when dual plug system is required.
>>These plugs are completely PDC drillable.
>>Operating range of temperature with Aluminum core is up to 200 degree Fahrenheit.
>>Plug can be ordered for higher operating temperature and operation in either synthetic or mud fluids.
>>Available in 4 1/2" to 20 "sizes + any special sizes.

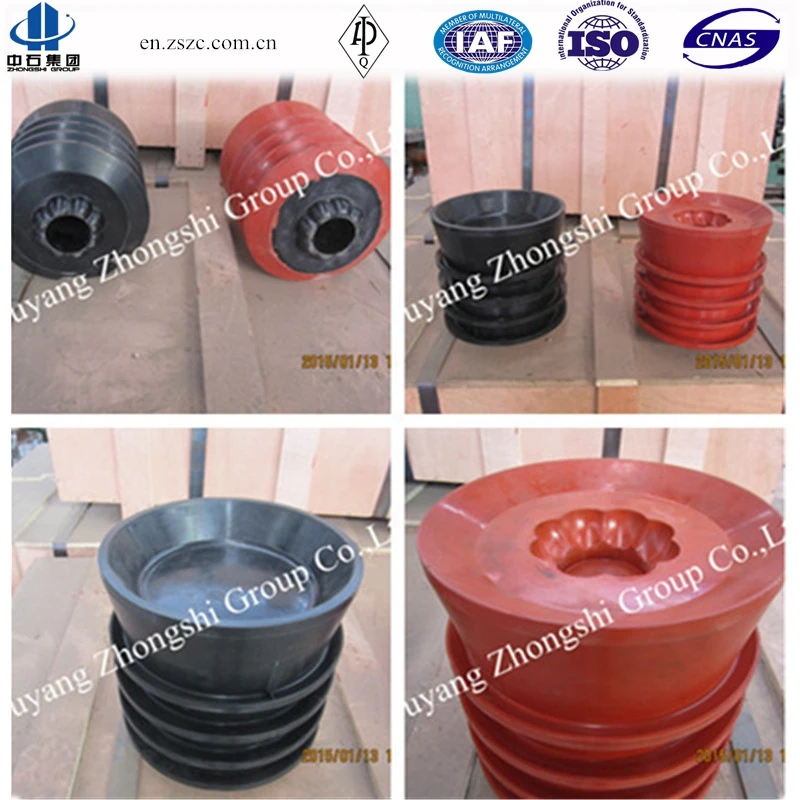

Top Plugs:
The Bottom Cementing Plug is designed to exert continuous pressure on the casing wall. The core is made of special materials such as Plastic, Aluminium or Phenolic depending on the application and well conditions. The tapered base fits the cavity of the bottom plug initiating a positive seal. A solid rubber top plug is also available.

Bottom Plugs:
Like the Top Cementing Plug, the fins and tail section provide positive wiping action. Fins also serve as a seal while cementing. The core of the bottom plug also made of special materials such as Plastic, Aluminium or Phenolic depending on the application and well conditions. A rubber diaphragm at the top of the plug ruptures after the plug is seated allowing cement to flow through.

Technical Parameters

Casing size(in)	casing weight range		Wiper Fin O.D
Casing size(in)	mm	in	mm	in
4 1/2"	14.14-17.26	9.50-11.60	110	4.331
5"	17.11-35.86	11.50-24.10	122	4.803
5 1/2"	20.83-39.88	14.00-26.80	135	5.315
7"	25.30-56.55	17.00-38.00	170	6.693
7 5/8"	35.72-63.69	24.00-42.00	185	7.283
9 5/8"	53.57-79.62	36.00-53.50	235	9.252
10 3/4"	60.27-97.77	40.50-65.70	260	10.236
13 3/8"	71.43-107.15	48.00-72.00	333	13.110
20"	139.89-197.93	94.00-133.00	498	19.606

Size of casing (mm/inch)	O.D. (mm/inch)	Height (mm/inch)	Conn.API
139.7(5-1/2)	134(5-9/32)	250(9-27/32)	Rotary
177.8(7)	170(6-11/16)	235/260(9-1/4/10-1/4)	Rotary
244.5(9-5/8)	232(9-1/8)	274(10-25/32)	Non-Rotary
339.7(13-3/8)	325(12-51/64)	355(13-63/64)	Non-Rotary
