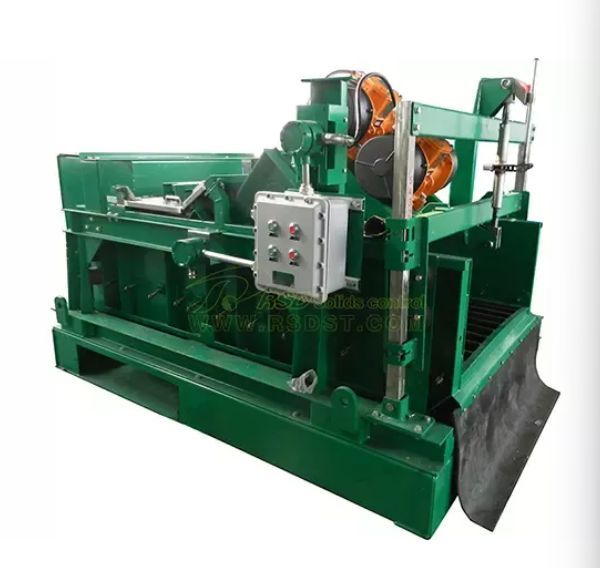

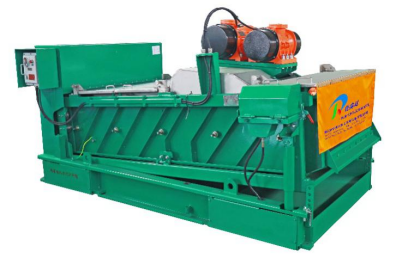

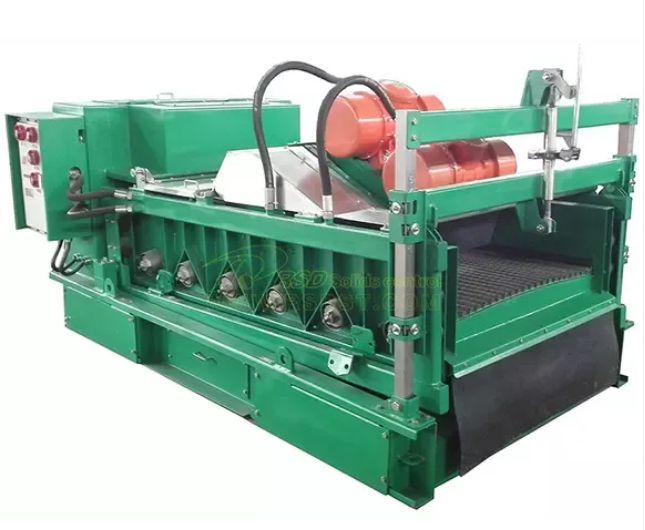

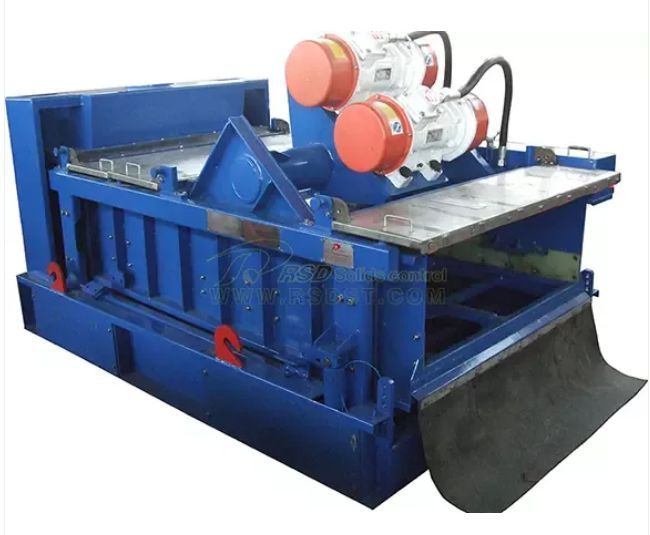

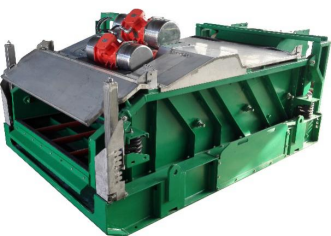

RSD Linear motion shale shaker

1. As the first stage separation equipment in oil and gas drilling (HDD).

2. Solid-liquid separation and classification in mining and coal seam industries.

3. Used in chemical and food processing engineering.

4. Used in other solid-liquid separation engineering and environmental protection engineering systems.

Technical parameters:

Model	RSD/ZS103-2000	RSD/ZS103-503	RSD/ZS203
	RSD/FLC2000	RSD/FLC503	RSD/Cobra
sports	linear motion
Screen model (mm)	1053*697		1250*630
Screen area (square meters)	2	3	2.3
screen grid	60~360
Screen installation	Stainless Steel Bolt Tension Device	DERRICK quick tension	wedge compaction
Capacity (length/flat)	50	60	60
Swing Box Protection	Rapid anti-mud device (optional)

Linear motion (it is recommended that customers can adjust to balanced elliptical motion if they have no special needs)

1. The three-screen installation method is optional. These designs are identical to international brands of shale rockers.

2. Advanced oscillation box optimization technology enables the product to achieve extremely high processing performance;

3. The anti-mud splash device is adopted to make the operation more comfortable and maintain a clean working environment.

4. Lead screw type or gantry type machinery and otherscreenbox angle adjustment mode for choice;

Manual screw adjustment Housing screw adjustment Easy lead screw adjustment

5. Fully sealed shaker box structure, ensure no sand leakage in the work and convenient replacement, long service life;
