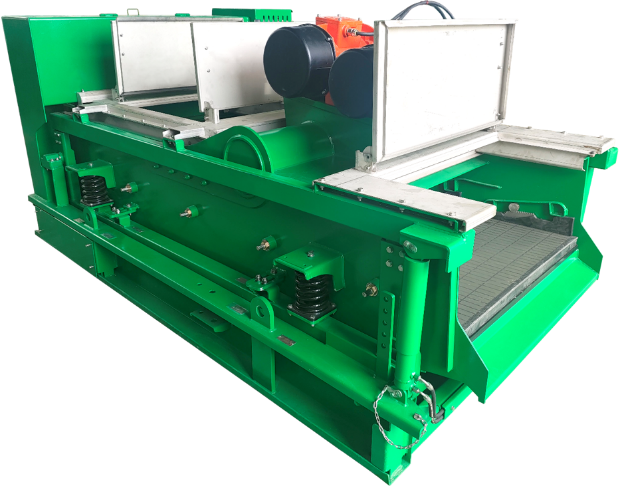

Double-Layer Dual Balanced-Elliptical (Dual-Track) Drilling Shale Shaker

Double-layer double-balanced elliptical (dual-track) drilling shale seismic table

Highlights:

1.Dual balanced-elliptical trajectory: Ensures faster material conveying and larger processing capacity, eliminates screen blinding and blockage. It produces drier cuttings, thus reducing transportation costs.

2.Double-layer synchronous screening: Delivers a larger effective screening area. Combined with patented elliptical technology, its processing capacity is more than twice that of conventional shakers.

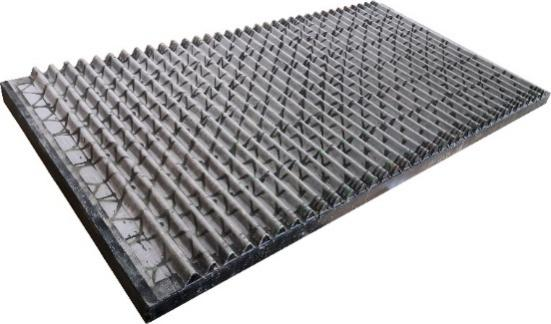

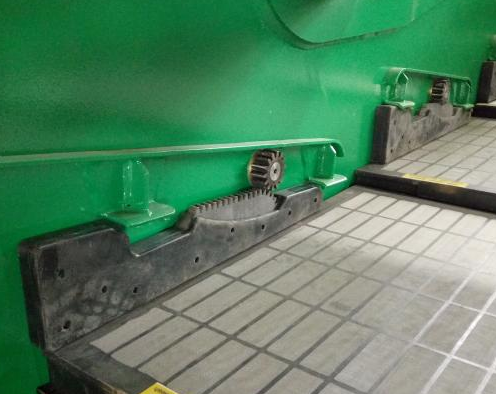

3.Plastic-steel framed steel screen with quick-tensioning design: Allows for fast screen replacement, high structural strength and extended service life.

4.Fully optimized shaker box structure: Further enhances screening

5.Integrated mud splash prevention: Keeps the job site cleaner and operation more hassle-free.

6.Dual-acting hydraulic angle adjustment: Enables faster and easier angle adjustment, offering strong adaptability to various working conditions.performance.

Ⅰ.Oreview

The RSD/BS208 series drilling fluid shaker is ahigh-efficiency double-layer drilling fluid screening equipmentindependently developed by our company. The unit can realize dual balanced-elliptical motion trajectories in both forward and reverse directions, fundamentally solving industry pain points such as screen blinding and sand clogging in traditional screening operations. It significantly improves material discharge speed, greatly enhances processing capacity and screening accuracy, while extending screen service life by 20% and effectively reducing overall equipment and screen operation and maintenance costs.

This series of screens adoptscomposite frame screens, equipped with a press-fit rubber strip full-frame sealing structure, featuring reliable sealing, convenient assembly and disassembly, simple operation and efficient maintenance. The equipment is also standard equipped with aHydraulic Deck angle adjustment systemfor lifting the screen box and aMud Anti-Splash device, which can flexibly adapt to different working conditions, maintain a clean operating environment, and greatly reduce on-site labor intensity.

II.Technical parameters:

III. Features ofDouble-Layer Dual Balanced-Elliptical (Dual-Track) Drilling Shale Shaker

1.Adopts Dual Balanced-Elliptical trajectory technology, effectively improves material conveying speed and equipment processing capacity, fundamentally reduces screen plugging and blinding, enhances cuttings dryness, and lowers later-stage transportation costs.

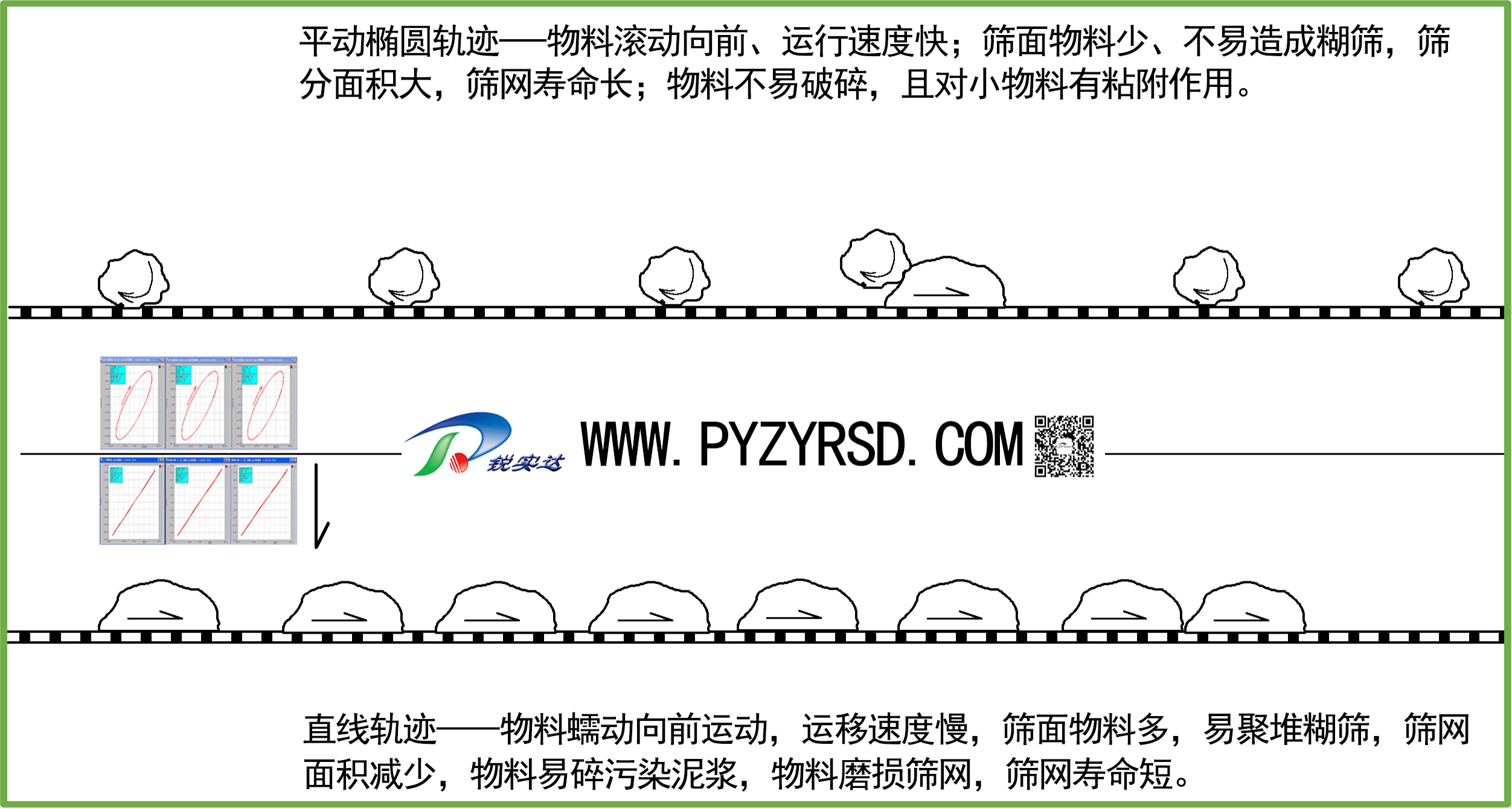

	Schematic Diagram ofRSD's Dual Balanced-Elliptical Trajectory Technology

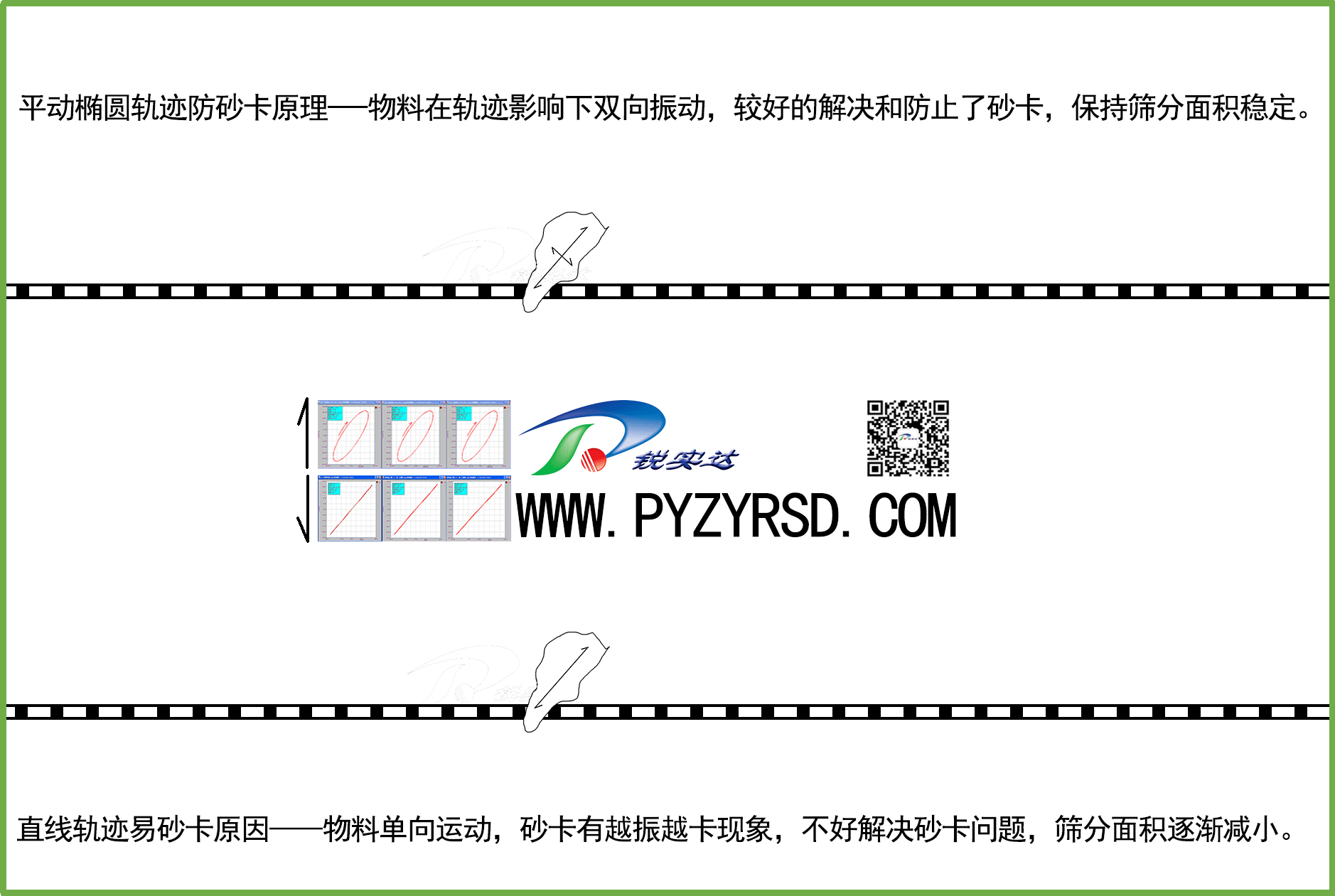

	Animation Demonstration of Sand Block Prevention with Balanced-Elliptical Trajectory

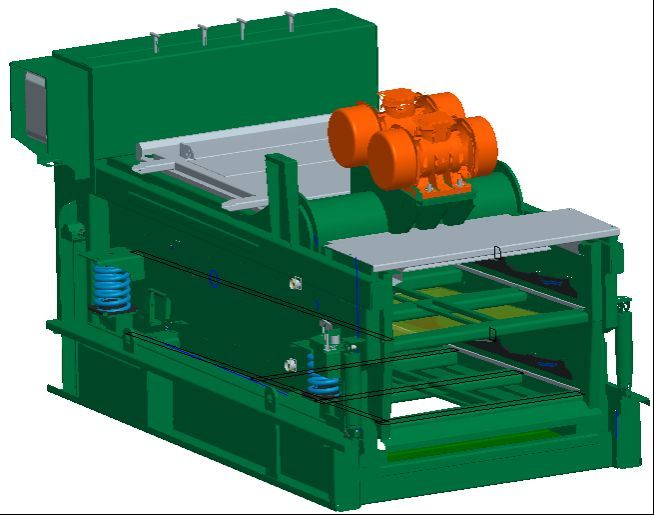

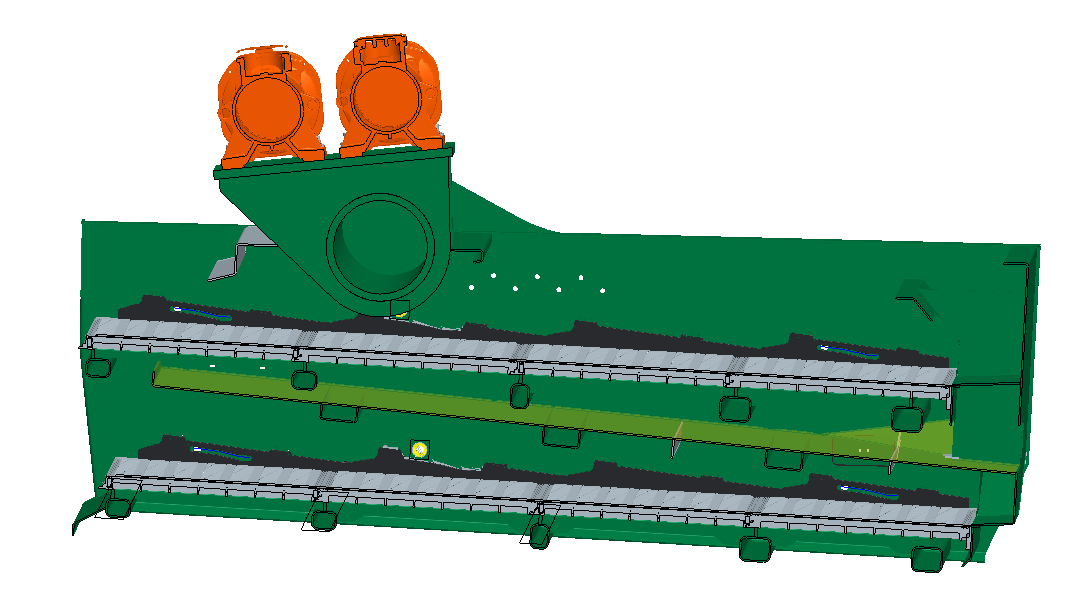

2.Equipped with a dual-layer screening structure, the upper and lower screens operate synchronously, providing a larger screening area. Combined with Dual Balanced-Elliptical technology, the processing capacity can reach more than twice that of conventional shale shakers.

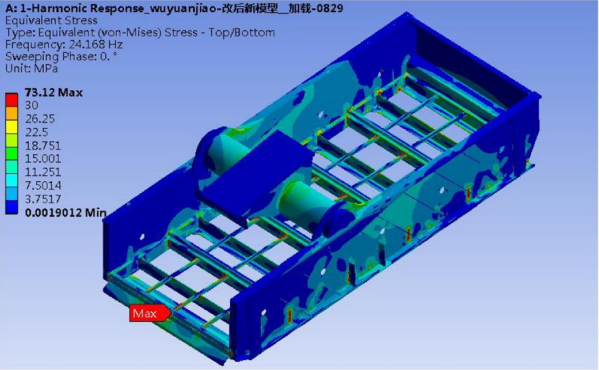

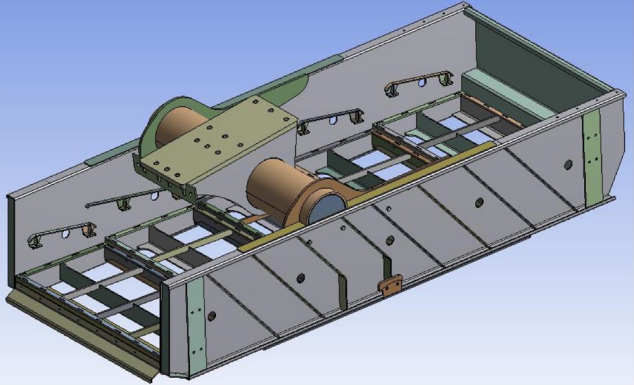

4.Relying on the innovative optimized screen box design, the overall screening performance and operating efficiency of the equipment are significantly improved.

5.Equipped with an integrated mudanti-splash system for the screen box, the working environment is cleaner, and the operation is more labor-saving and convenient.

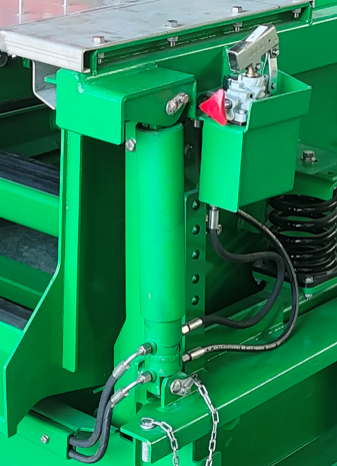

6.Applies double-acting hydraulic screen box angle adjustment technology, enabling faster angle adjustment and easier operation.

IV. On-site Application

V. Benefit Analysis for Customers

VI. Installation Dimension Drawing
