Product Details

Mud cleaner is used as the second and third stage separation equipment of mud recycling system in oil&gas drilling or HDD.
It is used in mining industry,Coal Bed Methane solids-fluids separation and classification.
It is also used environmental engineering and other solids-fluids separation projects.
Different types of vibrating screen can be selected according to user requirements.

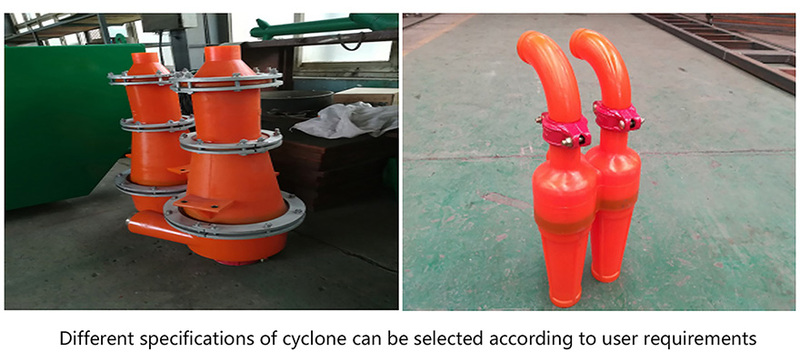

Different specifications of cyclone can be selected according to user requirements.

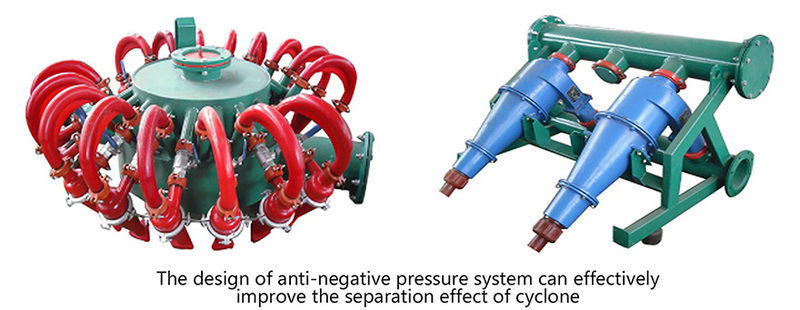

The design of anti-negative pressure system can effectively improve the separation effect of cyclone.

技术特征

Large capacity of sand cleaner, large capacity of mud cleaner and sand and mud cleaner integrated cleaner and other combined forms to choose；
Sieving part adopts balance elliptical motion (liner shaker as required,could equipped with VFD device);
Three deck angle adjustment are optional:Electric,hand-operated and mechanical；
300 mesh screen is applicable with VFD shale shaker for more finer granularity；
Anti-splash plate to keep working site clean.

Technical parameter

Model	RSD/YZS103-102-416		RSD/YBS204（PRO）-102-412		RSD/YBS204-12*4		RSD/YBS204-102-416
Diameter of hydrocyclones（mm）	φ250	φ100	φ300	φ100	φ300		φ300	φ100
Nos.of hydrocyclones（P）	2	12	2	16	4		2	16
Capacity（m³/h）	200~240	180~200	240~280	200~240	300~360		240~280	200~240
Cut point（μm）	50~150	20~100	50~150	20~100	50~150		50~150	20~100
Sand pump power（Kw）	≥55Kw×2		≥55Kw×2		≥75Kw or 55Kw×2		≥75Kw or 55Kw×2
Operating pressure（Mpa）	0.2~0.35（recommend 0.25）
Shale shaker model	Linear motion shale shaker		Dual motion shale shaker			Variable motion shale shaker

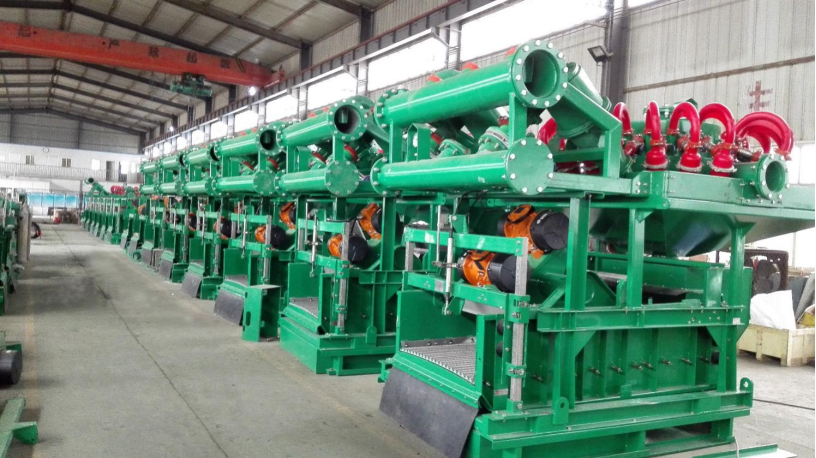

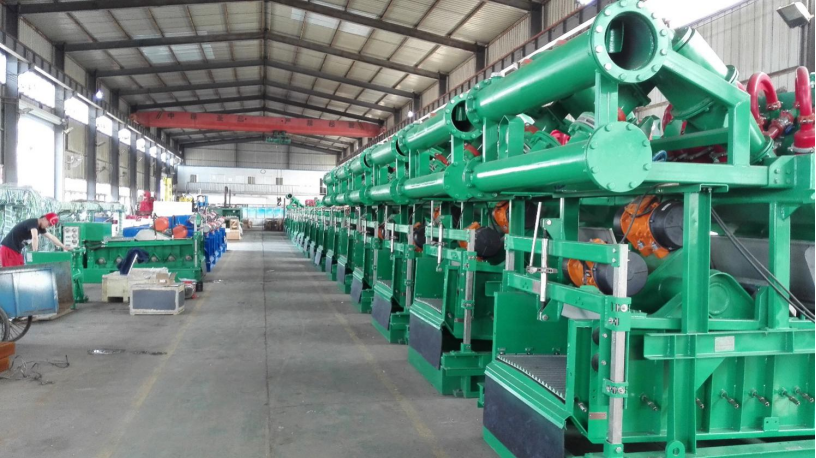

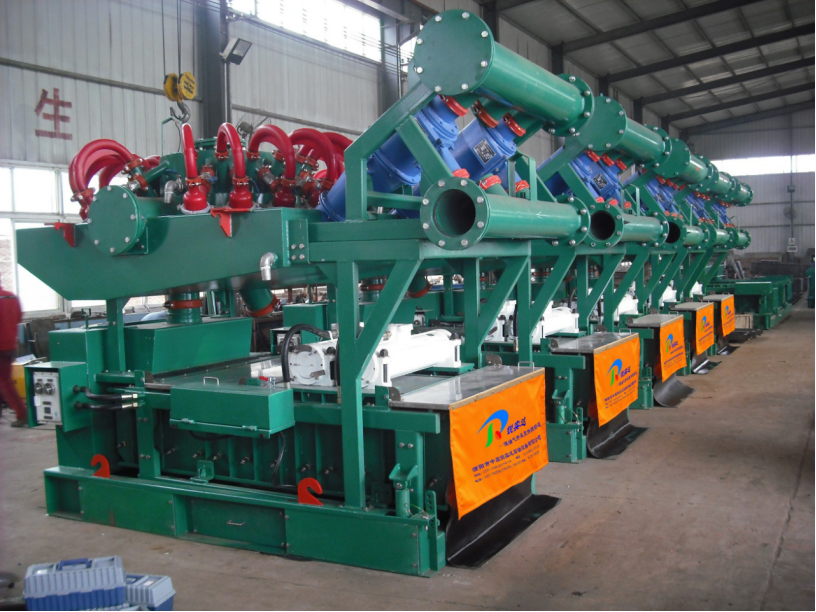

RSD production site
