Centrifuge series

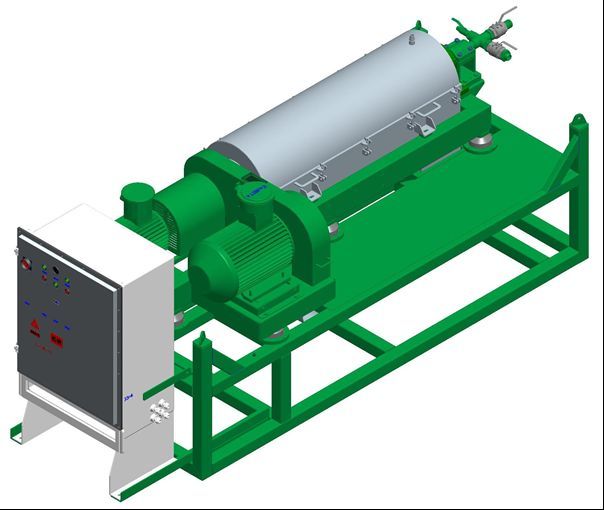

VFD Intelligent Variable Frequency Centrifuge

The VFD intelligent variable frequency centrifuge features three control modes, offering flexible operation and stable performance.

1.Manual mode

The speed and differential speed can be directly set according to the on-site working conditions, and the large and small motors and liquid supply pumps can be started respectively. It is mainly used for equipment fault diagnosis and emergency handling.

2.Automatic mode: Constant torque mode

automatically adjust the differential speed according to the set torque percentage and mud conditions, and simultaneously adapt to the flow rate of the slurry pump, effectively avoiding material blockage and overload.

3.Automatic mode: Constant difference speed mode

automatically adjusts the flow rate of the slurry pump based on the real-time torque and mud conditions, ensuring precise control and stable operation.

The entire system supports online real-time monitoring, which can intuitively display vibration intensity, bearing temperature, and lubricant filling countdown, as well as current overload protection, to ensure safe and reliable operation of the equipment.

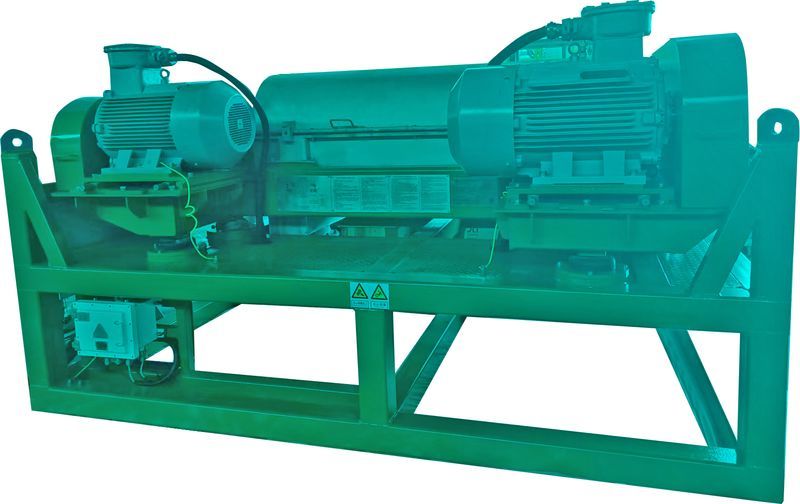

VFD Variable Frequency Centrifuge

Ruishengda VFD variable frequency centrifuges have the following features:

· The motor start and stop are controlled by a frequency converter, and the speed of the drum and pusher can be adjusted steplessly.

· The centrifuge's operating current parameters can be viewed in real time, and it is equipped with an emergency stop button.

· It has overcurrent protection function.

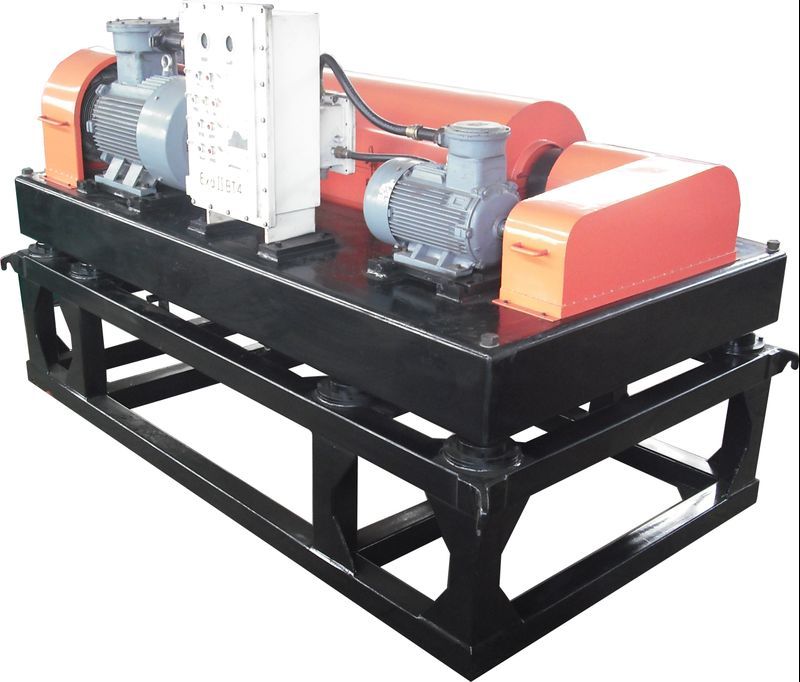

Industrial frequency centrifuge

RSDindustrial frequency centrifuges have the following features:

· The rotational speed can be changed by replacing the drive pulley.

· It is easy to operate and maintain, and different models with different drum speeds and processing capacities can be matched according to the size of the drilling rig and actual needs.

· It has mechanical overload shutdown protection function.

· With its economical configuration, the centrifuge is the preferred choice for conventional drilling mud treatment.

Why choose RSDdrilling fluid centrifuges?

1. Wide range of processing capacities are available, from 40^m³/h to 120 m³h.^/

2. Key components are of reliable quality. All bearings in the drum assembly are genuine products from internationally renowned brands and have a long service life.

3. The propeller has hard alloy plates, which have a long service life and are easy to maintain.

4. The slag discharge port uses a high-hardness ceramic sleeve, which is easy to replace.

5. After analysis by ANSYS, it was confirmed that the strength is sufficient.

6. The control system is comprehensive, featuring intelligent frequency conversion, three-frequency conversion, and mains frequency.

7. Each centrifuge is equipped with overload protection, and the mechanical protection device is recalibrated, making maintenance simple.

8. Each centrifuge undergoes a clean water test within the factory, and the first centrifuge undergoes a mud test to verify and confirm its performance.

Client Cases

Why choose RSD?

See the video for details. The equipment will be tracked and confirmed both inside and outside the factory before it is sold.
