Fully Automatic Cold Steel Strip Profile Used C Z Purlin Roll Forming machine
-
Supplier: Shijiazhuang Zhouming Trading Co., Ltd. -
Region: Hebei, China -
Contact: Ms candy ji -
Price: $6000.00 /set -
Min. Order: 1 set
| Controlling system: | PLC control; | Condition: | New; |
| Power(W): | 5.5KW; | Key Selling Points: | High-accuracy; |
| Type: | Steel Frame & Purlin Machine; | Thickness: | 0.3mm~0.8mm; |
| After-sales Service Provided: | Online support,Free Spare Parts,Video technical support; | Supply Ability: | 5 Set/Sets per Month; |
| Place of Origin: | China; | Payment Terms: | L/C,T/T,Western Union,Trade AssurANCE; |
| Applicable Industries: | Construction works ; | Electric tension: | 380V 3phase 50HZ; |
| Packaging Detail: | standard exporting package for container(packing with wire steel,plastic film to protect the machine); | Port: | TIANJIN XINGANG; |
| Material of cutting blade: | Cr12 quenched; | Suitable material: | Color steel sheet , galvanized steel sheet,; |
| Brand Name: | zhouming; | Production Capacity: | 10-15m/min; |
| Certification: | BV SGS; | Voltage: | 380v,50-60hz or at buyer's requrement; |
| Main motor power: | 5.5KW with Cycloidal reducer; | Hydraulic station power: | 11KW; |
| Weight: | 6tons; | Warranty: | 1 Year; |

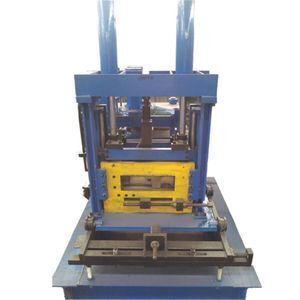

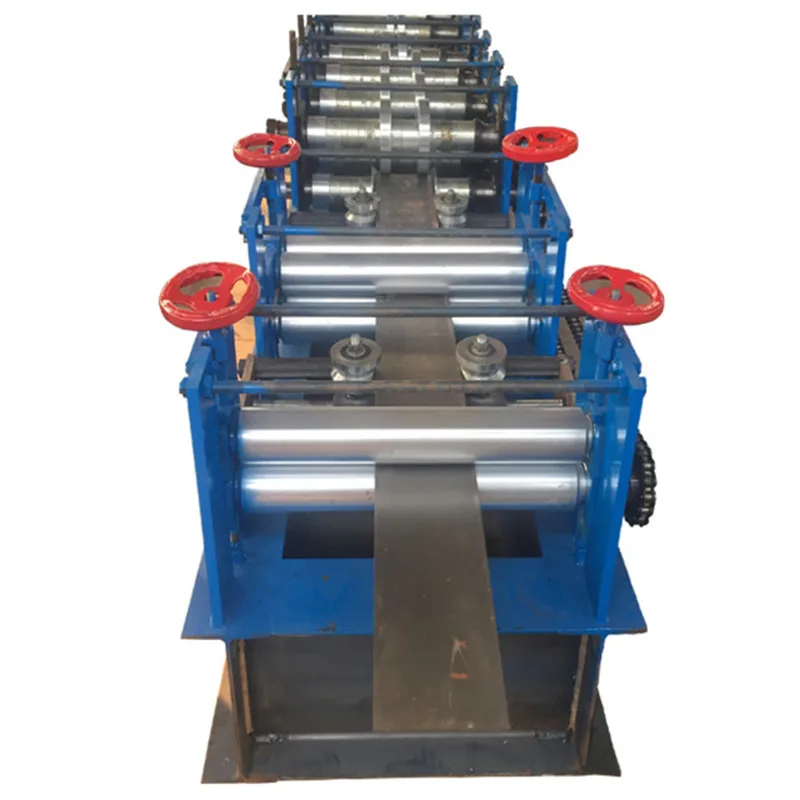

Fully Automatic Cold Steel Strip Profile Used C Z Purlin Roll Forming machine
| Hydraulic wring C/Z purlin roll forming machine | ||
| Items | Specifications | |
| Material of coil | Material Thickness | 2.5-3mm |
| Main frame | Material | 400H-beam steel |
| Wall plate | welded steel plate | |
| Reducer | 8# cycloid reducer | |
| De-coiler | Weight | 3 ton manual decoiler |
| Roll Forming system | Rolling Speed | 0-12 m/min |
| Roller Stations | About 14 stations forming | |
| Roller Material | GCR15 steel with Hard chromium plated on the surface | |
| Diameter of shaft | 80 solid | |
| Shaft Material | 45# Steel Diameter 80mm shaft | |
| Maim Motor Power | 15 kw | |
| Hydraulic cutting Power | 5.5 kw | |
| Cutting | Material Of Cutting | CR12 with quench treatment |
| Tolerance | ±1mm | |
| Cutting blade | hydraulic shearing | |
| Electrical control system | Electric Source | 380V, 50HZ, 3phase |
| Control System | PLC(Delta) with touch screen | |
| Weight | About 6 tons | |
| Way Of Drive | By chain(2.0 inch) link bearing model 6210 | |
| Size of machine | 8.2m*1.2m*1.2m | |
Q1:What is the MOQ?
A:For roll forming machine,the MOQ is one set.
Q2:Could you design the machine for me?
A:Yes,we have professional team of engineers and are able to design and product roll forming machine as your requestment. Or if you have own drawings,we can design it as your drawings.
Q3:Are you trading company or factory?Can we visit your factory?
A:We have our own production line and factory.Warmly welcome to our factory. Once we have your schedule, we will arrange the professional sales team to follow up your case.
Q4: What's your after-sale service?
A: We'll provide engineer overseas service to help you install and debug the machine,in addition,free replacement of parts in one year warranty.
Q5: How is your Payment Term?
A:T/T,L/C ,Western Union
Q6: What’s your delivery time?
A:Normally it is about 45 days, but we will delivery as soon as possible
Q7:How about the trade terms?
A:EXW,FOB,CFR,CIF will be accepted.
Q8:Do you accept private label? Customize logo printed or package ?
A:Yes,they are all welcome as your request.
-
