VSI 7611 Artificial Sand Making Plant Plaster Producing Machine for Making Sand

Supplier: Jiangxi Walker Machinery Co., Ltd.
Region: Jiangxi, China
Contact: Mr James Lee
Price: $18000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Price:	Negotiatable;	Place of Origin:	Jiangxi China;
After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Dimension(LWH):	370021502100 mm;
Weight:	11.8 t;	Power(W):	110 KW;
Key Selling Points:	Energy saving;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Best Feed Size:	30 mm;	Brand Name:	JXSC;
Applicable Industries:	Building Material Shops,Construction works ,Energy & Mining;	Power Soppty:	380V 50HZ;
Port:	Xiamen/ Shenzhen/ Guangzhou/ Shanghai;	Supply Ability:	200 Set/Sets per Month machine for making sand;
Power for Double Motor:	110 kw;	Warranty:	1 Year;
Certification:	CE, ISO, SGS;	Packaging Detail:	1.Standard parts packed in the wooden cases. 2.Big parts packed by plastic membrane. 3.The whole machine is loaded in the container.;
Product name:	Sand Making Plant;	Material:	Hard material;
Model:	VSI7611;	Capacity:	120-180 t/h;
Rotation Speed:	1700-1890;	Condition:	New;
Voltage:	380V;	Keyword:	machine for making sand;

Product Description

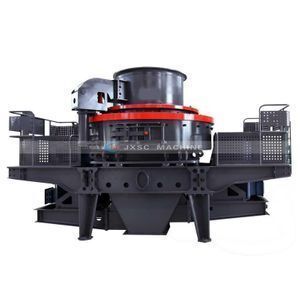

VSI 7611 Artificial Sand Making Plant Plaster Producing Machine for Making Sand

Product Introduction:

VSI sand maker is high performance sand making equipment with foreign technology. It is the perfect combination of unique design of rotor structure, wear-resisting material process, crushing speed optimization and hydraulic design. It Is a model of professional fine grinding technology and machinery manufacturing, and also is a fully reflection of the new technology and new process.

This machine is designed to make high quality sand for highway, high-speed railway, high-rise buildings, municipal engineering, hydropower dam construction and aggregate concrete mixing station. Its the best choice in the field of artificial sand and stone plastic equipment.

Application Field:

Quarry, sand concrete, dry mortar, manufactured sand, power plant desulfurization, quartz sand, etc.

Democratic VSI Sand Maker

VSI Sand Maker is high performance sand making equipment with foreign technology.

India Sand Maker

Our sand maker is the perfect combination of unique design of rotor struture, wear-resisting material process, crushing speed optimization and hydraulic design.

Uganda Gravel Sand Making Line

VSI Sand maker is a model of professional fine grinding technology and machinery manufacturing, and also is a fully reflection of the new technology and new process.

Mozambique Sand Making Line

Sand maker is designed to make high quality sand for highway, high-speed railway, high rise buildings, municipal engineering, hydropower dam construction and aggregate concrete mixing station.

Suitable Material:

Cobble, granite, basalt,iron ore, limestone, calcite, quartzite, diabase, etc.

Performance characteristics of our products:

1.     The crushing cavity internal items can be changed or repaired easily and fast,because of adopting hydraulic drive cover device.
2.     With the unique feeding crusher structure, it is convenient to realize the"stone crushing stone" and "stone crushing metal", can crush and shaping stones.
3.     With the unique dust proof sealing system, completely avoid the external dust into the lubricating parts.
4.     High quality materials and advanced technology, improve the equipment quality and appearance, low failure rate to ensure.
5.     The best design of crushing cavity, prolong the service time of wearing parts and reduce the cost.

Product Details

Specification Parameter

Model		VSI7611	VSI8518	VSI9526	VSI1140	VSI1145
Capacity (T/H)	Center And Ring Feeding	120-180	200-260	300-380	450-520	500-640
Capacity (T/H)	Center Feeding	60-90	100-130	150-190	225-260	250-360
Best Feed Size (MM)	Soft Material	35	40	45	50	50
Best Feed Size (MM)	Hard Material	30	35	40	45	45
Rotation Speed (R/MIN)		1700-1890	1520-1690	1360-1510	1180-1310	1200-1390
Power For Double Motor (KW)		110	180	264	400	440
Dimension L×W×H (MM)		3700×2150 ×2100	4140×2280 ×2425	4560×2447 ×2778	5000×2700 ×3300	5100×2790 ×3320
Weight (t)		11.8	14.5	17.8	25.6	26
Power Soppty		380V 50Hz
Vibrating Sensor		Monitering Range:0.1-20MM/S Continuousely Adjustable
Lubrication Hydraulic Station	Dual Oil Bump Motor Power	2×0.25kW
	Security Protection	Double Oil Pump Ensure The Normal Oil Supply;Automatic Shut Down If No Oil Pressure;Water Cooling;Motor Preheating In Winter.
	Over Dimension L×W×H(mm)	820×520×1270
	Oil Tank Heating Power	2KW

More Model Please Contact Us,the Model Also Can Be Customized

Compund Cone Crusher

Single-cylinder Hydraulic Cone Crusher

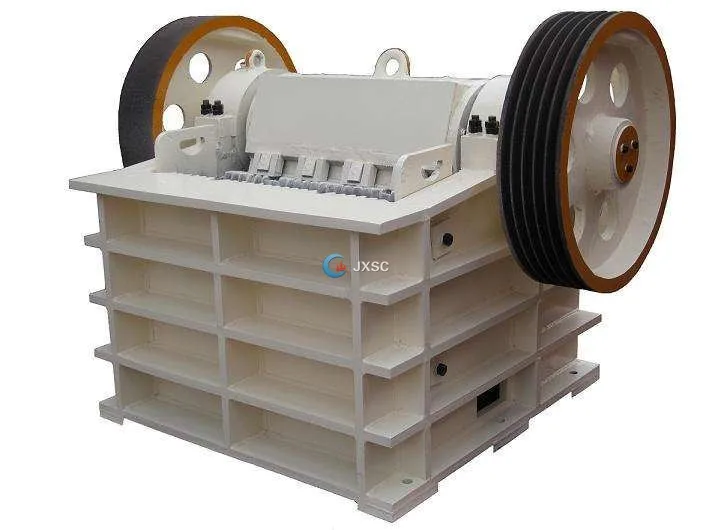

Jaw Crusher

Impactcrusher

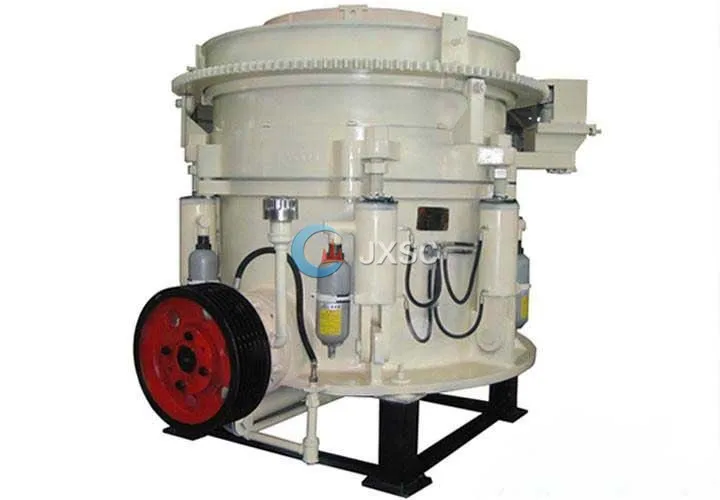

Multi-cylinder Hydraulic Cone Cruhser

Mobile Crushing Plant

Certification

Packing & Delivery

Ways of Packing
1	Standard Parts Packed in the Wooden Cases
2	Big Parts Packed by Plastic Membrane
3	The Whole Machine is Loaded in the Container

Shiping by Sea/Air Freight

or Any Way the Customer Requires

About Company

Jiangxi shicheng Mine Machinery Factory was established in 1985, it's a professional machinery factory special in mining equipment research, manufacturing, sales and offers professional mine processing plant work flow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory.

Our products are exported to Africa,Nigeria,Zambia,Zimbabwe,Congo,Uganda,Mozambique,Angola,Southeast Asia,South America and many other countries and regions.We are committed to creating high quality and efficient crushing and screening equipment,quality is our eternal pursuit and responsibility.

Our Workshop

Successful Cases

Our Customers

Our Services

●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

●Sales service: Send technicians to the jobsite guiding the installation and adjustment, training operators and finishing the check and accept together with you.

●After-sales service: To establish long term friendship, we will reg-ularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.

●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.

FAQ

1.How is the quality of your products?(mining equipment/machine)

Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.

2.How about the Guarantee:

Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.

3.What is the price?

Answer: It's different from each machines, trommel scrubber, trommel screen, shaking table, jig machine separator, centrifugal concentrator, spiral chute, vibrating feeder, cone crusher, jaw crusher, impact crusher, sand making machine etc. For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.

4.If you can help to make the flowchart?

Answer: Yes, sure. We'de will to make the flowchart design accroding to each clients mineral situation, totally for FREE!

Moreover, our engineer can go abroard guiding the installation.

5.Service and Payment Terms?

Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.de bottle oil bottle cosmetics, wide-mouth
