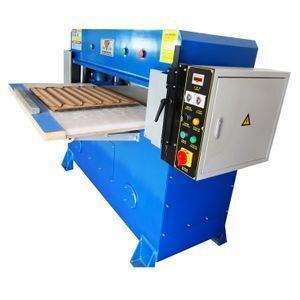

hydraulic Raw Material rubber cutting machine

Supplier: Guangdong Honggang Intelligent Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Mandy Chen
Price: $3900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Suitable for material:	cardboard/EVA Foam/fabric/paper;	Stroke:	50-240mm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Power(W):	2.2KW;
Warranty:	1 Year;	Condition:	New;
After-sales Service Provided:	Field maintenance and repair service,Video technical support,Field installation, commissioning and training,Online support;	Dimension(LWH):	233013201260MM;
Weight:	1900KG;	Certification:	CE;
Port:	guangzhou,shenzhen;	Working mode:	cutting by die/mould;
Cutting area:	1220610mm or 1600610mm or Costomize;	Color:	Blue;
Voltage:	220V/380V/415V;	Model Number:	HG-B30T;
Packaging Detail:	rubber cutting machine 1,Standard export wooden case with plastci film. 2,as customer's request.;	Product name:	rubber cutting machine;
Supply Ability:	100 Set/Sets per Week rubber cutting machine;	Place of Origin:	Guangdong China (Mainland);
Cutting force:	30tons;25-100tons or Costomize;	Feeding side:	automatic,double,or as request.;
Columns:	four;	Payment Terms:	L/C,T/T,Western Union;
Brand Name:	HONGGANG;

hot sale plane hydraulic Raw Material rubber cutting machine

Product Description

Parameter
	Power	2.2KW
	Voltage	220V/380V/415V
	Cutting Area	610×1600 or 610×1220 MM
	Stroke	50-240MM
	Dimensions	2330×1320×1260 MM
	Cutting Force	25-300tons;optional
	Net Weight	1900KG
	Control	Manual or By computer, Electrical box,PLC
	Max.Cutting Depth	240MM

1.Double-cylinders,four-columns,self-balancing connecting rod which can maintain equal pressure of each position.

hot sale plane hydraulic Raw Material rubber cutting machine
2.Series B machine has the long-stroke setting for adopt to the jumbo-size materials and high knife mould cutting.

hot sale plane hydraulic Raw Material rubber cutting machine
3.When the upper board pressure down and contact to the blade,automatically,it can cut slowly,so that there is no size error between the top and the bottom materials.

hot sale plane hydraulic Raw Material rubber cutting machine
4.The unique setting construction,combine with the cutting knife and cutting height which stroke simple and accurate.

hot sale plane hydraulic Raw Material rubber cutting machine
5.Central automatic lubrication systems can ensure precision and durability of the machine.

hot sale plane hydraulic Raw Material rubber cutting machine
6.More economical and 2 or 3 times improving producting capacity.

Model. No	HG-A30T	HG-B30T	HG-A40T	HG-A50T
Cutting force	30 tons	30 tons	40 tons	50 tons
Dimension (LWH)	233013201260 mm	195013201260 mm	233013201260 mm	233013201260 mm
Stroke	50-160mm	50-240mm	50-160mm	50-240mm
Area of Work Table	610mm*1600mm	6100mm*1220mm	610mm*1600mm	610mm*1600mm
Main Motor Power	2.2KW	2.2KW	4KW	4KW
Weight	1900KG	2000KG	2500KG	2900KG
