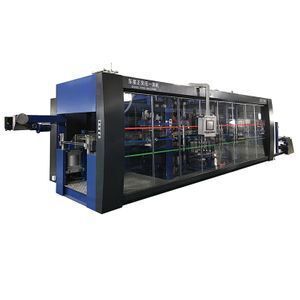

Automatic cups/boxes/plates/containers Plastic Thermoforming machine

Supplier: Guangdong Honggang Intelligent Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Mandy Chen
Price: $120000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Heat Furnace size:	7800*2600mm(top+bottom);	Supply Ability:	30 Set/Sets per Month Plastic Thermoforming Machine;
Name:	Plastic Thermoforming Machine;	Voltage:	220V/380V/415V;
Packaging Detail:	Plastic Thermoforming Machine 1,Standard export wooden case with plastci film. 2,as customer's request.;	Weight:	8T-20T;
Warranty:	1 Year;	Product Type:	Plastic Cup;
mold:	forming mold and cutting mold;	Condition:	New;
Processing Type:	Plastic Thermoforming Machine;	Warranty:	1year;
Certification:	CE;	Application:	Plastic cups/boxes/plates/containers;
Applicable Industries:	cups/boxes/plates/containers Plastic;	Brand Name:	HONGGANG;
Place of Origin:	Guangdong China;	Dimension(LWH):	1100023002600mm;
Forming speed:	12-20 stroke/minute;	Forming area:	710850120mm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Payment Terms:	L/C,T/T,Western Union;
Power(W):	15KW-38KW;	Port:	guangzhou,shenzhen;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service;

Automatic Plastic cups/boxes/plates/containers Plastic Thermoforming machine

What application of our plastic thermoforming machine?

1. application

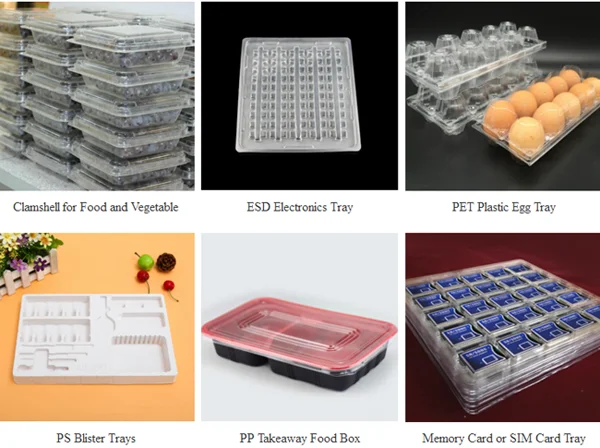

This thermoforming machine used for producting high demand of disposable fresh/fast food,fruit plastic cups,boxex,plates,container,and pharmaceutical,wine,electrical blister packaging,PP,PS,PET,PVC,OPS plastic sheet etc.

What Description of our plastic thermoforming machine?

2. Features and Advantages

1. Fully servo driven machine.no noise.no vibration,forming good and fast.
2. Fully machine in compact structure,taking small floor space;
3. Can be adapted to a variety of materials,and the products thicker 8% than the average machine products.
4. Furnaces automatic removal device,can be turned down at any time during production without breaking the sheet.reaching without wasting materials;

5. Electric furnace temperature control system uses intelligent automatic compensation control,a control,a control of a regulator,easy to adjust the temperature uniformity,easy to use,simple,fast heating,low temperature three times up and down the oven roast slices.
6. Forming,cutting die servo-driven,two-way adjustable for upper and lower mold stroke,in which the upper mold electric adjustable in clamping direction. The upper and bwer molds height position can be adjusted conveniently and fast under the clamping state;lower mold in clamping direction readily accessible buffer,increasing the clamping speed,avoiding shock.
7. Auto cutting,auto counting,auto transmission by PLC.
8. Labor saving,only 1-2 workers packing.

Plastic Thermoforming Machine

3. Main function

1.positive and negative pressure forming device.
2.vacuum forming device.
3.touch screen computer temperature module point to point control function.
4.air control device.
5.cooling device.
6.die, mold temperature control function.
7.automatic punching and cutting function.
8.automatic stack counting function.
9.edge automatic rewinding function.
10.safety protection device.

Plastic Thermoforming Machine

4. Specification

specification:
Forming area:	710×850×130 mm (WLH)
Forming speed:	12-20 stroke/minute
Machine size:	11000×2300×2600 mm (LWH)
Heat Furnace size:	7800×2600 mm (Three pieces ofbaking sheet)
configuration:
Pulling:	Delta servo driver
temperature control:	Delta temperature controlling moduls
Oil pump:	Germany Rexroth
Oil valve:	Germany Rexroth
Circuit:	Japan Fuji
Touch screen:	Delta
Transmission:	Imported from Japan
Electric control:	Delta,IDEC
Vacuum system:	Germany imported vacuum pump
